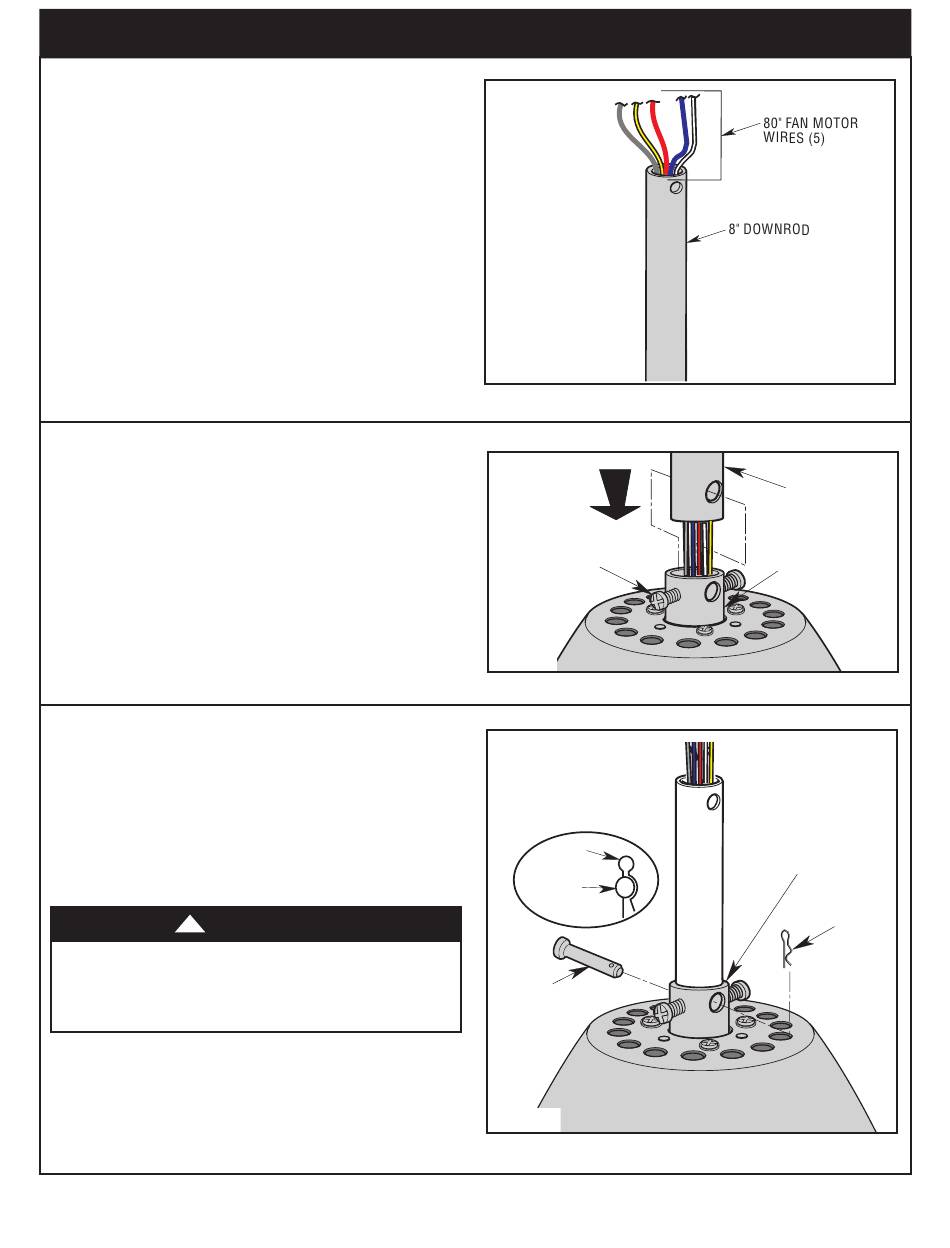

3. Ceiling Fan Assembly
3.6
Separate, untwist and unkink the Five 80" Motor Wires.
Route the Five 80" Motor Wires through the 8" Downrod
(Figure 6).
3.7
Loosen the two Phillips Head Set Screws in the Motor
Coupler for installation of the Downrod (Figure 7).
Seat the Downrod in the Motor Coupler (Figure 7).
Rotate and align the Downrod holes with the two holes
in the Motor Coupler (Figure 7).
3.8
Slide the Clevis Pin through the Motor Coupler holes.
Install the Hairpin Clip through the Clevis Pin holes to
secure (Figure 8).
NOTE: The Clevis Pin must go through the holes in
the Motor Coupler. It is critical that the Clevis Pin is
properly installed and secure.
WARNING
!
It is critical that the clevis pin and hairpin clip in the
motor coupler are properly installed and secured.
Failure to verify that the pin is properly installed could
result in the fan falling.
(Continued)
Figure 6
LOOSEN
PHILLIPS HEAD
SET SCREWS (2)
Figure 7
HAIRPIN
CLIP
CLEVIS
PIN
CLEVIS
PIN
Figure 8
7
8"
DOWNROD
MOTOR
COUPLER
MOTOR
COUPLER
