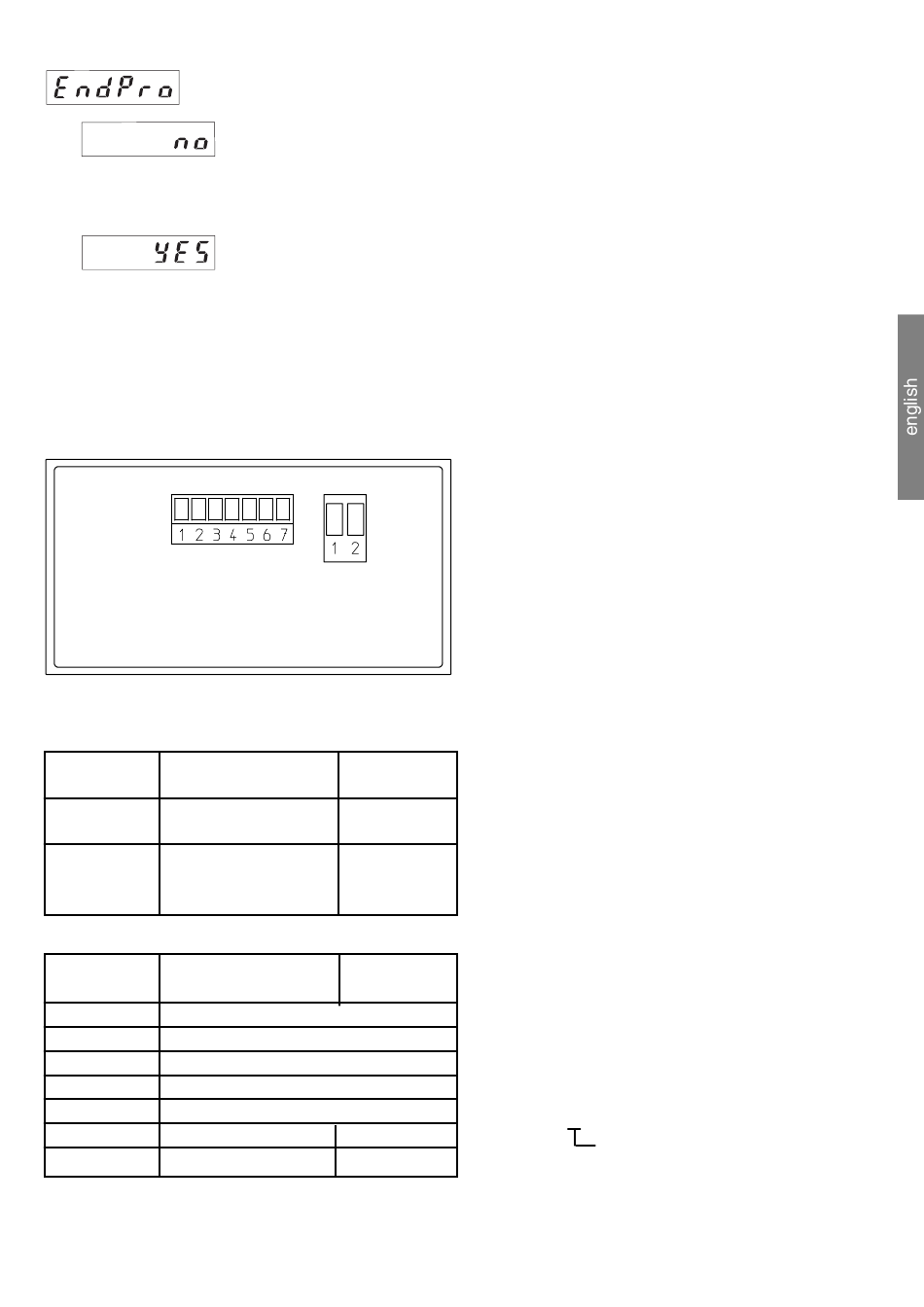

4.5 End of programming
5. Terminal assignment
5.1 Terminal assignment X2
Terminal no.
AC version
1
Supply voltage
90..260 VAC
2
Supply voltage
90..260 VAC
5.2 Terminal assignment X1
Terminal no.
AC version
1
n.c.
2
n.c.
3
RESET
4
n.c.
5
INP
6
GND out
7
+24 V out
Programming routine will
be passed through once
again. All parameters can
be checked.
Programming routine will
be left and the new
parameters will be stored.
Afterwards the device is
ready to use.
X1
X2
10..30 VDC
version
0 VDC
GND
Supply
voltage
10..30 VDC
10..30 VDC
version
nc.
nc.
6. Technical data
Supply voltage:
Version 1: 90..260 VAC, max. 6 VA
Version 2: 10...30 VDC, max. 50 mA
Display:
6digit LED-Display, 14.2 mm character height
Polarity of input signals:
programmable for inputs in common (npn or pnp)
Input resitance: appr. 10 k
Count frequency:
20 kHz can be damped to 30 Hz
Min. pulse length of the reset input: 5 ms
Input sensitivity:
AC supply
log. „0": 0..4 VDC
log. „1": 12..30 VDC
DC supply
log. „0": 0 VDC..0,2xU
log. „1": 0,6 x U
Pulse shape: variable (Schmitt Trigger
characteristic)
Data retention:
via EEPROM 1x10
6
memory cycles or 10 years
Sensor supply voltage:
+24 VDC ± 15 % / 100 mA with AC power supply
Noise immunity:
EN 50081-2; EN 55011 class B; EN 50082-2
Ambient temperature: -10 °C...+50 °C
Storage temperature: -25 °C...+70 °C
Weight: appr. 150 g
Protection: IP 65 (front)
Cleaning:
The front of the unit is only to be cleaned with a
soft wet (water !) cloth.
7. Delivery includes:
- Codix 540
- Panel mounting clip
- Sealing
8. Ordering code:
6.540.012.X00
Voltage supply
0 = 90..260 VAC
3 = 10..30 VDC
W
B
..30 VDC
B
5
