9.4.1 - Mode 1 memorisation

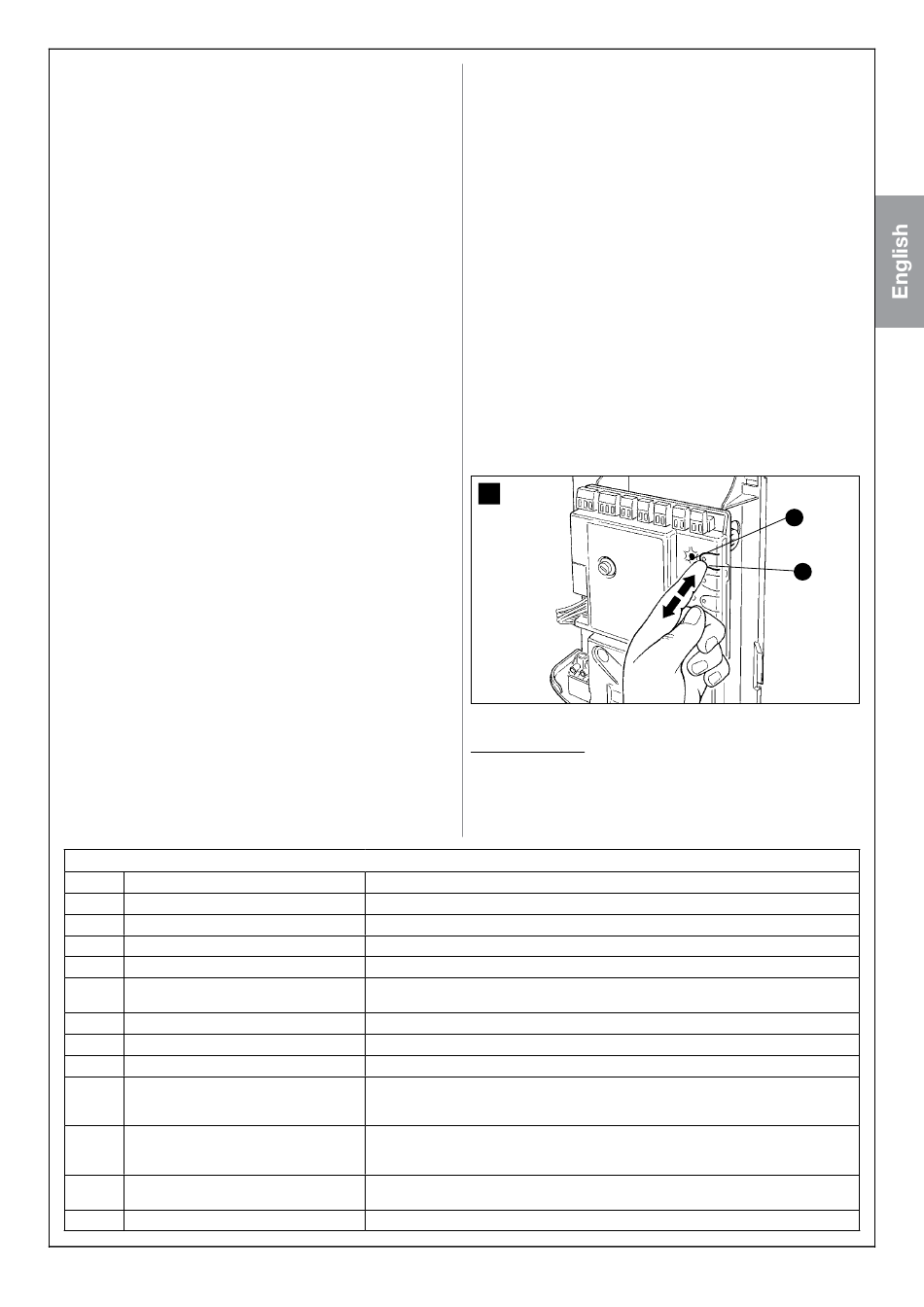

01. Press P1 [B] (fig. 41) for at least 3 s. When the LED P1 [A] (fig. 41)
lights up, release the key.
02. Within 10s, press any key on the radio transmitter to be memorised
and hold it down for at least 3s. If the procedure was memorised cor-
rectly, the P1 LED will flash 3 times.
03. If there are other transmitters to memorise, repeat step 2 within
another 10 seconds; otherwise, the memorisation phase will stop
automatically.
9.4.2 - Mode 2 memorisation
With memorisation of the radio transmitter in Mode 2, each key can be
associated with any of the commands listed in table 9.
In Mode 2 each key requires its own memorisation phase.
01. If the transmitter to be memorised is already memorised (this is the
case with the supplied transmitters that are already stored in mode
I) you must first delete the transmitter by performing the procedure
described in: "9.4.4 - Deleting a radio transmitter".
02. Press P1 [B] (fig. 41) on the control unit, the same number of times
as your desired command, as shown in Table 9 (e.g. 3 times for the
"Open Only" command).
03. Check that LED P1 [A] (fig. 41) emits a number of quick flashes
which are equal to the selected command.
04. Within 10 seconds press the desired button on the transmitter to be
memorised, holding it down for at least 2 seconds. If the procedure
was memorised correctly, the P1 LED will flash slowly 3 times.
05. If there are other transmitters to memorise for the same command
type, repeat step 03 within another 10 seconds; otherwise, the mem-
orisation phase will stop automatically.
9.4.3 - "Remote" memorisation
You can store a new radio transmitter in the control unit, without pressing
its keys directly. A previously memorised and operational "OLD" transmit-
ter must be available. The "NEW" radio transmitter to be stored will "inher-
it" the characteristics of the OLD one; that is, if the OLD radio transmitter
is memorised in mode 1, the NEW will be memorised in mode 1; in this
case, during the programming phase, any key can be pressed on either
of the two transmitters. If, on the other hand, the OLD radio transmitter
is memorised in Mode 2, you must press the key with the command you
want on the OLD transmitter, and on the NEW, the key to which you want
to associate that command.
Holding the two transmitters, position yourself within the operating range
of the automation and perform the following operations:
01. Press the key on the NEW radio transmitter and hold it down for at
least 5s, then release it.
02. Press the button on the OLD radio transmitter 3 times slowly.
03. Press the key on the NEW radio transmitter once slowly.
At this point, the NEW radio transmitter will be recognised by the control
unit, and take on the characteristics that the OLD one had.
If there are other transmitters to memorise, repeat all the above steps for
each new transmitter.
1 time "Step-by-Step (SbS)" command
2 times "Pedestrian opening" command
3 times "Open only" command
4 times "Close only" command
5 times "Stop" command
6 times "Apartment block Step-by-Step" com-
mand
7 times "High priority Step-by-Step" command
8 times "Pedestrian opening 2" command
9 times "Pedestrian opening 3" command
10 times "Open + lock automation" command
11 times "Close + lock automation" command
12 times "Lock automation" command
13 times "Release automation" command
9.4.4 - Deleting a radio transmitter
If you have available only one radio transmitter, use this operation to
delete it.
If the transmitter is memorised in Mode 1, one deletion phase is sufficient
and at point 3 you may press any key. If the transmitter is stored in mode
2, a deletion phase is required for each memorised key.
01. Press the P1 key [B] key (fig. 41) on the control unit and hold it down.
02. Wait until the LED P1 [A] (fig. 41) lights up, within three seconds.
03. Press the key of the radio transmitter to be deleted for at least three
seconds. If cancellation was successful the LED P1 will flash quick-
ly five times. If LED P1 emits 1 slow flash, the deletion phase was
unsuccessful because the transmitter is not memorised.
04. If there are other transmitters to delete, keeping P1 depressed, repeat
step 3 within another 10 seconds; otherwise, the deletion phase will
stop automatically.
9.4.5 - Deleting all memorised radio transmitters
This operation deletes all memorised transmitters.
01. Press the P1 key [B] key (fig. 41) on the control unit and hold it
down.
02. Wait until the P1 LED [A] (fig. 41) lights up, then wait until it goes off,
then wait until it has flashed 3 times.
03. Release button P1 exactly during the third flash.
04. Wait for around 4s for the deletion phase to finish; during this time the
LED P1 will flash very quickly.
If the procedure is successful, after a few moments the P1 LED will flash
slowly 5 times.
41
9.4.6 - Digital selector switch DS100 programming and deletion
Mode 1 memorisation – with this memorisation, the commands that can be
sent by pressing the A, B or C buttons on the DS100 selector switch are:
- key A - "Step-by-Step (SbS)" command,
- key B - "Pedestrian Opening" command,
- key C - "Open Only".
TABLE 9
Commands the automation as described in table 4 (Step-by-Step function)
Causes partial opening of one or two leaves as described in table 3 (Pedestrian Opening
Causes the leaves to open (open - stop - open etc.)
Causes the leaves to close (close - stop - close etc.)
Halts the manoeuvre
The command has no effect on opening, when closing the command causes the move-
ment to reverse, that is, opens the leaves
Works also when the automation is locked
Causes partial opening of leaf M2, equal to halfway
Causes partial opening of both the leaves, equal to halfway
Causes an opening manoeuvre and when this is complete, the automation is locked; the
control unit will not accept any command other than "High priority Step-by-Step" and
"Release" of the automation
Causes a closure manoeuvre and when this is complete, the automation is locked; the con-
trol unit will not accept any command other than "High priority Step-by-Step" and "Release"
of the automation
Causes a halt of the manoeuvre and locks the automation; the control unit will not accept
any command other than "High priority Step-by-Step" and "Release" of the automation
Causes automation release and reset to normal operation
A
B
