Jacuzzi J-400 Manuel D'installation Et Utilisation Et Entretien page 99

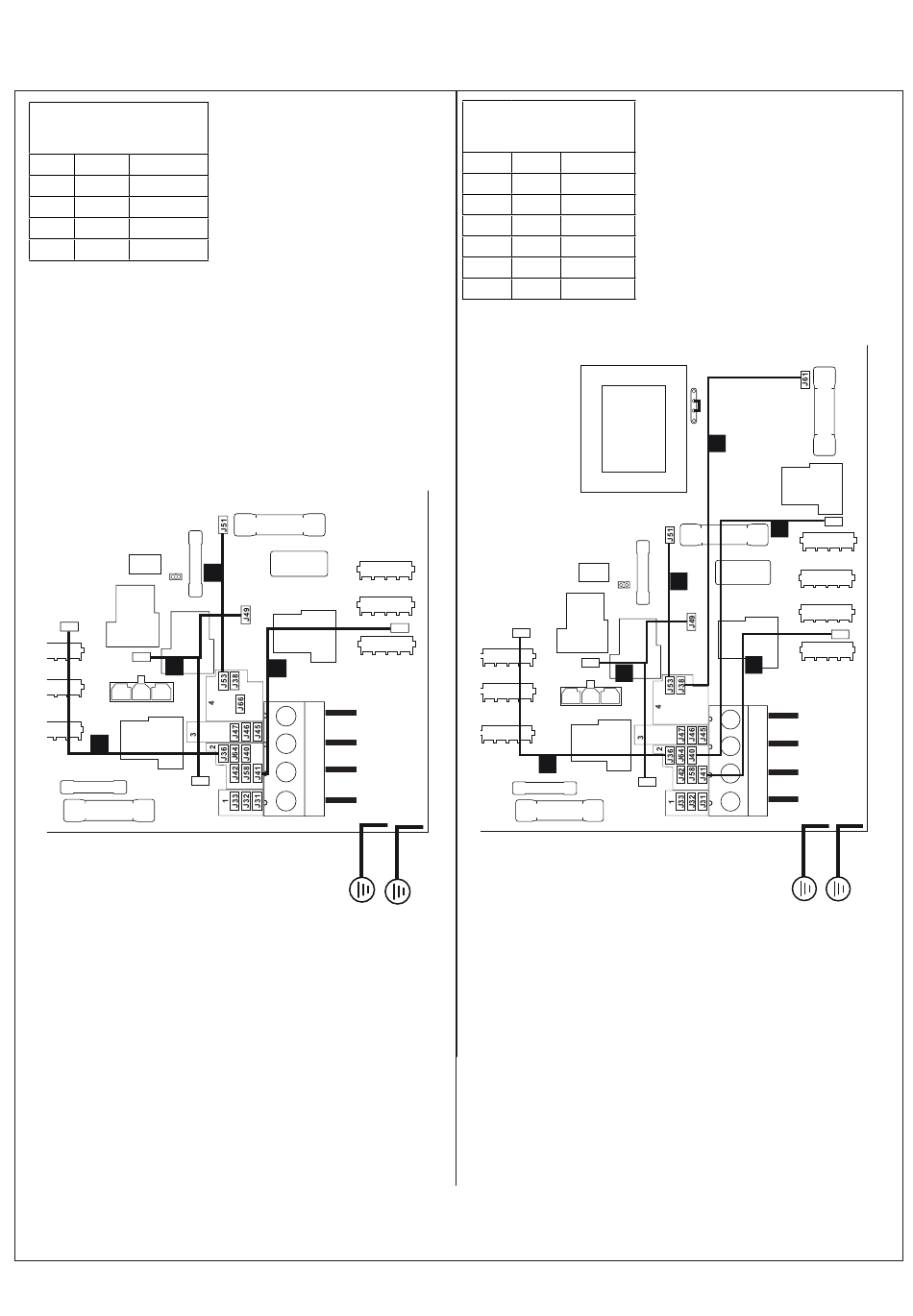

Collegamento trifase 50Hz • Three Service 50Hz Connection • Connexion Triphasée à 50 Hz
J465/J480
Three Service Jumper
Wiring
Wire From To
1 J53 J51
2 J59 J41
3 J37 J36
4 J44 J49 & J35
J37
J44
4
3
BREAKER TERMINAL
COLLEGAMENTO MORSETTIERA
BREAKER TERMINAL CONNECTIONS
CONNECTIONS
BRANCHEMENT BORNIER
L1= Heater
L1 = Riscaldatore • Heater • Chauffe-eau
L2= Pump 1 and other components
L2 = Pompa 1 e altri componenti •
L3= Pump 2
Pump 1 and other components •
Pompe 1 et d'autres composants
L3 = Pompa 2 • Pump 2 • Pompe 2
1
2
THREE
SERVICE
D L3
C
L1 BRN
B N1 BLU
J35
A
L2 BRN
TB1
J495
Three Service Jumper
Wiring
Wire From
1 J53
2 J59
3 J37
4 J44
5 J61
6 J65
J59
J37
BRN
3
GRN
99
BREAKER TERMINAL
COLLEGAMENTO MORSETTIERA
BREAKER TERMINAL CONNECTIONS
CONNECTIONS
BRANCHEMENT BORNIER
L1= Heater
To
L1 = Riscaldatore • Heater • Chauffe-eau
L2= Pump 1 and other components
J51
L2 = Pompa 1 e altri componenti • Pump 1
L3= Pump 2 and Pump 3
J41
and other components • Pompe 1 et d'autres
J36
composants
J49 & J35
L3 = Pompa 2 e Pompa 3 • Pump 2 and
J38
Pump 3 • Pompe 1 et Pompe 3
J40
5
1
J44
4
J35
J65
6
J59
2
THREE
SERVICE
L3 BRN
D
L1 BRN
C
B
N1 BLU
A L2 BRN
GRN
TB1
