Step 7.2
INSTALLING THE REAR PANEL
PARTS
• Rear panel (large curved panel with belt holes in box III)
• Sachet D (4x M6 Philips-head bolts, 4x M6 cap nuts,
4x M6 spring washers, 8x M6 washers)
22

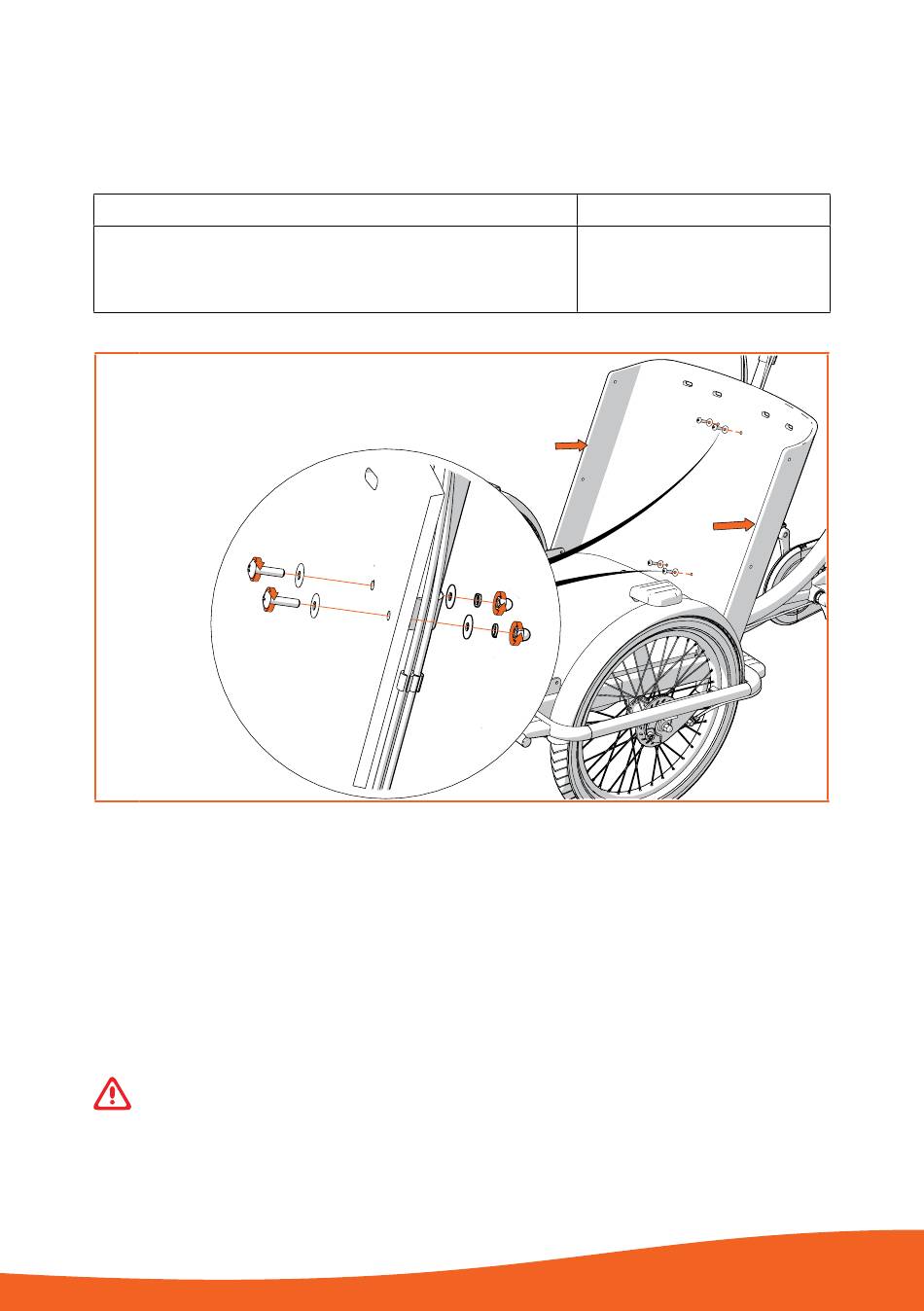

1. Place the rear panel of the box against the steering tube, as shown in figure 22.
Make sure that the attachment holes in the rear panel line up with the attachment
holes in the steering tube.
2. Secure the rear panel of the box to the steering tube using the nuts, bolts and
washers from sachet D. Use the cap nuts on the outside of the box (see detail I), this
way children won't be bothered by them when sitting in the cargo box. The rear panel
should only be hand-tightened for now, so that the box as a whole can be properly
fitted.
Please note
Adhere to the specified order for nuts, bolts and washers to ensure optimal assembly.
See detail I for the correct order.
62
I
TOOLS
• Spanner # 10
• Phillips screwdriver
