Babboe Curve Instructions De Montage page 52

5

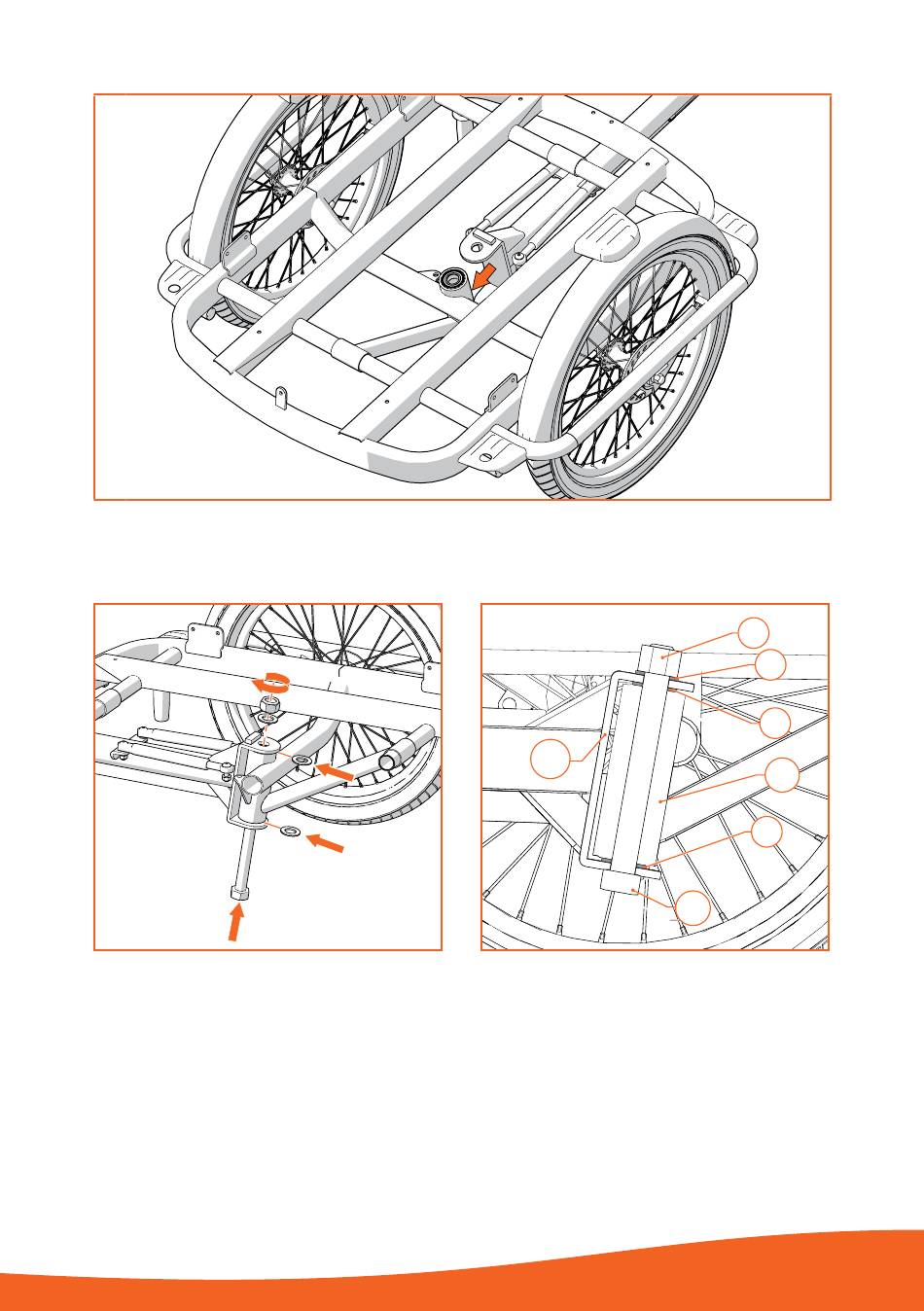

4. Slide the connection piece over the cylinder in the front frame, as shown in figure 5.
6
5. Then place the washers (5) between the connection piece (1) and the cylinder (2) as
shown in figures 6 and 7 and insert the bolt (3) through the connection piece and
the cylinder.
6. Next, fit the nut (4) onto the bolt and use spanner # 30 or a Bahco/adjustable spanner
to tighten it as much as possible. A blockage at the top of the bolt means that you
can tighten the nut without having to hold onto the bolt.
52
7
1
4
5
5
2
5
3
