Schéma de Câblage
Optional Exterior
Exhaust Blower
Thermostat
Red
Red
Connect
Thermostat
Armor Cable Supplied
Black White
Combustion
Blower
Power
Cord
Ground
115V
Black White
220V
Brown
Hot Common
5 Amp
Fuse
Black
White
Orange
Orange
Purple
Blue
Yellow
Red
Grey
Grey
Brown
Brown
Here

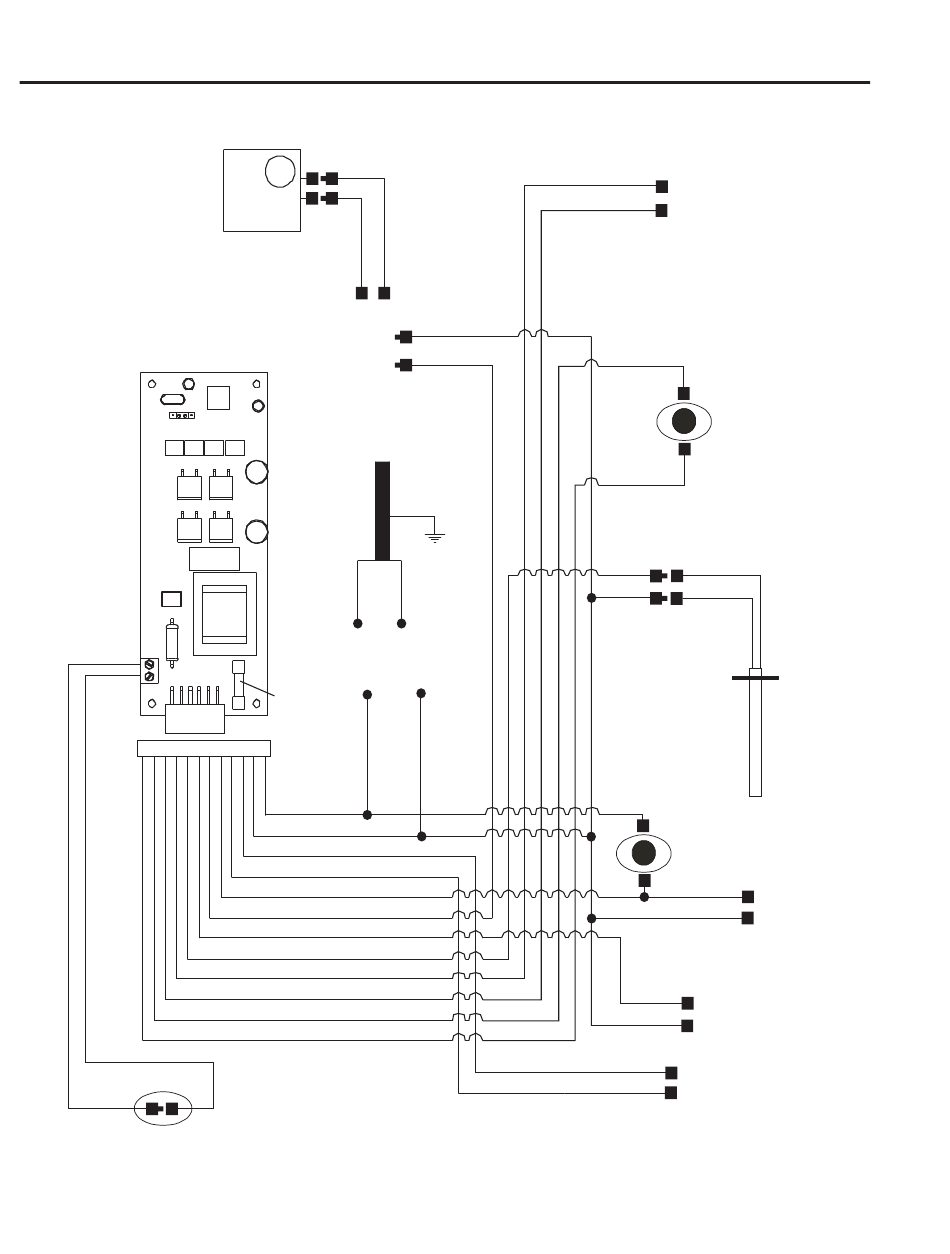

Figure 34: Meridian schéma de câblage
White
Blue
115V
220V
Blue
Grey
Vacuum
Grey
Switch
Brown
Exhaust
Temperature
Sensor
Brown
Red Black
White
Black
Ignitor
Convection
Temperature
Sensor
Purple
Convection
White
Blower
Yellow
Auger
White
Motor
Orange
High Limit
Orange Temperature
Sensor
