14
Mounting bracket (2x)
7. Remove the maintenance cover (item 10) by unscrewing the self-
tapping screws all around.
8. Dismantle the two mounting brackets (item 14).

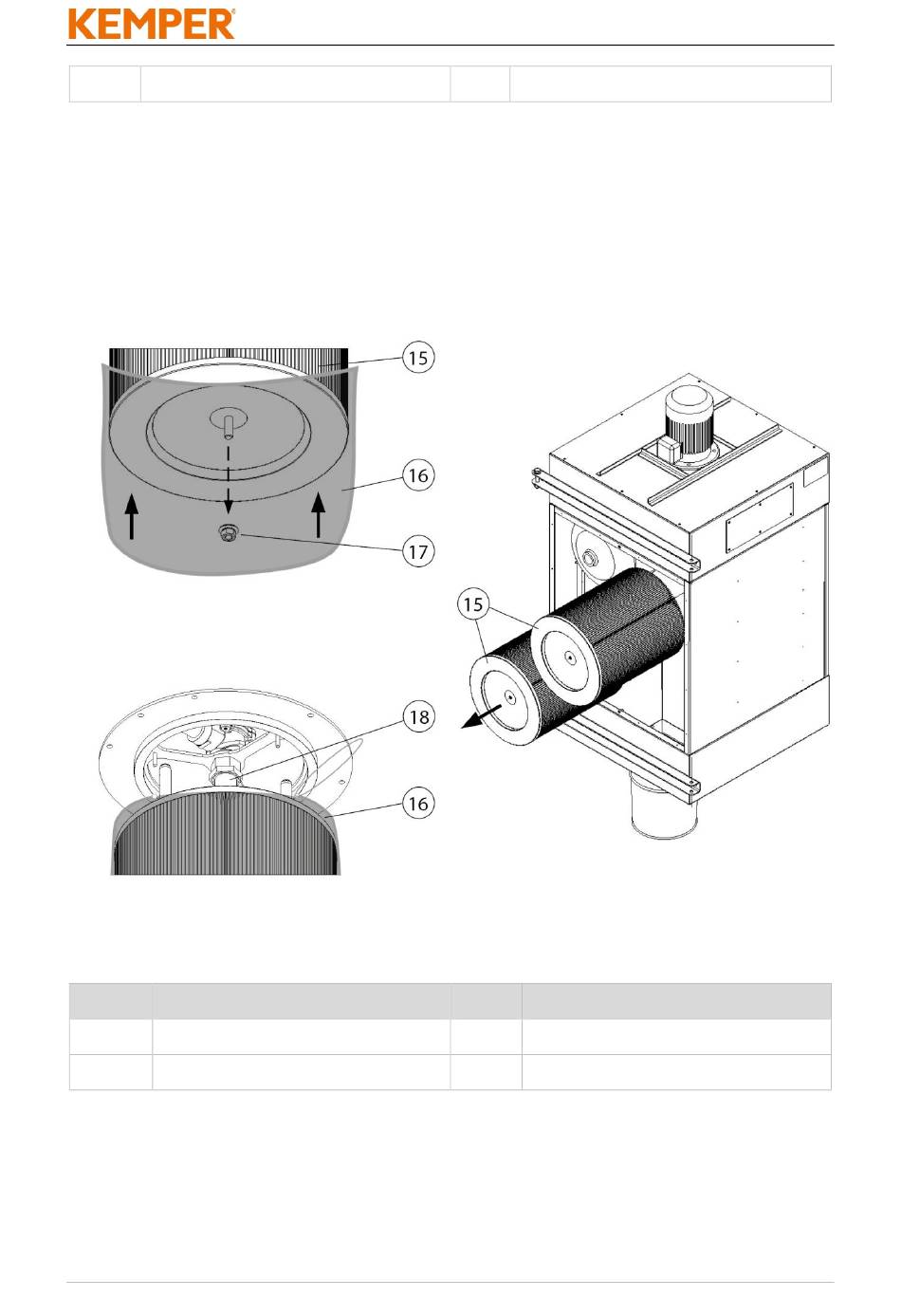

Fig. 48: Dismantling and disposing of filter cartridges
Item
Description
15
Filter cartridge (2x)
16
Disposal bag
Tab. 32: Dismantling and disposing of filter cartridges
9. Loosen the contaminated filter cartridge (item 15) by removing the
hexagon nut + washer (item 17).
1502518-00
Tab. 31: Dismantling the maintenance cover
- 96 -
Item
Description
17
Screw + washer
18
Rotating nozzle
EN
