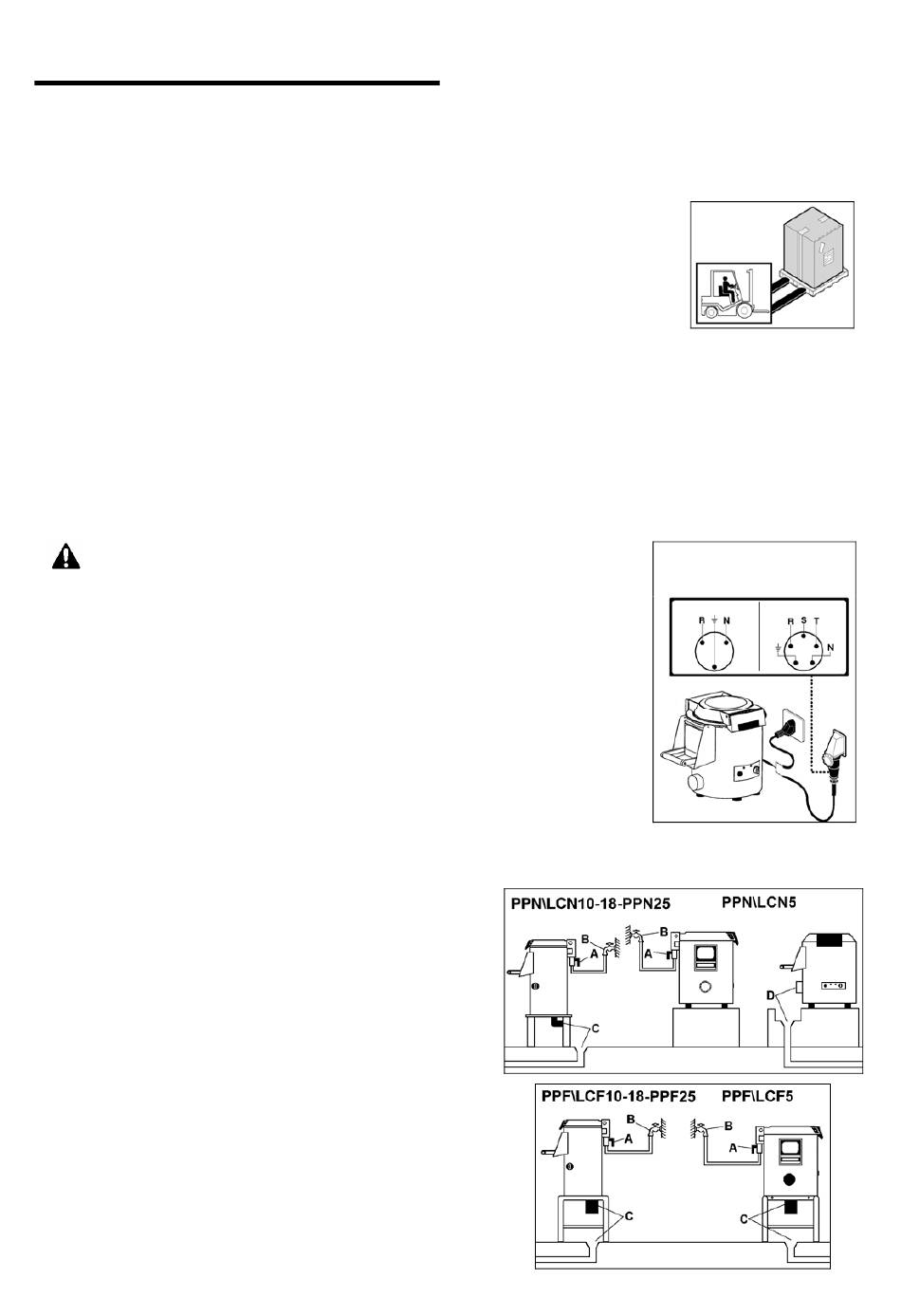

Packing and unpacking

The machine will come packaged in a carton with foamed polyester inserts to
guarantee perfect safety during transport.
•
Handle the carton in compliance with the instructions.
•
Open the carton and make sure that all components are intact. Keep the carton
for any future machine removal.
•
Lift the machine according to the instructions and place it in its selected setting
for installation.

Installation area

The selected machine work setting must be sufficiently lit and have an electric power outlet. The worktop
must be sufficiently large, perfectly level and dry. The machine should be installed in non-explosive
environments. In any case, installation should be carried out by taking into account any applicable industrial
safety regulations in force.

Electric connection

DANGER – CAUTION: Electric connection to the power mains
should be executed by skilled engineers.
Check for the perfect effeciency of the plant grounding system. Make sure that
the line voltage (V) and frequency (Hz) correspond to the machine ratings (refer
to the machine identification plate and wiring diagram). The machine comes
equipped with an electric cable with plug. Plug the machine into a main wall
switch with differential.
Three-phase connection
Start the machine for just a few seconds and check that the beater turns in the
right direction. If this is not the case, disconnect power and exchange two of the
three phase wires in the plug.

Connection to water supply

Connect to water supply by means of the supplied hose
(1500mm.) and ¾" couplings. Proceed as follows:
-Connect hose to inlet A on the machine back side.
-Connect the other end of the hose to water supply. A water
trap B is to be installed on the water supply pipe before the
machine.
-Incline the water drain C to facilitate scrap draining; the
underground draining pipe must be ø50mm. for models
PPN\LCN10-18-PPN25 and ø90mm. for models PPF\LCF5-
10-18-PPF25. The model PPN\LCN5 is a table-top machine
in order to drain D into a washbasin or similar, placed on
the left of the machine.

INSTALLATION

7
2
Single-phase Three-phase
connection connection
230V 230/400V
1Ph 3Ph/3Ph+N
