T he Blade mSR Ready-To-Fly helicopter is designed to bridge the gap between co-axial and high performance
ultra-micro helis. Co-axial heli pilots will appreciate the simplicity of the mSR with its proven design and
exceptional durability. Its unique rotor head provides the kind of response you would expect of a single-rotor heli,
but maintains a measure of positive stability similar to a co-axial heli. This blend of agility and stability makes it the
ideal "next step" for someone moving up from a coaxial heli, such as the
Blade CX2 or Blade mCX2.

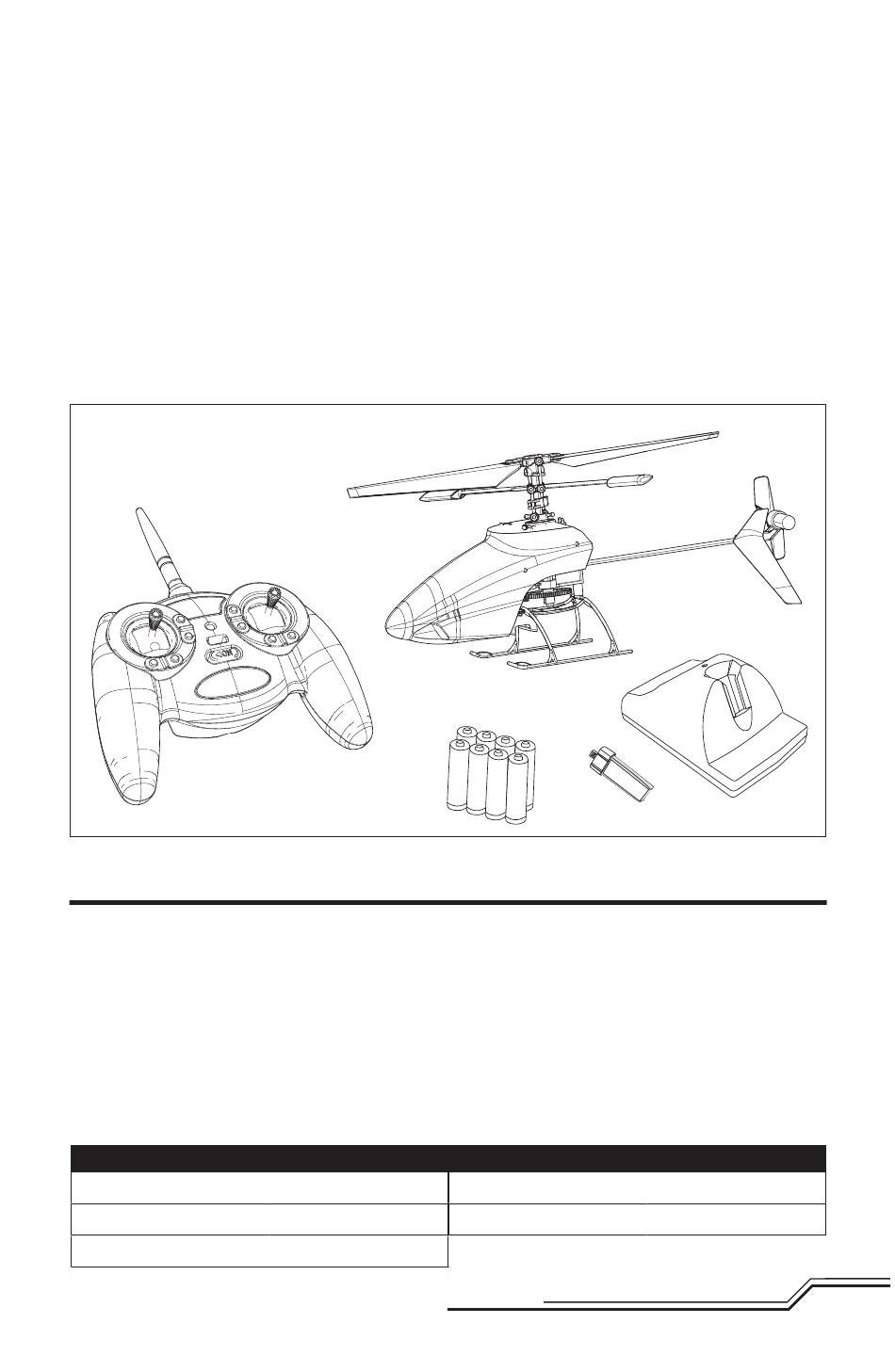

Your Blade mSR RTF comes from the factory completely assembled and fl ight tested with everything you need to
get fl ying. This includes a 2.4GHz DSMX
and 8 AA batteries, 4 for the Li-Po charger and 4 for the transmitter. The mSR's onboard 5-in-1 control unit com-
bines the functions of a Spektrum™ 2.4GHz DSMX-compatible receiver, mixer, gyro, main and tail motor ESCs and
servos. This integration eliminates the need for diffi cult electronic installation and setup while providing heading
lock-like gyro performance and precise proportional motor and servo response.
While your mSR is ready-to-fl y right from the box, please take the time to read through this manual for tips on
battery safety and charging, control checks and more before making your fi rst fl ight. We also suggest viewing the
Instructional Video located on the Blade mSR product page at www.bladehelis.com
Table of Contents
Charging Warnings...................................................... 4
Low Voltage Cutoff (LVC) ............................................. 4
Battery Charging ......................................................... 5
First Flight Preparation ................................................ 5
Flying Checklist .......................................................... 5
Transmitter and Receiver Binding ................................ 6
Transmitter Control ..................................................... 7
Installing the Flight Battery ......................................... 7
Understanding the Primary Flight Controls .................. 8
Transmitter Dual Rates ............................................... 9
Length
Height
Main Rotor Diameter
®
transmitter, a 150mAh 25C Li-Po fl ight battery, a convenient Li-Po charger
Flying the mSR ........................................................... 9
Exploded View and Parts Listings .............................. 10
Optional Parts ........................................................... 11
Troubleshooting Guide .............................................. 12
Limited Warranty ...................................................... 13
Warranty and Service Contact Information ................ 14
Customer Service Information ................................... 14
FCC Information ........................................................ 15
Compliance Information
for the European Union ............................................. 15
Blade mSR Specifi cations
190mm (7.5 in) Tail Rotor Diameter
Gross Weight
83mm (3.2 in)
180mm (7.0 in)
To register your product online, visit www.bladehelis.com
3
RTF
BLH3000
37mm (1.5 in)
31 g (1.1 oz)
