Transmitter Control; Installing The Flight Battery - Blade mSR Mode D'emploi

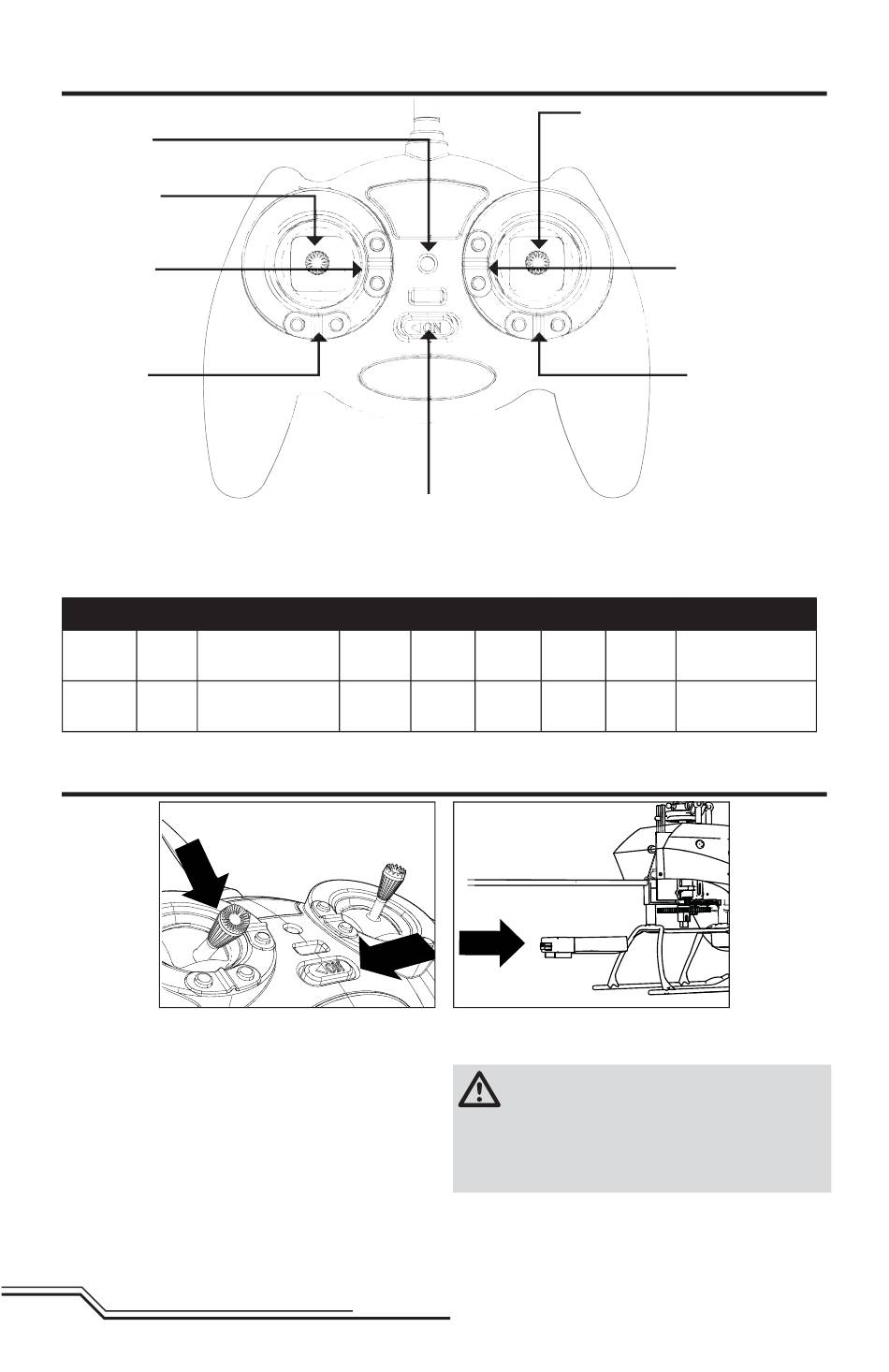

Transmitter Control

A
H
G
F
When pressed down, trim buttons make a sound that
increases or decreases in pitch at each pressing. The
middle or neutral trim position is heard as a middle
H A
Mode 1 Power
LED
Mode 2 Power
LED

Installing the Flight Battery

1. Lower the throttle to the lowest setting.
2. Power on the transmitter.
3. Install the battery in the helicopter by sliding it into
the battery mounting supports/slots just below the
main gears. Slide the battery into the slots with the
label facing downward and the connector oriented
toward the back of the helicopter.
4. Connect the battery cable to the
5-in-1 control unit.
EN
B C
Aileron (Left/Right) Throttle
Throttle (Up/Down) Trim
Aileron (Left/Right) Elevator
Elevator (Up/Down) Trim
1
2
E
tone in the pitch range of the sounds. The end of the
control range is sounded by a series of beeps.
D E F
Aileron ON/OFF Rudder
Trim Switch Trim
Aileron ON/OFF Rudder
Trim Switch Trim
3
NOTICE: Do not allow the helicopter to move until the
blue LED on the 5-in-1 control unit turns solid.
CAUTION: Always disconnect the Li-Po battery
from the aircraft ESC when not fl ying to avoid
over-discharging the battery. Batteries discharged to
a voltage lower than the lowest approved voltage may
become damaged, resulting in loss of performance and
potential fi re when batteries are charged.
6
B
C
D
G H
Elevator Rudder (Left/Right)
Trim Elevator (Up/Down)
Throttle Rudder (Left/Right)
Trim Throttle (Up/Down)
