Assembly; Attach The Saw Arm Assembly - Delta 96-110 Manuel D'utilisation

Insert the Water Tray
Ensure the saw is on a level
and stable surface.

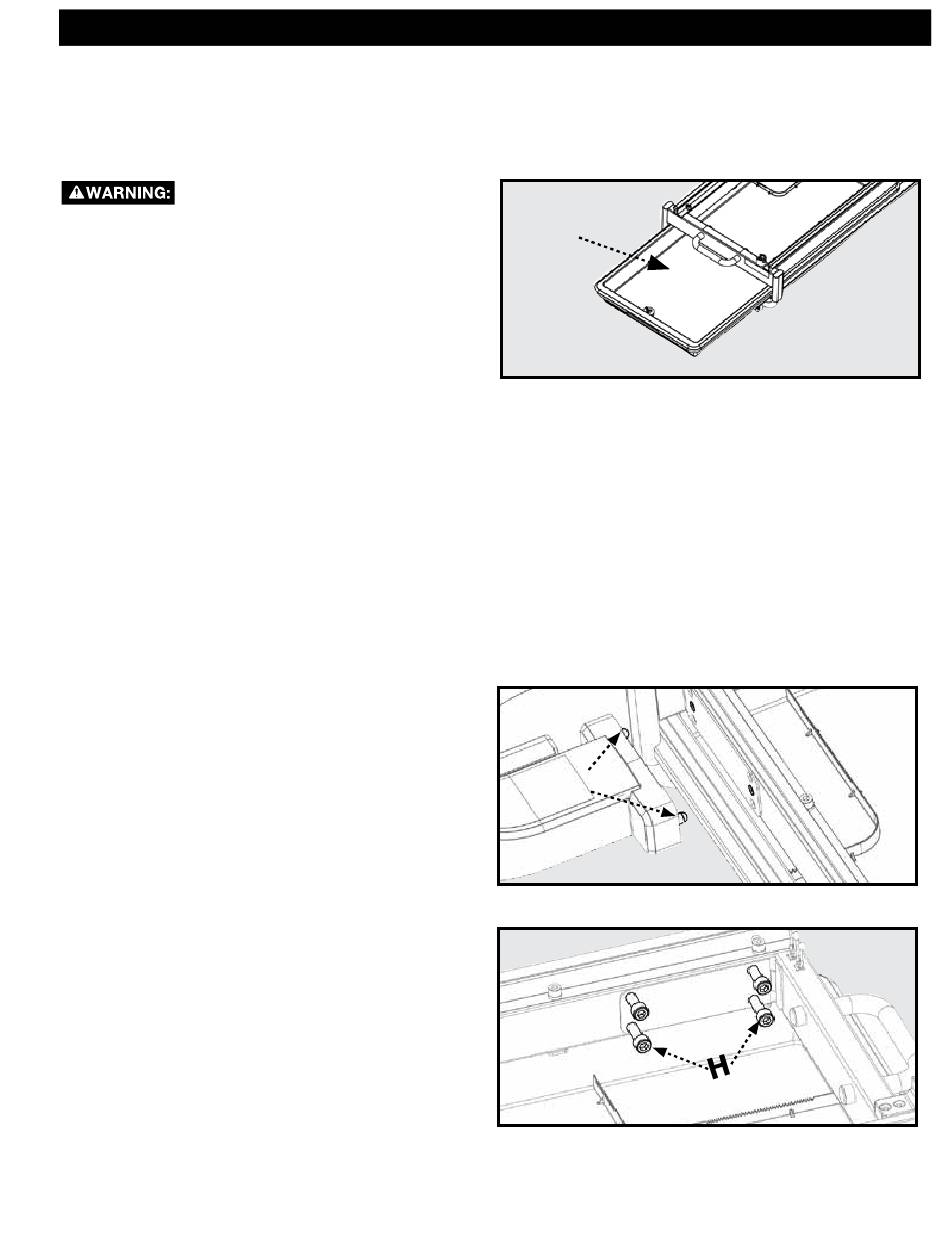

Insert Water Tray (11) by sliding it into the
Main Frame (1) as shown in Figure 5.

Attach the Saw Arm Assembly

1. Attach the Saw Arm Assembly to the main frame by
first aligning the Pegs (C) on the Saw Arm Assembly to
the holes on the main frame as shown in Figure 6.
2. Fasten the Saw Arm Assembly by using the four
M10 X 60 Hex Head Screws (H1) and the 8mm
Allen Wrench (H2) as shown in Figure 7.

ASSEMBLY

FEATURES
11
C
9
Figure 5
Figure 6
Figure 7
