Assembly - Delta 36-978 Manuel D'utilisation

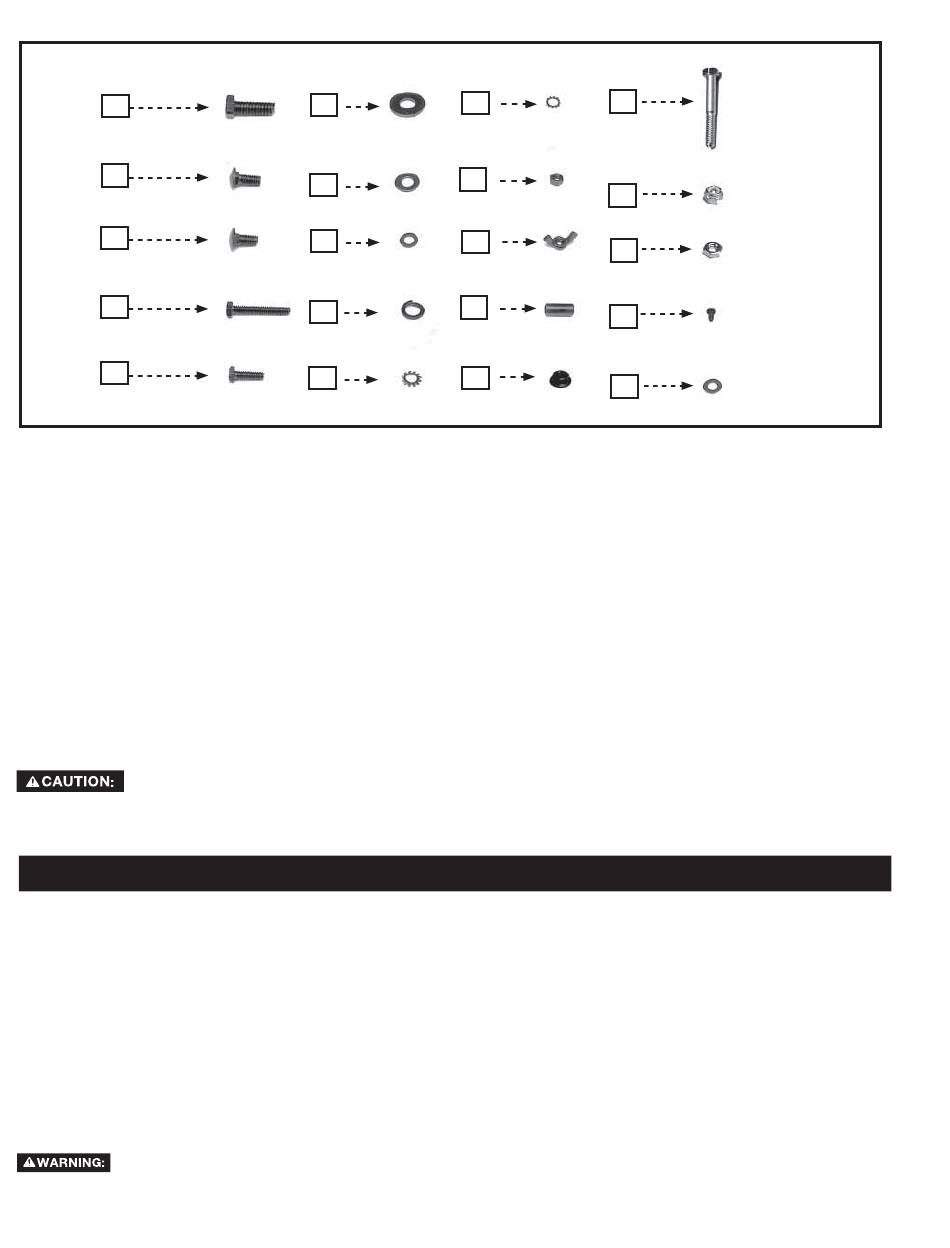

HARDWARE
1
2
3
4
5
1. 7/16 - 20 x 1-1/4" Hex Head Bolt (6)
2. 5/16 -18 x 3/4" Carriage Head Bolt (8)
3. 5/16 -18 x 5/8" Carriage Head Bolt (50)
4. 1/4 -20 x 1-1/2" Hex Head Bolt (1)
5. 1/4 -20 x 3/4" Hex Head Bolt (2)
6. 7/16" Flat Washer (6)
7. 5/16" Flat Washer (1)
8. 1/4" Flat Washer (3)
9. 7/16" Lockwasher (6)
10. 5/16" External Tooth Lockwasher (1)
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from
unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol.
Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your saw.
After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.
Socket or Open-End Wrenches, including 10mm, 12mm, 18mm,1/2 inch and a Phillips screwdriver (not supplied)
For your own safety, do not connect the machine to the power source until the machine is completely
assembled and you read and understand the entire instruction manual.
6
7
8
9
10

ASSEMBLY

ASSEMBLY TOOLS REQUIRED
7/8" Open End Wrench (supplied)
7/8" and 1/2" Close End Wrench (supplied)
4mm Hex Wrench (supplied)
1/4" Hex Wrench (not supplied)
ASSEMBLY TIME ESTIMATE
Assembly for this machine takes approximately 4-6 hours.
16
11
12
17
13
18
14
19
15
20
11. 1/4" External Tooth Lockwasher (4)
12. 1/4 -20 Hex Nut (1)
13. 1/4 -20 Wing Nut (1)
14. Spacer (1)
15. 5/16 -18 Serrated Hex Nut (57)
16. 5/16 -18 x 2-1/4" Hex Head Cap Bolt (2)
17. 5/16 -18 Nylok Nut (2)
18. 5/16 -18 Hex Jam Nut (5)
19. M4 x 8mm Pan Head Screw
20. 10mm Nylon Flat Washer (2)
10
