Thank you for purchasing an AKG product. This Manual contains important instruc-
tions for setting up and operating your equipment. Please take a few minutes to
read the instructions below carefully before operating the equipment. Please
keep the Manual for future reference. Have fun and impress your audience!
• 1 SST 4 stereo transmitter
• 1 SPR 4 bodypack stereo receiver
• 1 pair of IP 2 earbuds with 3 pairs of ear molds
• 1 rod antenna
• 1 rack mounting kit
• 1 power supply
• 2 AA size dry batteries
• 1 12-pc. color coding kit
• Check that the packaging contains all of the items listed above. Should any of
these items be missing, please contact your AKG dealer.
• SPC 4 wideband antenna combiner
• SRA 2 W passive wideband directional antenna
• RA 4000 W passive wideband omnidirectional antenna
• PSU 4000 central power supply
• HUB 4000 Q network interface
• MK PS antenna cables
• Front panel mounting kit for supplied antenna 0110E01890
• BP 4000 3-V rechargeable battery pack
• CU 4000 charger for 2 receivers or BP 4000 battery packs
The SST 4 is a stationary stereo transmitter designed to transmit a mono, stereo,
or dual-channel signal to the SPR 4 bodypack stereo receiver. It allows you to se-
lect one of 1200 frequencies within a 30-MHz band. In addition, it provides an in-
tegrated compressor, limiter, highpass filter, and a dedicated binaural room
simulator. You can use the transmitter as a standalone unit or install it in a 19" rack
using the supplied rack mounting kit.
1 2
1 RF ON/OFF VOLUME: Combined pushbutton switch for activating/deactivat-
ing RF power and rotary volume control for the headphone output.
2 HP OUT: TRS 1/4" jack for connecting a pair of headphones. The signal is iden-
tical to the audio signal fed to the RF section.
3 SETUP: Adjusts the transmitter parameters.
4 Color code: Replaceable ring for marking the transmitter.
5 Display: Refer to section 2.4.2 below.
IVM 4

2 Description

5

2.1 Introduction

2.2 Unpacking

2.3 Optional
Accessories
2.4 SST 4
Stationary Transmitter

2.4.1 Front Panel

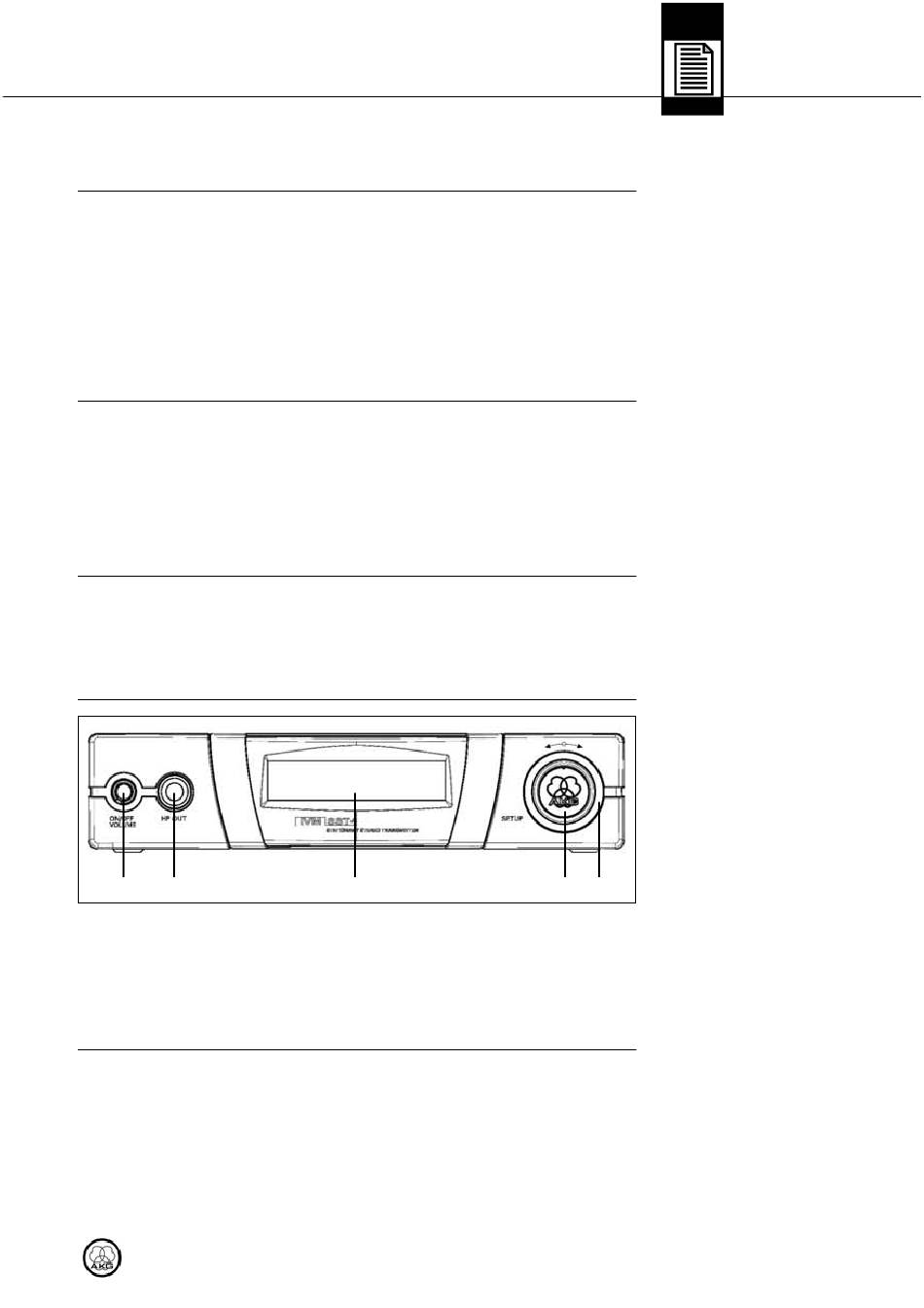

Fig. 1: Transmitter front
3 4
panel and display.
Refer to fig. 1.
