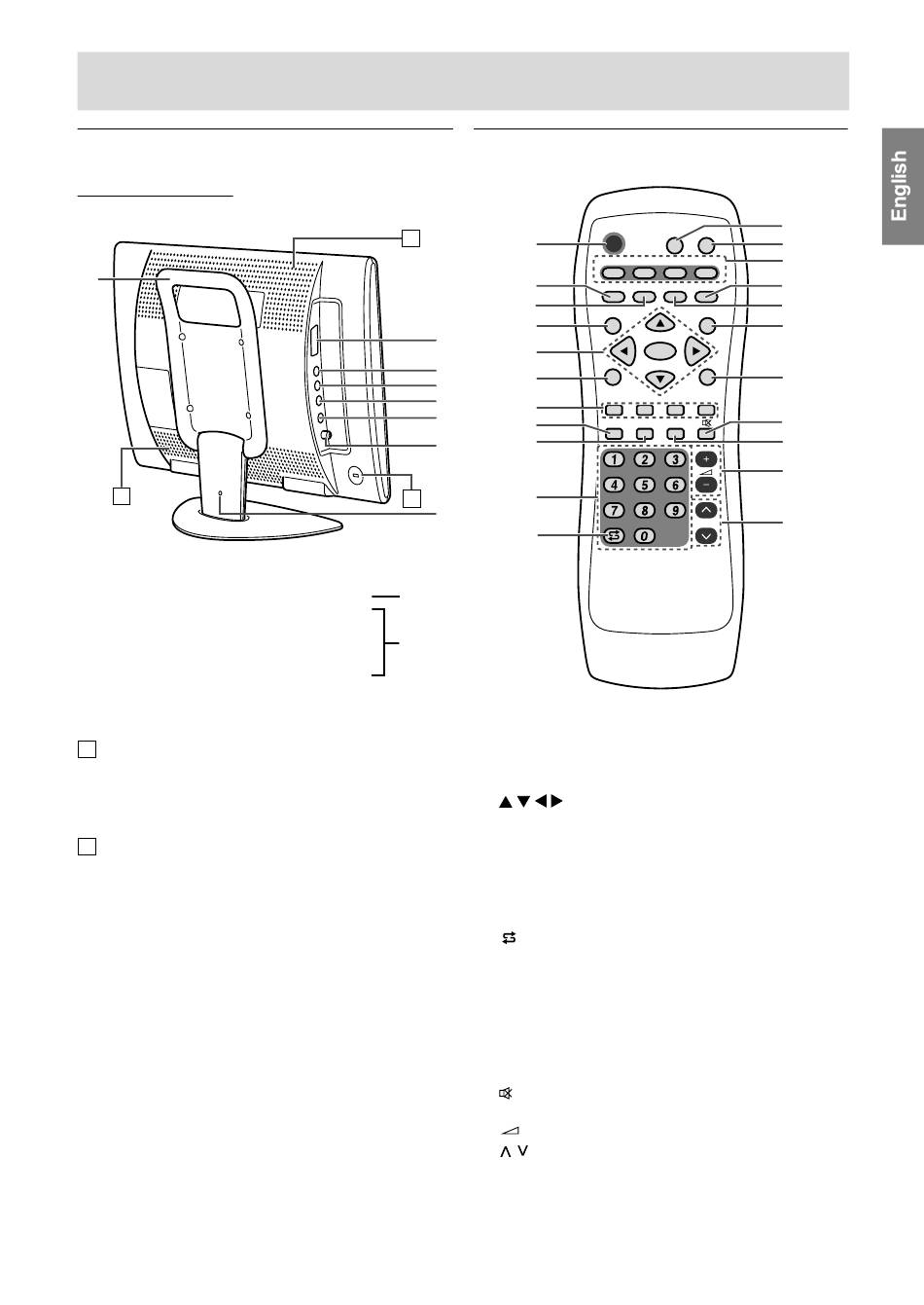

Main unit
Left view/rear view
14
A
14. Handle
15. 21-pin Euro-SCART (RGB) terminal
16. Video input terminal
17. Audio input terminal - Left
18. Audio input terminal - Right
19. S-video input terminal
20. Antenna input terminal
21. Lug-hole for cable clamp (See next page.)
A Ventilation openings
Never block the ventilation openings as this may
lead to overheating inside the monitor and result
in malfunction.
B Security lock anchor
By connecting a security lock (commercially
available) to the security lock anchor, the monitor
is fixed so that it cannot be transported. The
security slot works in conjunction with Kensington
Micro Saver Security Systems.
Product description

Remote control

A
15
16
17
18
19
20
B
21
AV-IN1
AV-IN2
1. POWER button
2. SUBPAGE button
3. REVEAL button
4. SLEEP button
5.
6. BRIGHT MODE button
7. Red, Green, Yellow and Cyan buttons
(for Teletext)
8. DISPLAY button
9. FREEZE/HOLD button
10. Channel buttons
11.
12. VIEW MODE button
13. PIP (Picture in Picture) button
14. Input buttons (PC, TV, AV1, and AV2)
15. TEXT button (for Teletext)
16. SUBTITLE button
17. MENU button
18. BRIGHT button
19.
20. SOUND button
21.
22.
E7
POWER
VIEW MODE
1
PC TV AV1
2
SUBPAGE REVEAL SUBTITLE
3
SLEEP
4
5
OK
BRIGHT
MODE
6
7
8 FREEZE
DISPLAY SOUND
/HOLD
9
10
11
buttons and OK button
(flashback) button
(mute) button
(volume) + – buttons
(channel) buttons
12
PIP
13
14
AV2
15
TEXT
16
MENU
17
BRIGHT
18
19
20
21
22
CH
