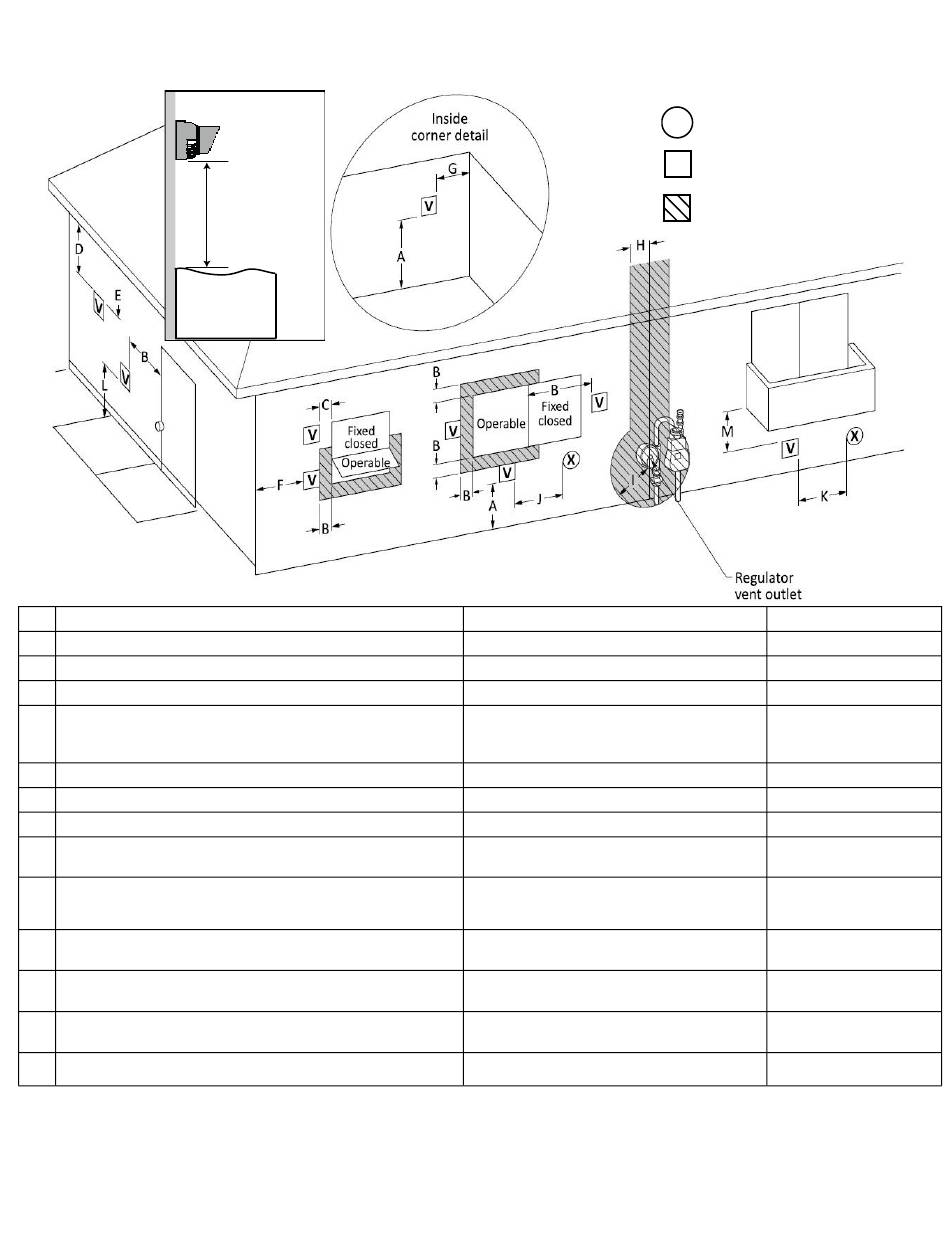

Direct Vent Terminal Clearances (Indoor Units)
For indoor models, you must install a vent termination to bring in combustion air and expel exhaust to the outside.
TERMINATION
SNOW
Ref
A Clearance above grade, veranda, porch, deck, or balcony
B Clearance to window or door that may be opened
C Clearance to permanently closed window
Vertical clearance to ventilated soffit, located above the terminal within
D a horizontal distance of 2 feet (61 cm) from the center line of the
terminal
E Clearance to unventilated soffit
F Clearance to outside corner
G Clearance to inside corner
Clearance to each side of center line extended above meter/regulator
H
assembly
I Clearance to service regulator vent outlet
Clearance to nonmechanical air supply inlet to building or the
J
combustion air inlet to any other appliance
K Clearance to a mechanical air supply inlet
Clearance above paved sidewalk or paved driveway located on public
L
property
M Clearance under veranda, porch, deck, or balcony
*1+ A vent shall not terminate directly above a sidewalk or paved driveway
that is located between two single family dwellings and serves both
dwellings.
*2+ Permitted only if veranda, porch, deck, or balcony is fully open on a
minimum of two sides beneath the floor.
Clearance in
Ref. A also
applies to
anticipated
snow line
Description
Canadian Installations
12 inches (30 cm)
36 inches (91 cm)
Above a regulator within 3 ft (91 cm) horizontally of
the vertical center line of the regulator vent outlet to
a maximum vertical distance of 15 ft (4.5 m)
36 inches (91 cm)
6 feet (1.83 m)
7 feet (2.13 m) 
12 inches (30 cm) 

For clearances not specified in ANSI Z223.1/NFPA 54, clearances are in
accordance with local installation codes and the requirements of the gas
supplier.
Clearance to opposite wall is 24 inches (60 cm).
KCM Series Manual
X
AIR SUPPLY INLET
V
VENT TERMINAL
AREA WHERE TERMINAL
IS NOT PERMITTTED
*
*
*
*
*
*
3 feet (91 cm) above if within
10 feet (3 m) horizontally
US Installations
12 inches (30 cm)
12 inches (30 cm)
*
*
*
*
*
*
*
12 inches (30 cm)
*
*
