Connection Case 3
Insert the plug of the additional unit into the wall socket of the telephone line (see the related illustration).
Using the specific adapter (as for the first type of connection), you can connect another device to the printer
"EXT" socket for connection to the telephone line.

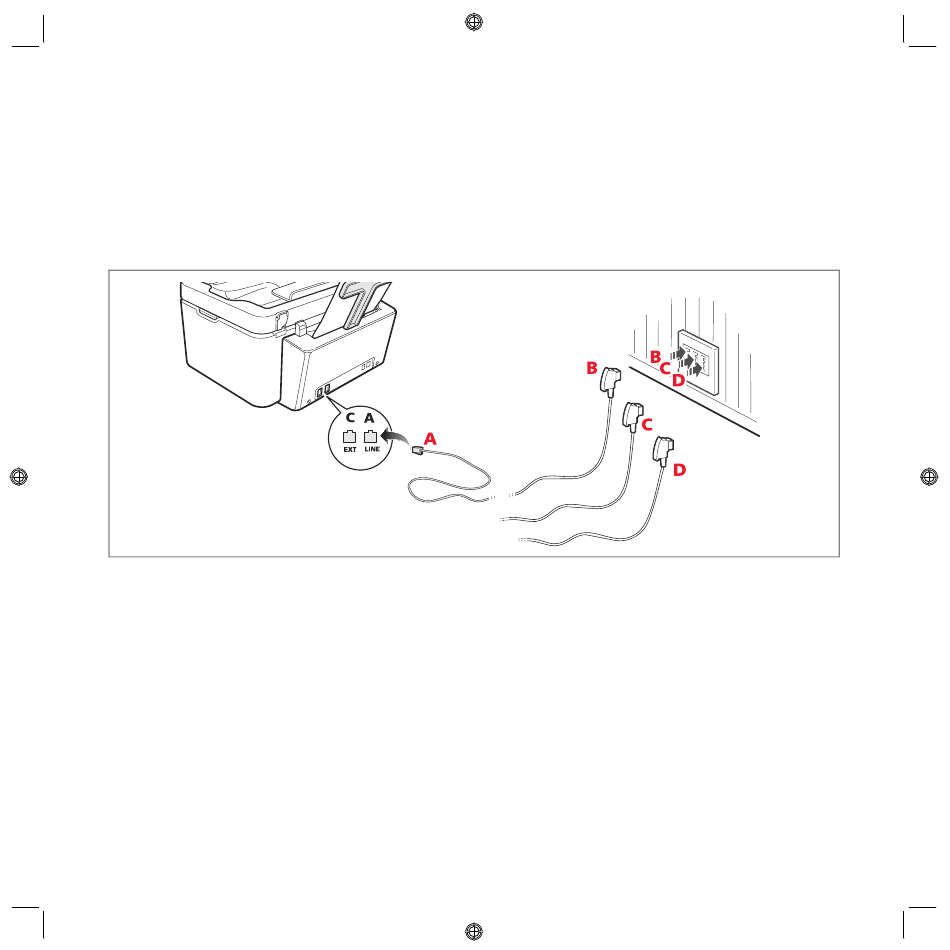

A = telephone line input (LINE IN)
B = wall socket for telephone plug
C = external telephone, with or without adapter, telephone answering device (EXT)
D = socket for external telephone, telephone answering device or other unit.

INSTALLING THE FAX

After having connected the telephone cable and the power supply cable, press the On/Off key to switch on the
printer. The printer executes a series of autodiagnostic tests displaying, at the end, a message indicating that the
printer is ready for use as a fax.
10 QUICK REFERENCE GUIDE
