1) GENERAL OUTLINE

COMPASS-485 is a transponder control card to be used in conjunction
with the proximity COMPASS-READER. It is used for the control of
internal and external access to public and private buildings, hotels,
large communities, etc.
The system can be interfaced by using COMPASS-232 with a PC featuring
the SECURBASE software which allows total access monitoring.
Thanks to its particular construction characteristics COMPASS-485/
COMPASS-READER is especially useful for controlling access both
inside and outside the building.
Accessories:
COMPASS-ISOCARD:
ISO standard proximity card, with the possibility of setting personalised
data (photograph, personal data, etc.)
COMPASS-RING:
Key-ring with transponder with the same functions as the card.
MITTO2-T/MITTO4-T:
Rolling-code transmitter with transponder, supplied with the same
functions as those of the card.
The main characteristics of the COMPASS-485/COMPASS-READER
system are the following:
• Access to proximity card
• The system parameters and the code map are stored in a non-volatile
storage which can file the stored data for years even in the event of
power supply failure.
• The memory can handle up to 6000 cards.
• The opening time can be set freely from 1 to 25.5 seconds.
• The door-open control time can be set freely from 1 to 250 secon-
ds.
• Input for door opening button and threshold status input (open/clo-
sed)
• ABS box with wearproof multilayer membrane protected against
atmospheric agents.
2) ACCESS
Move the proximity card close to the membrane of the COMPASS-
READER keeping it parallel to it and at a distance of about 5-10 cm
(Fig.1).
• If the yellow flashing DOOR Led becomes green and an acoustic
signal is heard, it means that the card has been recognised and
activated and opening takes place.
• If the DOOR Led remains yellow and an acoustic signal is heard,
it means that the card has been recognised but not activated and
opening does not take place.
• If the DOOR Led does not flash and no sound is heard, it means
that the card is not compatible.

3) MAINTENANCE AND DEMOLITION

The maintenance of the system should only be carried out by
qualified personnel regularly. The materials making up the set and its
packing must be disposed of according to the regulations in force.
Batteries must be properly disposed of.
4 - COMPASS-485/232 - Ver. 04
USER'S MANUAL
WARNINGS
Correct controller operation is only ensured when the data contai-
ned in the present manual are observed. The company is not to
be held responsible for any damage resulting from failure to
observe the installation standards and the instructions contained
in the present manual.
Installation must be carried out by qualified personnel.
The descriptions and illustrations contained in the present manual
are not binding. The Company reserves the right to make any alte-
rations deemed appropriate for the technical, manufacturing and
commercial improvement of the product,while leaving the essential
product features unchanged, at any time and without undertaking
to update the present publication.

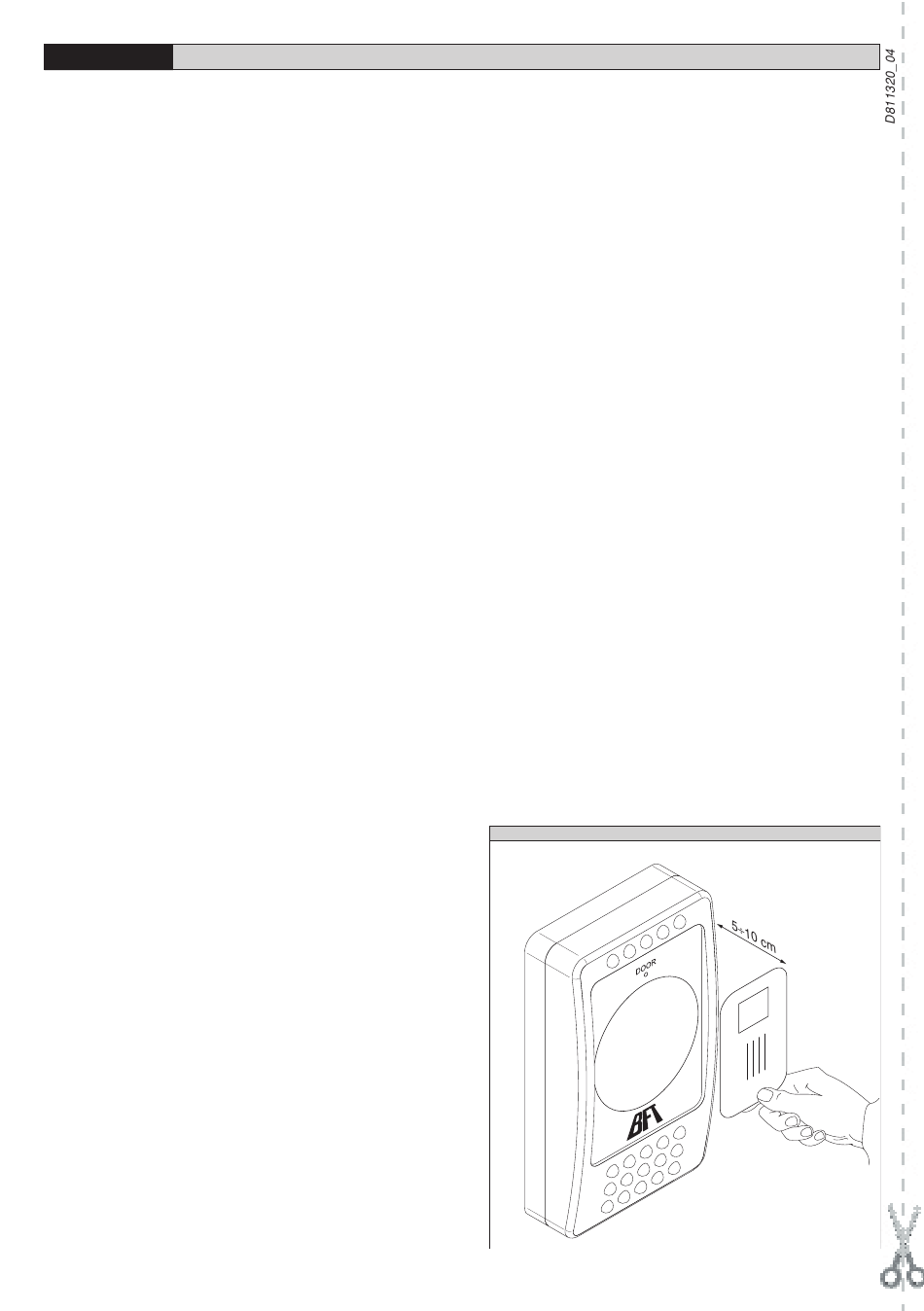

Fig. 1
