CHLORINE GENERATOR
USER INTERFACE
To Electrolytic
Cell

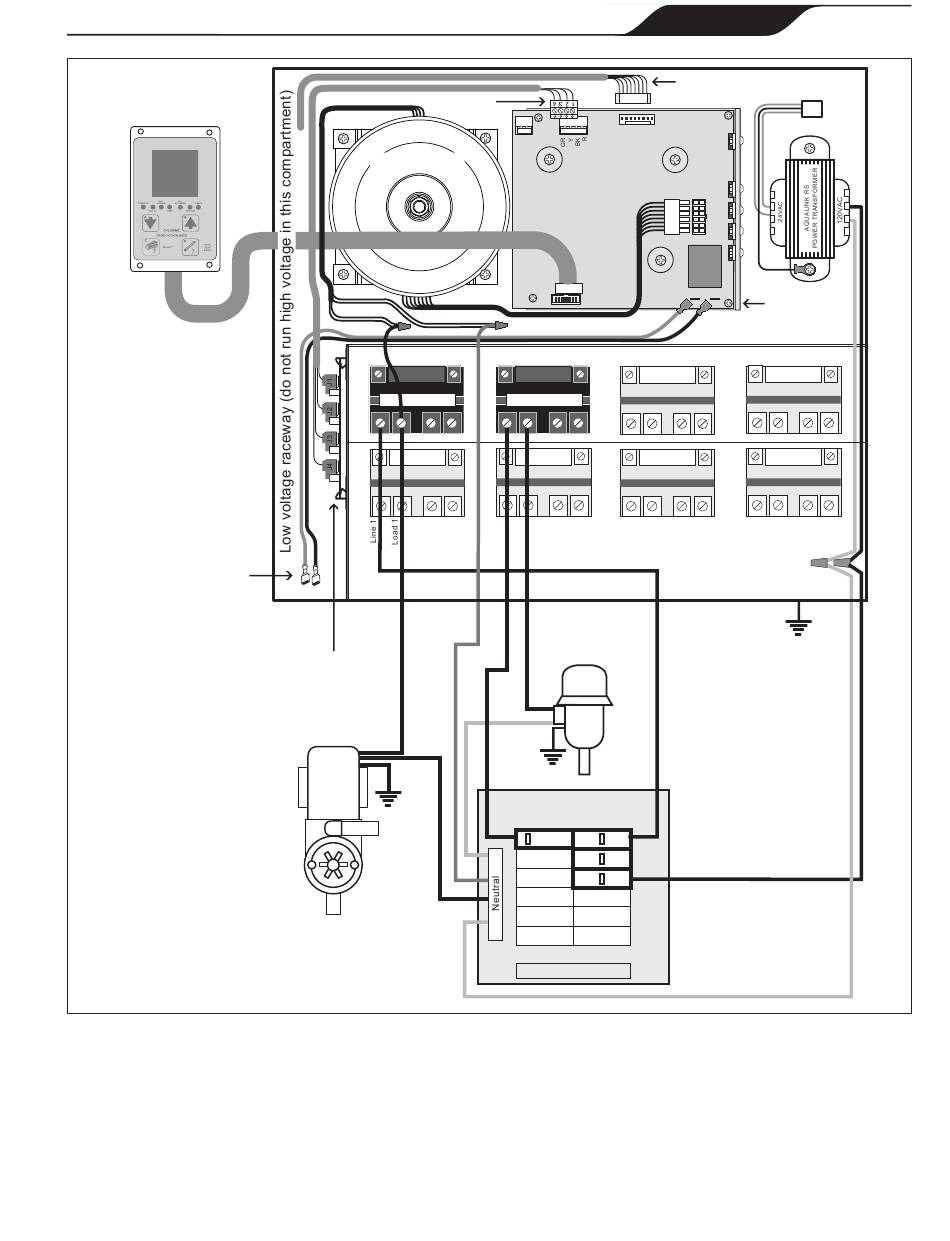

Figure 12. 120 VAC Wiring Diagram for the AquaLink
|
Zodiac Nature Fusion Soft Installation and Operation Manual
® 2®
Factory wired to Multiplex Board
PRIMARY
CHLORINE GENERATOR
TRANSFORMER
SECONDARY
BLK/WHT
BLK/RED
BLK/YEL
Filter Pump Relay
Multiplex Board
(J1 through J4)
Filter Pump
(120 VAC)
J12
CHLORINE GENERATOR
POWER INTERFACE
BLK
Aux. 3 Relay
Blower
(120 VAC)
Breakers
Ground
RS PureLink System
® TM
ENGLISH
Flow, Salinity, Temp Sensors
To AquaLink® RS
J13
J11
J10 J8
HEAT SINK
L - BRACKET
Wire Nut to
120 VAC Power
