Glass cleaning
With a cold stove, clean the glass with a cloth and glass cleaner.
Note: there are stove glass cleaning products available on the market.

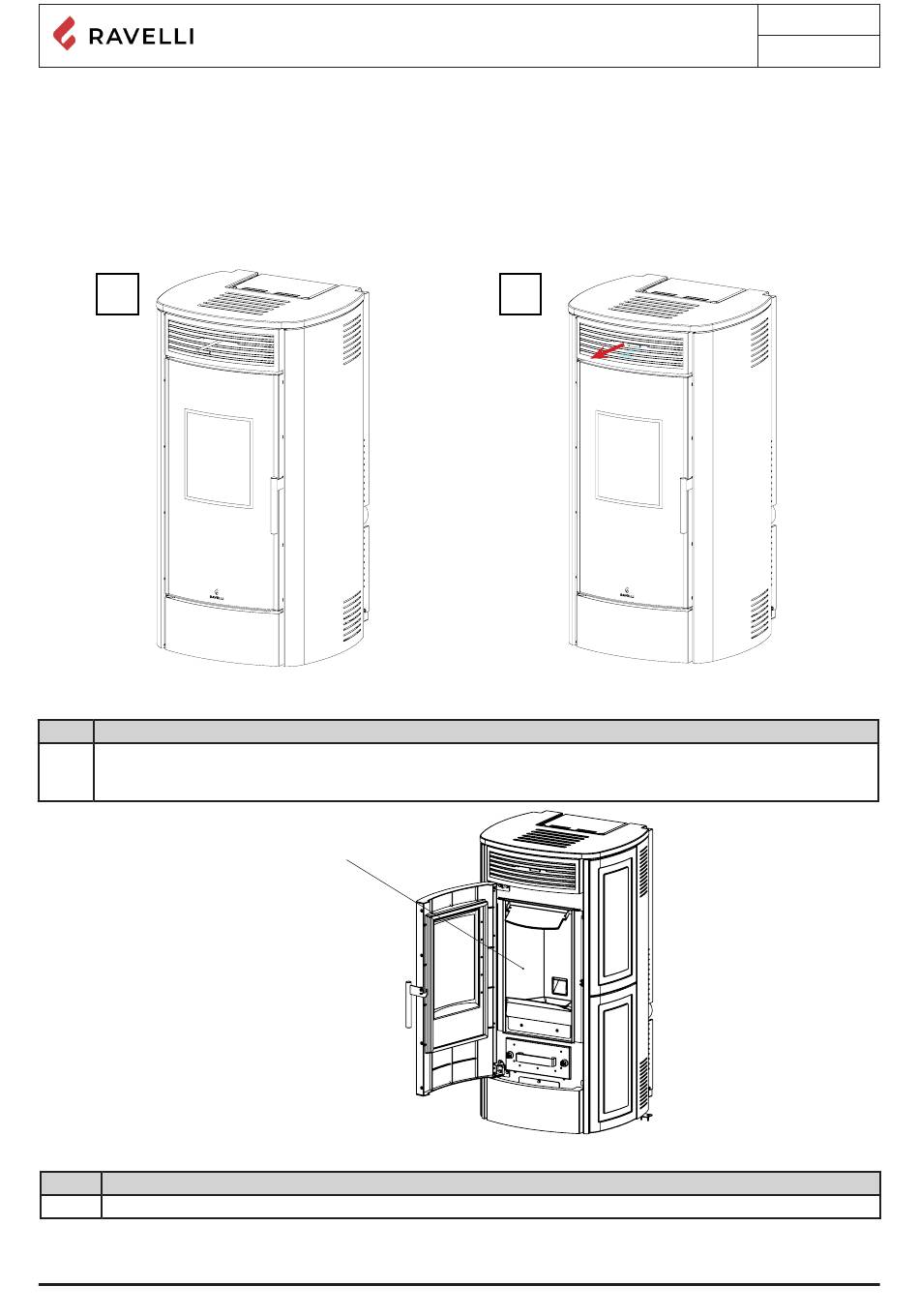

Cleaning the tube heat exchanger:
During operation, dust and soot are deposited on the surface of the heat exchanger tubes. To ensure smooth operation throughout
the season, it is advisable to periodically clean the heat exchanger when the stove is cold. Using the cold handle, extract the scra-
21 20 19 18 17 16
per rod and firmly move the scraper back and forth.
Once you have finished cleaning the exchanger, push the scraper into the grille (never leave it removed).
1
Combustion chamber cleaning
To clean the ash drawer, proceed as follows:
step action
21 20 19 18 17 16
The stove requires a simple yet frequent cleaning in order to guarantee suitable yield and regular operation. Vacuum the
1 combustion
chamber every day using a bin ash vacuum, making sure that the ashes are completely cold.
Cleaning the pellet tank
To clean the pellet tank, proceed as follows:
step action
1
Periodically remove the wood sawdust accumulated on the bottom of the tank, using a vacuum cleaner.
Extraction duct cleaning
Periodically check that the extraction duct is free from obstructions (dust, animal hair ...) and remove them if necessary.
