4. CONTROL ANd mAINTENANCE
Control unit without
cord packing
(current version)
ingersollrandproducts.com

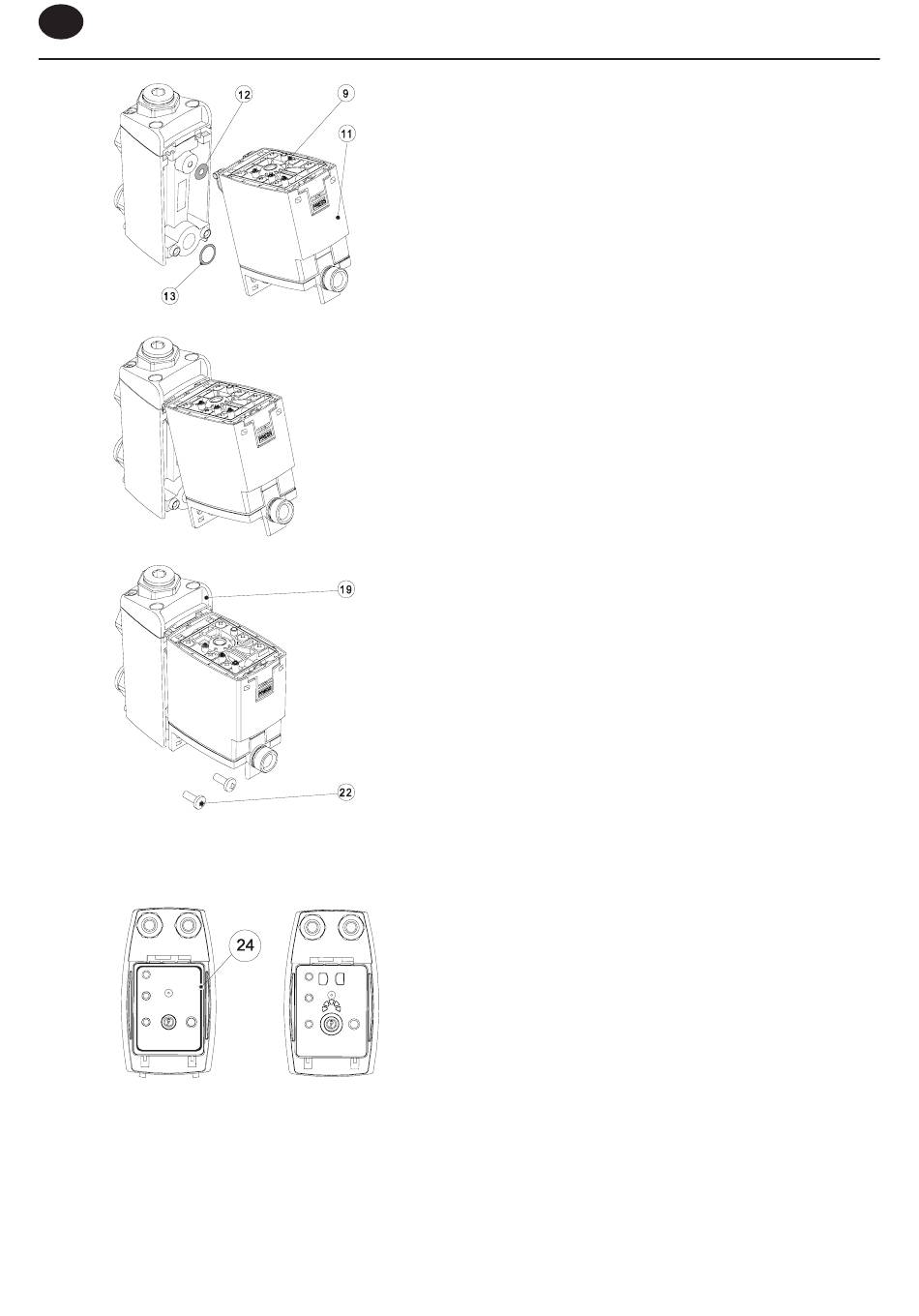

12. Check whether or not the service unit (9) goes with the
control unit (1...8) (model designation and color of the
arresting hook).
13. Check the O-rings at the new service unit (12, 13).
14. Mount the design shell (11).
15. Mount the service unit along with the design shell at
the condensate receiver tank (19) and tighten both
cross recessed head screws (22) (2,5 Nm).
16. Re-install the ENL 10 Service unit at the inlet tubing and
outlet, in reverse order to disassembly.
Prior to placing a previous version of the control unit with cord
packing (24) in the lower part of the cover, the sealing mat (11)
must be removed from the service unit.
