CLEAN AIR PROTECTIVE SET ASSEMBLY
/ to be used with Clean Air power respirators only /
1.
3.
5.
7.

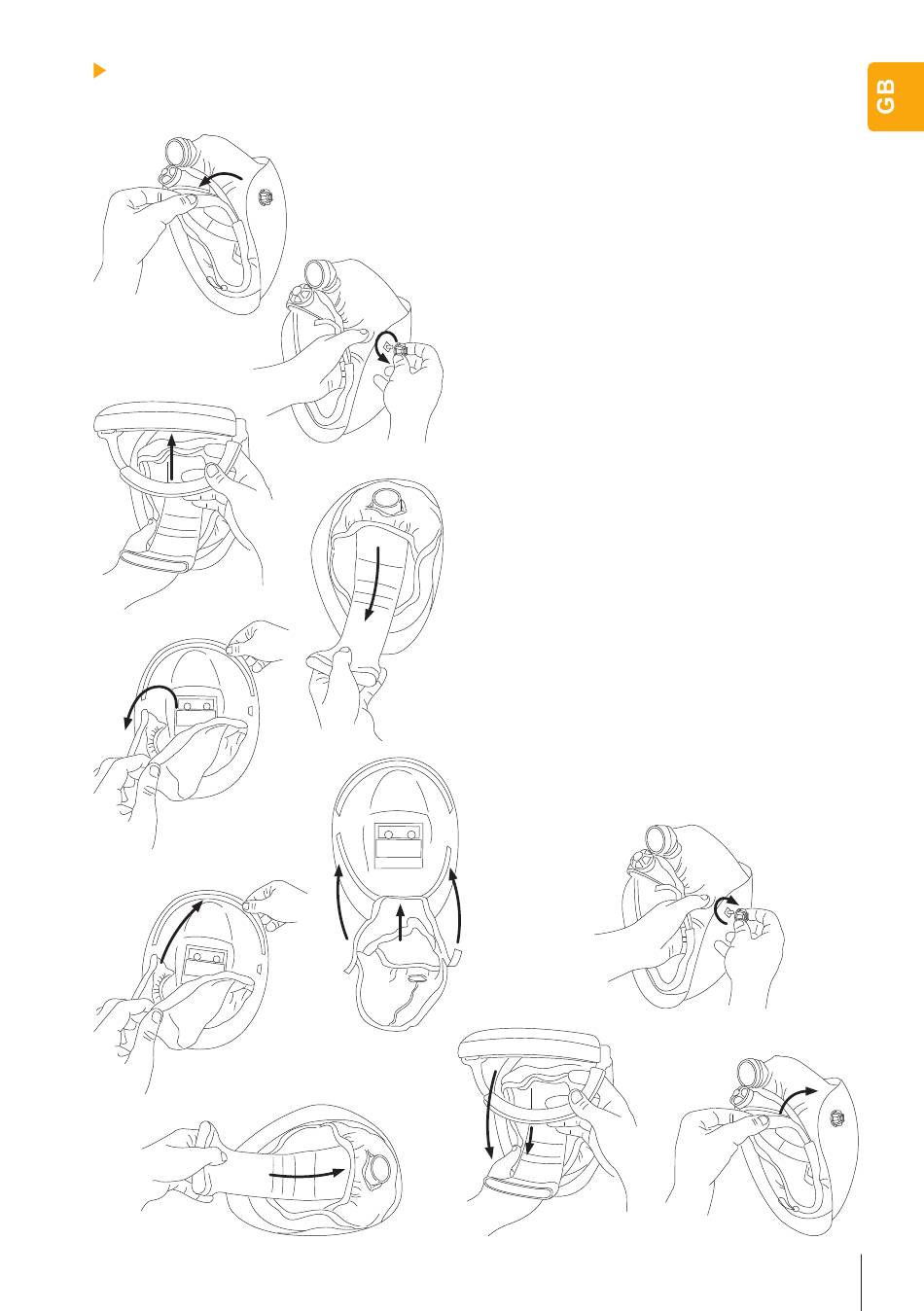

Face seal replacement:
1. Unfasten face seal tapes on both sides (1.).
2. Disassemble the headgear (2.).
3. Separate headband from air duct (3.).
4. Take out the air duct (4.).
5. Unfasten face seal from the velcro all around
the helmet (5.).
6. Start fastening the new face seal into the helmet
at the bottom side (6.).
7. Fasten the face seal into the helmet all around
the helmet (7.).
8. Push the air duct through the opening in the
face seal (8.).
9. Fasten the headgear onto the velcro on the air
duct (9.).
2.
10. Assemble the headgear with the helmet (10.).
11.
Fasten the face seal tapes on both helmet sides
(11.).
4.
6.
8.
9.
10.
11.
