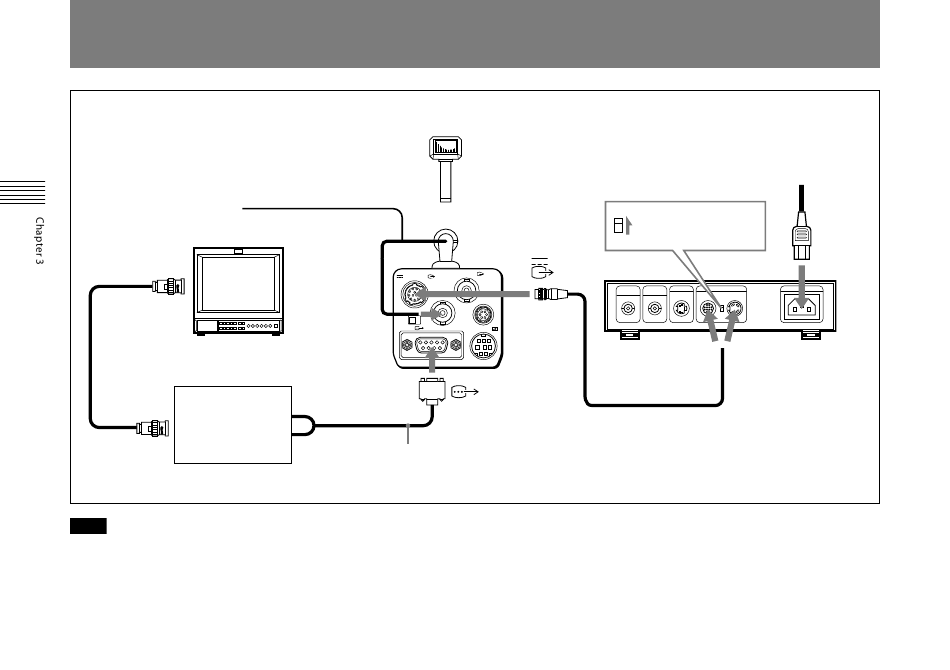

Connections for Shooting Using a Flash
Synchronization cable
Video input
connector
Video monitor, VCR, etc.
Image processor
Video output
connector
Note
When connecting a flash unit, set TRIGGER to ON in the
GENERAL menu (page 27) and D-SUB SYNC to WEN in
the SYSTEM menu (page 28).
50
(GB)
Chapter 3 Installation and Connections
Flash
Slave unit
DXC-390
VIDEO OUT
DC IN/VBS
TRIG IN
MENU LOCK
TRIG IN
OFF
ON
RGB/SYNC
REMOTE
Remote connector
Video input
CCMC-9DSMN/CCMC-9DS/
connector
CCXC-9DB camera cable
CMA-D2 camera adaptor
Set the MODE
1
selector to the "1"
2
position.
DC IN/VBS
LENS
RGB/SYNC
CCDC-5/10/25/50A/100A cable
or
CCMC-12P02/05/10/25 cable
Power cord
CAMERA
(4-pin or 12-pin)
