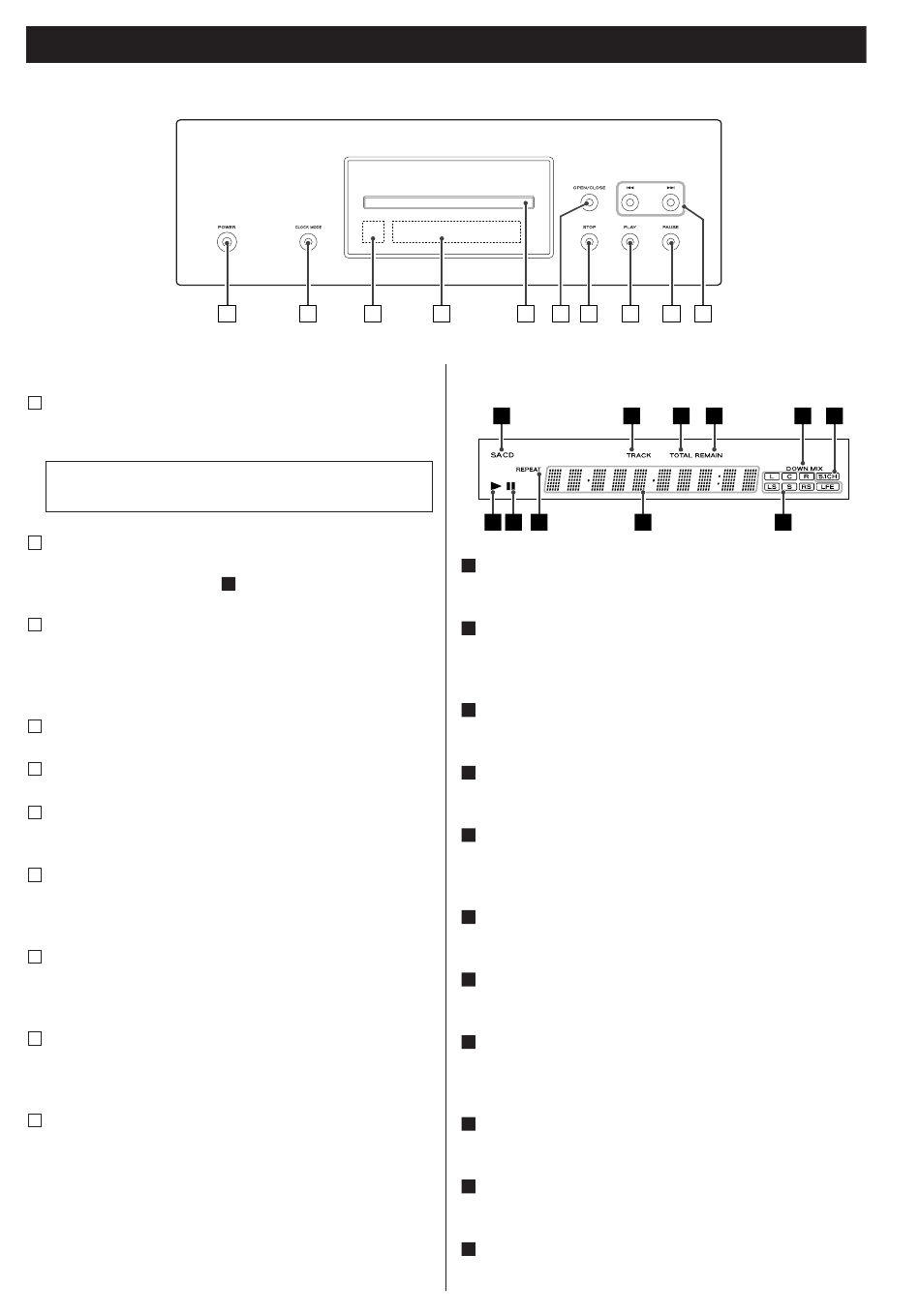

Front Panel
A POWER
Use this to turn the unit on and off. When the unit is on, the
ring surrounding the button lights up.
The equipment draws nominal non-operating power from
the AC outlet with its POWER switch in the OFF position.
B
CLOCK MODE
Use this to select an external word sync source connected to
the WORD SYNC connector
C Remote control sensor
Receives signals from the remote control unit. Point the
remote control unit at this sensor when operating the remote
control unit.
D
Display
E Disc tray
F OPEN/CLOSE
Use this to open and close the disc tray.
G
STOP
Use this to stop playback. When playback is stopped, the ring
surrounding the button lights up.
H PLAY
Use this to start playback. When a disc is being played back,
the ring surrounding the button lights up.
I
PAUSE
Use this to pause playback. When playback is temporarily
paused, the ring surrounding this button lights up.
J SKIP (.//)
Use these for skip operations. Pressing and holding these
buttons for more than a second changes the scanning speed.
10

Front panel features

A B C
C
on the rear panel.
D E F G
Display
a
j
k i
a
Disc type indicator
Shows the type of disc currently loaded.
b TRACK indicator
Indicates that the track number of a CD or Super Audio CD is
being shown.
c
TOTAL indicator
Indicates that the total time is being shown.
d REMAIN indicator
Indicates that the remaining time is being shown.
e
DOWN MIX indicator
Lights to show that a multi-channel source has been
downmixed to the analog outputs.
f 5.1CH indicator
Lights to show that 5.1 analog output has been selected
g
Channel indicators
Light to show which surround channels are currently in use.
Message area
h
Alphanumeric display to show times, titles, status messages,
etc.
i
REPEAT indicator
Lights when repeat play is selected
j Pause indicator
Lights when playback is paused.
k Playback indicator
Lights when playing back.
H I J
c e
b d
g
h
f
