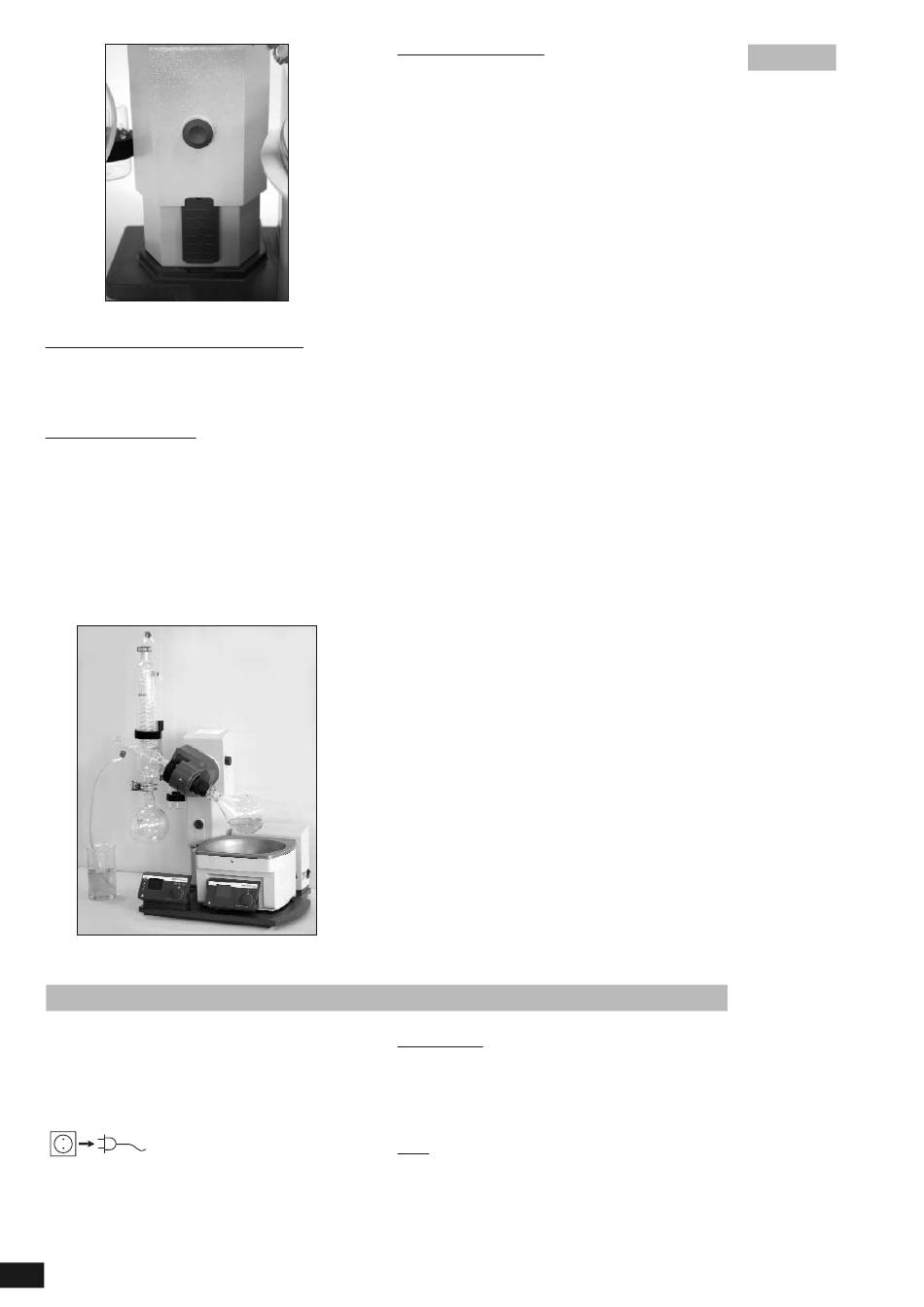

Maintenance And Cleaning - IKA RV 10 basic V Mode D'emploi

Check that the limit stop is functioning properly:
☞ Lower the lift by holding down the "M" key.
☞ The drive stops automatically when the preset desired lower end
position has been reached.
☞ Move the drive back to the upper position.
Filling the evaporator piston
Prior to filling the evaporator piston, a vacuum controller is used to re-
gulate the glass apparatus to the target pressure.
☞ Now fill the evaporator piston using the backfeed line.
☞ Due to the vacuum present, the solvent is suctioned into the eva-
porator piston. This enables you to keep solvent loss due to suc-
tioning to a minimum.
☞ You can also fill the evaporator piston manually prior to creating
the vacuum. The evaporator piston should not be filled more than
half its volume.
Note: CAUTION! The maximum allowed load (evaporator piston
and contents) is 3 kg.

Maintenance and cleaning

The device is maintenance-free. It is subject only to the natural
wear and tear of components and their statistical failure rate.
The seal on the glass condenser should be checked at regular in-
tervals and replaced if necessary.
For cleaning disconnect the main plug.
To clean the device use only water with a detergent that contains
tensides, or use isopropylalcohol for stubborn soiling.
24
Setting up the heating bath
Refer also to the operating instructions for the HB 10 basic /di-
gital heating bath!
☞ Move the lift to the bottom position and check the position of the
heating bath in relation to the evaporator piston. When using lar-
ger evaporator pistons (2 or 3 litres) or depending on the angle of
the rotation drive, you can move the heating bath 50 mm to the
right.
☞ Fill the heating bath with the tempering medium until the evapo-
rator piston is surrounded by tempering medium to 2/3 of its vo-
lume.
☞ Switch on the rotation drive and slowly increase the speed.
Note: Avoid creating waves.
☞ Switch on the heating bath using the main on/off switch.
Note: Avoid stress on the glass due to different evaporator piston
and heating bath temperatures when lowering the evaporator pi-
Fig.19
ston into the heating bath!
Note: If non-original accessories are used that are not supplied by
IKA, then it is possible that the 50 mm travel range provided by the
heating bath will not be sufficient. This applies in particular when
using 3 L evaporator flasks with foam brake.
Use the IKA RV 10.3000 mounting plate to extend the heating bath
travel range by 150 mm.
Fig. 20
Spare parts order
When ordering spare parts, please give:
- machine type,
- manufacturing number, see type plate,
- item and designation of the spare part, see www.ika.net, spare
parts diagram and spare parts list.
Repair
In case of repair the device has to be cleaned and free from any ma-
terials which may constitute a health hazard.
If you require servicing, return the appliance in its original packaging.
Storage packaging is not sufficient. Please also use suitable trans-
port packaging.
