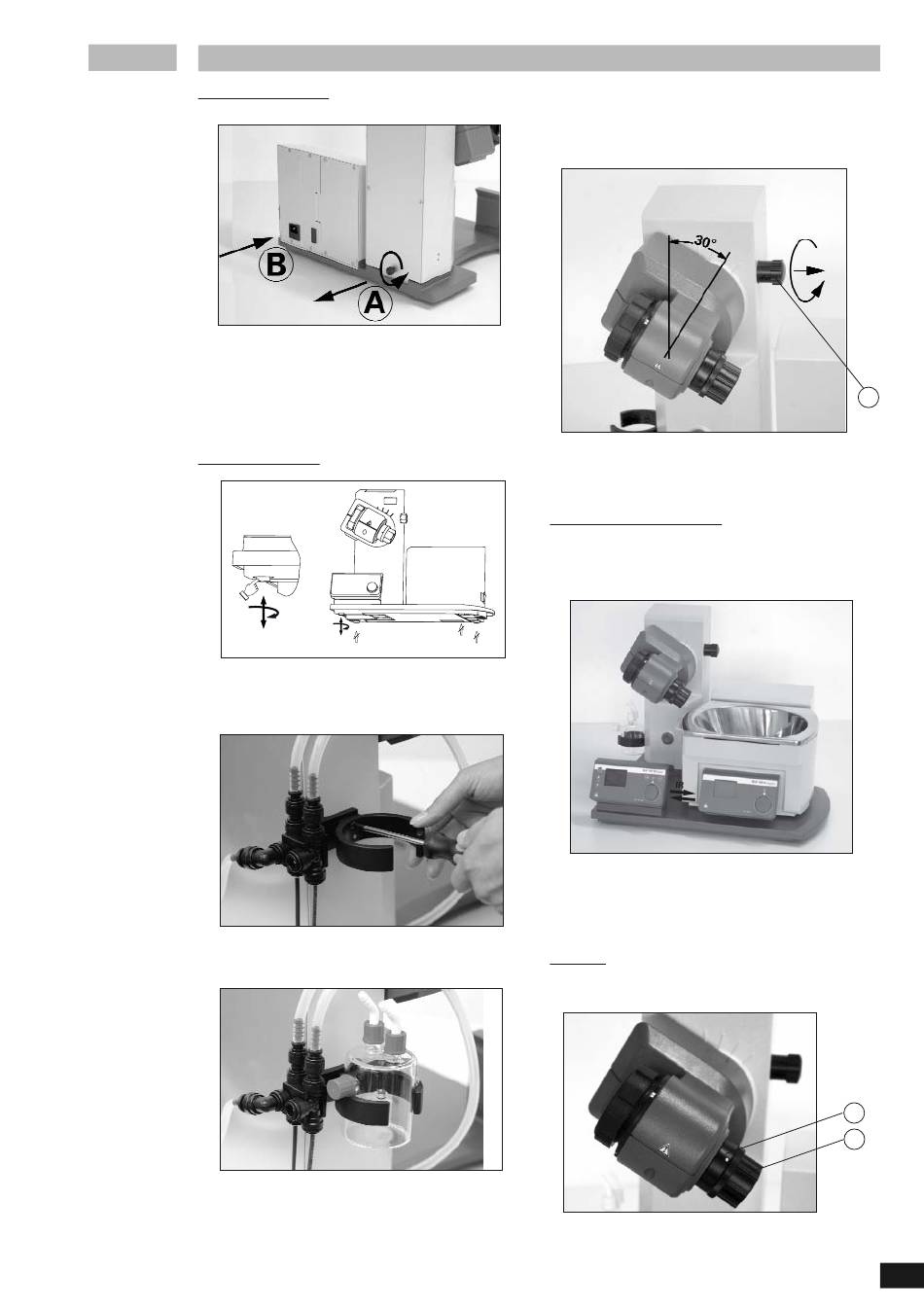

Setting up

Drive RV 10 basic/digital

CAUTION! Loosen transportation lock (fig. 4a)!
☞ Hold the lift with your hand on the height position and remove the
thumb screw on the back of the appliance (A).
☞ Once the transportation lock has been removed, the lift moves
slowly to its upper end position. The distance is approx. 140 mm.
☞ Connect the device to the power supply (B) using the supplied
power cord (B).
Adjustable base (Fig. 4b)
☞ Attach the bracket for the Woulff bottle to the left side of the lift
(fig. 5).
☞ Insert the bottle and attach the supplied hose connectors to the
bottle (fig. 6).
042009
☞ Remove the clamping device for the angle setting of the rotation
drive on the right side of the lift by rotating the knurled screw
counter clockwise (by lightly pressing and turning at the same
time, the knurled screw comes out farther).
☞ Set the drive at an angle of approx. 30° (fig. 7).
Fig. 4a
☞ Then secure the rotation drive from being accidentally turned by
tightening the knurled screw in a clockwise direction.
Heating bath HB 10 basic/digital
CAUTION! Refer to the chapter entitled "Commissioning" in the hea-
ting bath instruction manual!
☞ Place the heating bath on the stand of the rotation drive and push
it into the left position (fig. 8).
Fig. 4b
Note: Data is exchanged between the drive unit and the heating
bath by means of an infrared link. Please note that reliable com-
munication is only guaranteed when the infrared beam has clear
line-of-sight to the detector.
Fig. 5

Glassware

☞ Open the locking device on the drive head by turning it 60° coun-
ter clockwise (D), (fig. 9).
Fig. 6
C
Fig. 7
Fig. 8
D
E
Fig. 9
