☞ Feed the steam pipe in until it stops.
☞ Then lock the locking device by turning it clockwise by 60°
(fig. 10).
☞ Check the axial locking device on the steam pipe.
Push-off mechanism
The plastic screw nut (E) helps loosen tight-fitting piston ground-in
connections (Fig. 10).
☞ The plastic screw nut (E) helps loosen tight-fitting piston ground-
in connections (Fig. 10).
☞ To do so, hold the tight-fitting evaporator piston and turn the pla-
stic screw nut (E) until the evaporator piston neck.
Note: Prior to commissioning, hand-tighten the plastic screw nut
(E) left-aligned. This will hold the steam pipe locking device (D)
firmly in place.
☞ Place the RV 06.15 or RV 06.13 condenser seal in the condenser
receptacle and fit the glassware to the device according to the as-
sembly instructions (Fig. 11 a,b and c).
20
Prior to commissioning - Mounting the seal RV 06.15
☞ Insert vapour tube (1).
☞ Insert seal RV 06.15 (2).
☞ Mount the cooler (3a).
☞ Tighten the cap nut hand-screwed. Start the device at 120 rpm for
20 minutes. Then tighten the cap nut firmly (3b).
E

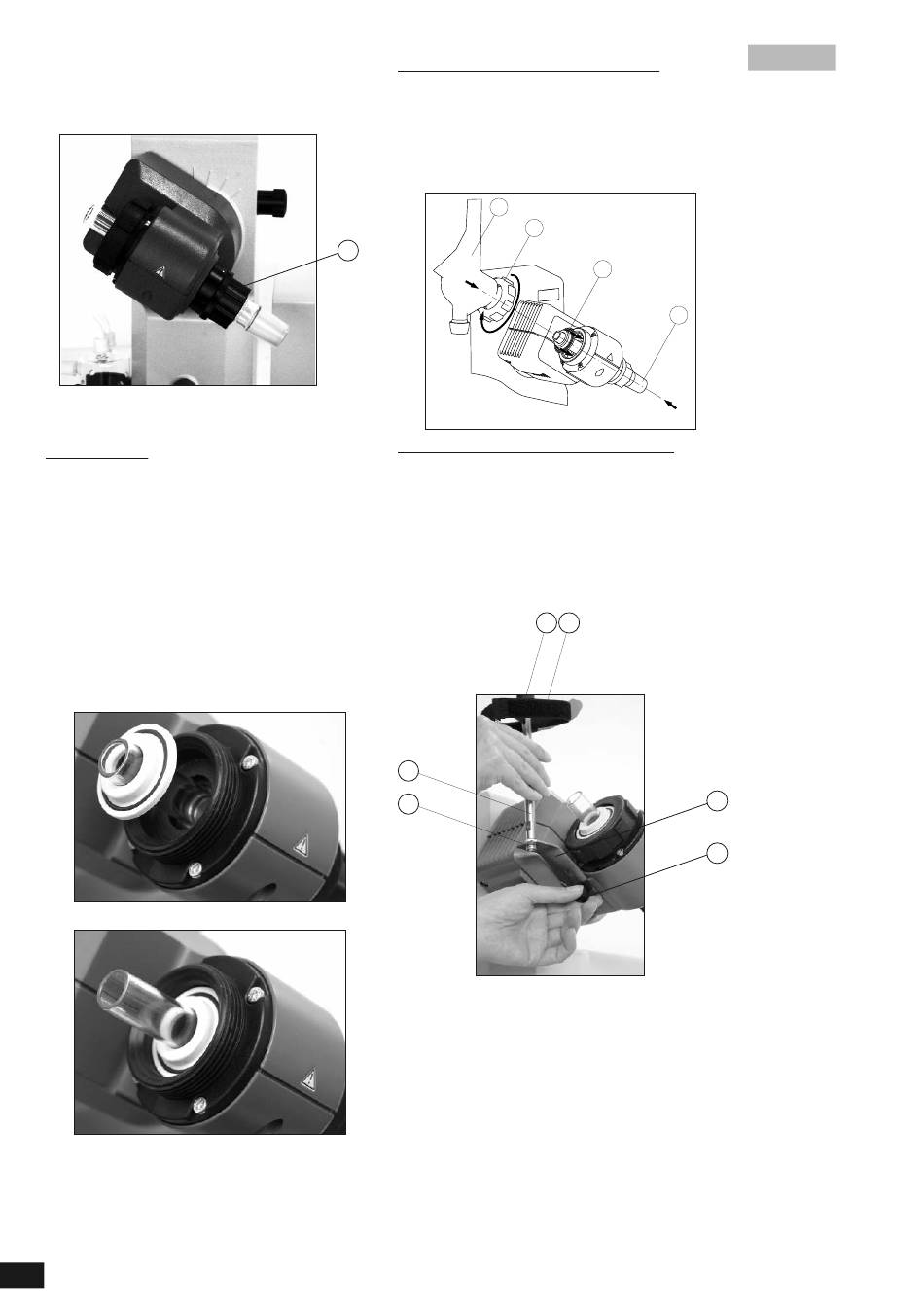

Fig. 10
Assembling the vertical glassware cooler locking device
☞ Assemble the condenser locking device according to the diagram
(fig. 12).
☞ Mount the plate (A) using the thumb screw (B).
☞ Put the support rod (C) on the plate (B) and attach it with the
screw nut (D).
☞ Attach the rubber protector (E).
☞ Fasten the Velcro band (F) to the support rod (C).
☞ Secure the vertical glassware with the Velcro band (F).
C
D
Fig. 11a
Fig. 11b
3a
3b
2
Fig. 11c
E F
Fig. 12
1
A
B
