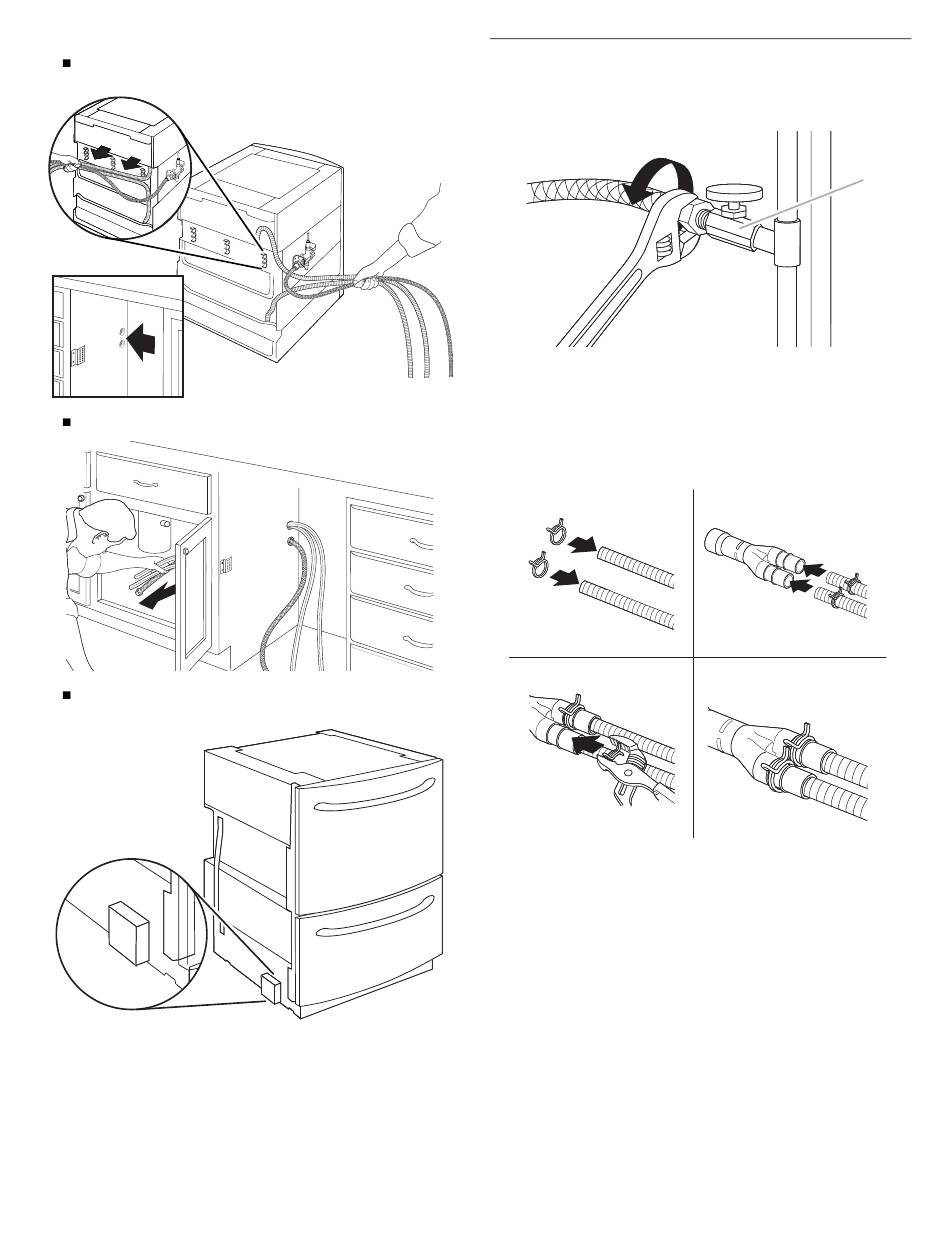

Option 2: Left-hand side utility access
For left-hand routing, remove drain hoses from the clips in
the rear bracket as shown.
Route water supply line and drain hoses into the cabinet.
Slide dishwasher partway into the cabinet opening. Allow
for access to the electrical terminal box.
10
Connect Water Supply Line
and Drain Hoses
1. Connect water supply line to the water valve under the sink.
A. Hot water supply
2. Slide clamps onto drain hoses (Figure A). Do not cut drain
hoses.
3. Push hoses into Y drain connector until fully seated (Figure B).
Several "clicks" will be heard.
4. Slide clamps into position (figures C and D).
A
C
5. Connect the drain hose using one of the following options:
A
B
D
