4.3

Connection of the RS-485 connector to the the Control Touch controller

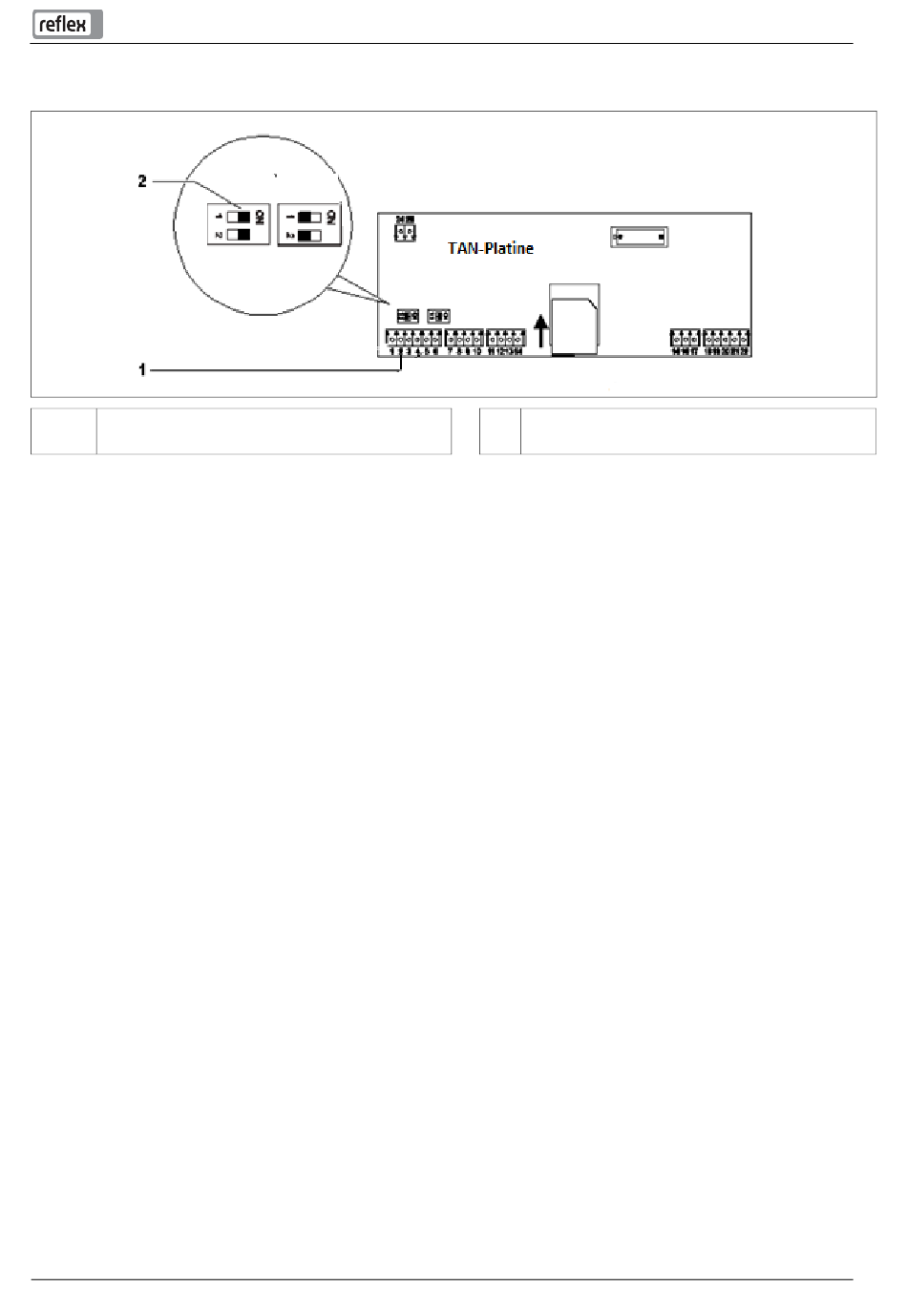

Connection plan of the Control Touch controller.
1 Connection terminals for RS‐485 connection
Proceed as follows:
1. Open the control cabinet of the Control Touch controller.
2. Fit the top hat rail adapter on the Reflex Control Remote.
3. Secure the Reflex Control Remote on the top hat rail.
Connect the TAN PCB (in the upper part of the controller) to the Reflex Control Remote using
the supplied
o Connection at terminals 1, 2(TAN PCB)
o RJ45 jack on the Reflex Control Remote
4. Route a LAN cable through a cable penetration and connect it to the Reflex Control Remote.
5. Connect the power supply.
o Use the supplied mains adapter.
6. Activate the terminators on the main board of the Control Touch.
o Use DIP switches 1 and 2.
RS485 cable.
Control Remote — 09.11.2015
2 DIP switches 1 and 2 in active position
• The terminators are activated
Connection
