2. Design and function / 3. Safety

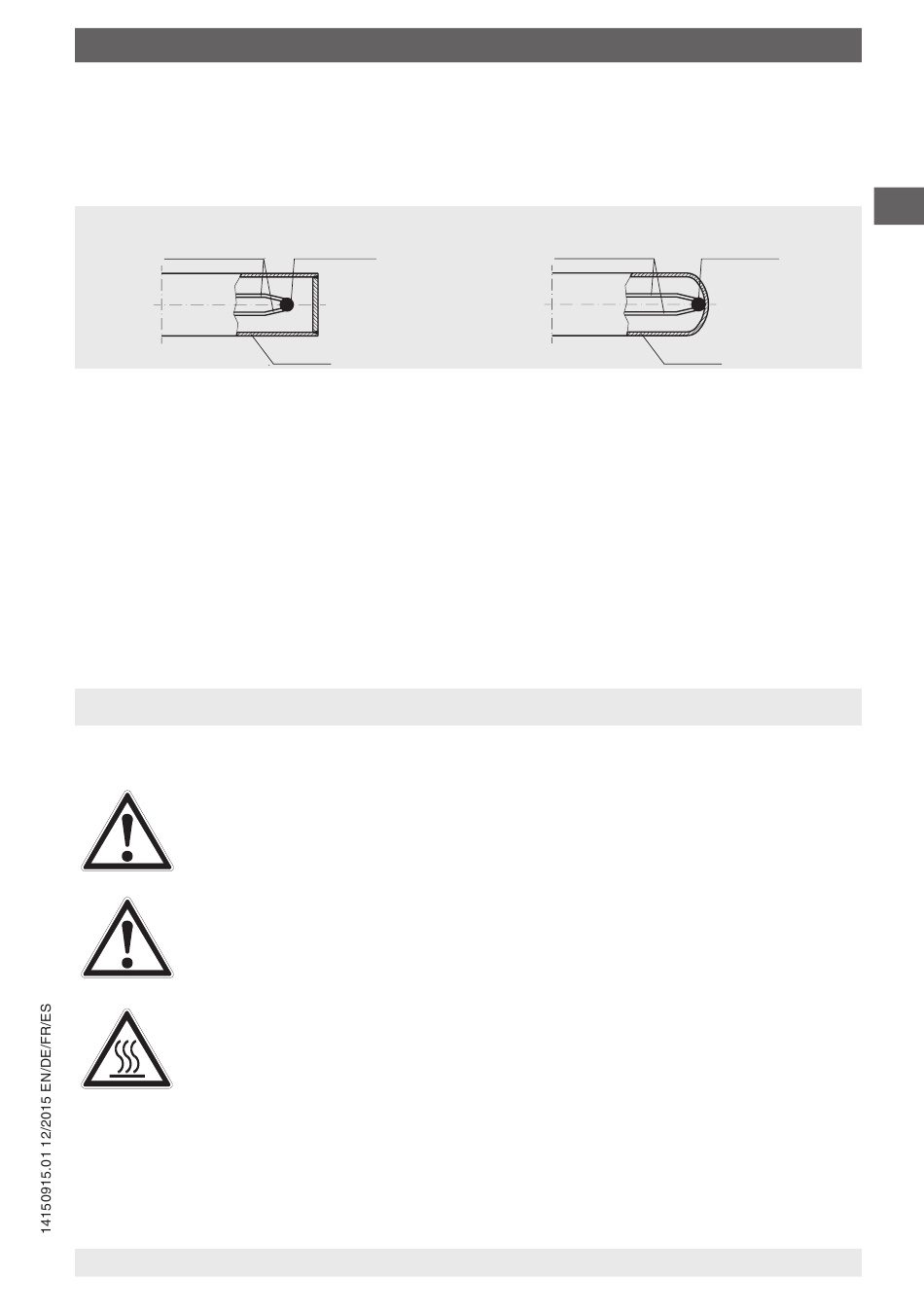

Thermocouples, non-insulated (grounded)
For special applications, for example surface temperature measurements, the sensors are
in direct contact with the protective sleeve, or the measuring points of thermocouples are
welded to the bottom.
Insulated measuring point (ungrounded)
Thermocouple
Electrical connection
In terms of connection, the thermometer has a case and a plug or bare wire ends. The case
design will contain the connection terminals or certified transmitters. Optionally, separately
certified digital displays can be built into the cases.

2.2 Scope of delivery

Cross-check scope of delivery with delivery note.

3. Safety

3.1 Explanation of symbols

WARNING!
... indicates a potentially dangerous situation that can result in serious injury
or death, if not avoided.
CAUTION!
... indicates a potentially dangerous situation that can result in light injuries or
damage to equipment or the environment, if not avoided.
WARNING!
... indicates a potentially dangerous situation that can result in burns, caused
by hot surfaces or liquids, if not avoided.
WIKA operating instructions RTD and TC
Measuring point
Sheath
Non-insulated measuring point (grounded)
Thermocouple
Measuring point
Sheath
5
EN
