Installation
5. To separate the primary pump from the discharge pipe:
5A. For applications with hose couplings: remove
the coupling clamps with a nut driver.
5B. For applications without rubber couplings: cut
the PVC discharge pipe with a hacksaw above
the basement floor, at a comfortable level. New
rubber couplings are included for reassembly.
See Figure 1 on Page 4.
NOTICE: The discharge pipe is filled with water.
Drain the water from the discharge pipe assembly.
Keep the work area dry.
Risk of pinching hands or fingers. To
avoid a hand injury from a collapse of plumbing,
support the pipe above the separation before cutting
or disassembly. See Figure 1.
6. Lift the primary pump and discharge pipe assembly
out of the sump.
Risk of electrical shock. Do not lift the
pump by the electrical cord; lift pump only by the
lifting ring, discharge pipe, or handle on the pump.
Lifting by the cord can damage the cord.
INSTALL BACKUP PUMP
There are two ways to install the Battery Back-up Pump.
Method A and Method B. See Figure 3 to determine
which method to use. Both methods are acceptable.
Sump Pit Sump Pit
Diameter No Diameter
at base ≥ 18"? at base ≥ 13.5"?
Yes
Sump Pit Depth Sump Pit Depth
≥ 18"?
No
Yes
Method A

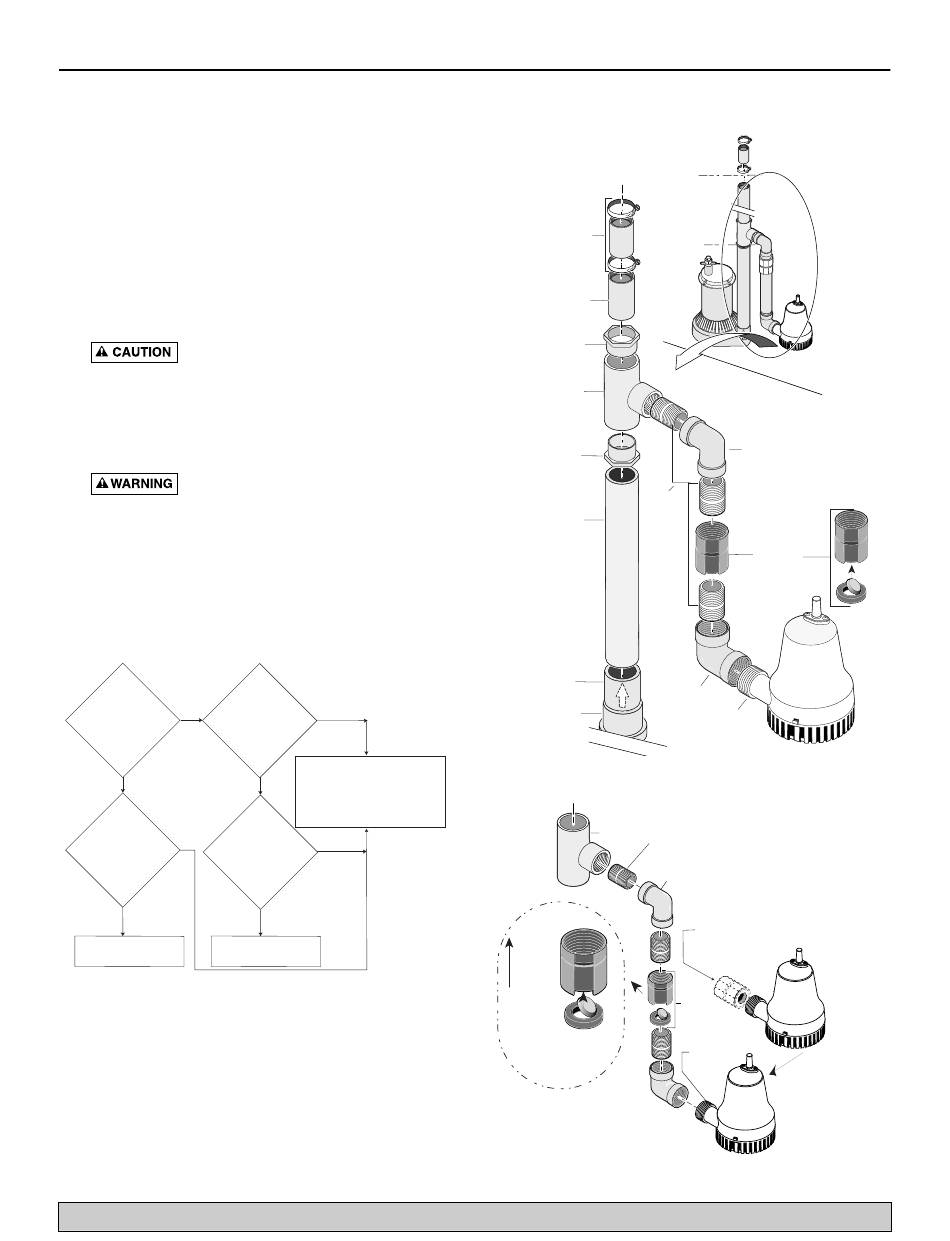

Figure 3 - Choose an installation method
Method A
Method A suggests installing both of the pumps on the
floor of the sump pit. See Figure 4. The minimum required
sump basin diameter, at the bottom of the pit and the rec-
ommended depth of the sump basin is 18".
Some additional materials you will need are 2 1-1/4" 90°
elbows and 2 1-1/4" close pipe nipples.
For parts or assistance, call Flotec Customer Service at
No
BBU System may still
Yes
be installed but the
installation may need
to be changed.
No
≥ 22"?
Yes
Method B
Backup Pump Installation
(Method A)
Not to Scale
First Cut:
Switches and
Wiring omitted
for clarity
Hose Coupling
Second Cut:
with Clamps
at Marked
Water Line
Cut-Off piece of
discharge pipe.
1-1/2"x1-1/4"
Reducer bushing
Tee
1-1/2"x 1-1/2"
slip x 1-1/4" FNPT
1-1/2"x1-1/4"
Reducer
bushing
Close
Pipe
Short Length
Nipple
of Discharge Pipe
(1-1/4"
(may vary)
x 1-1/4")
(1 Nipple
is included
with the
back-up
pump
Primary Sump
package)
Pump Check Valve
to prevent
recirculation
into the sump.
Primary Pump
Discharge Port
Figure 4 - Method A installation diagram
Tee Close
Pipe
Nipple
Elbow
Water
Flow
through
valve
(The valve
flap opens
away from the
pump outlet)
Figure 5 - Remove the pre-assembled check valve
1-800-365-6832
1-1/4" Elbow
Check Valve
Assembly
1-1/4"
Elbow
Back-up Pump
Discharge Port
Battery Back-up Pump comes
preassembled with the check
valve assembly installed on the
discharge.
Remove this check
valve assembly.
Check
Valve
Assembly
Back-up Pump
Discharge
