2.7 Initial Filling and Rinsing

The dosing unit and the tubes are already mounted and ready-to-use. After the reagent bottle is
connected, the initial filling of the dosing unit can be performed. While performing the initial filling or
washing program, an adequately sized waste bin has to be placed below the titration tip.

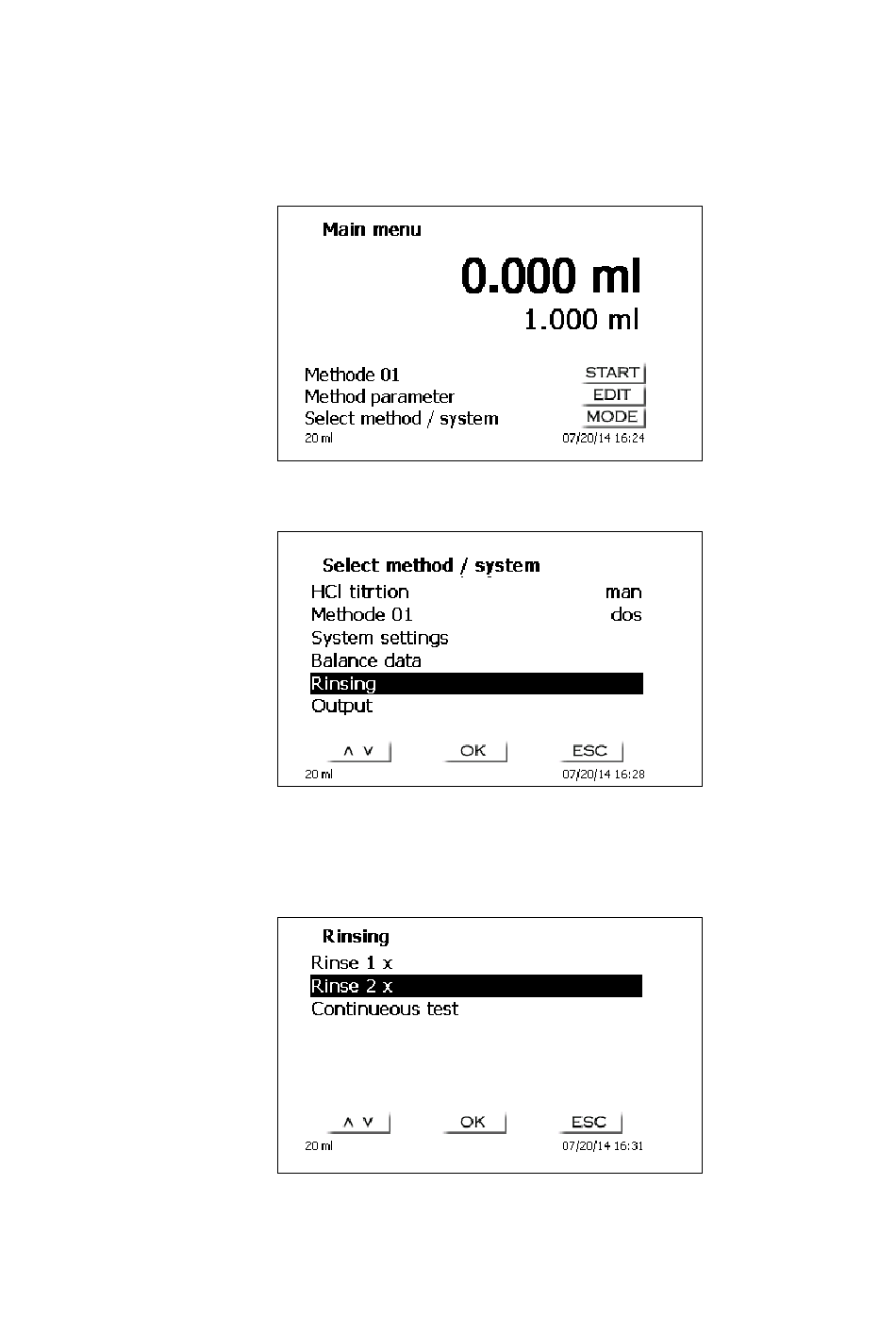

On the main menu (fig. 9)
Fig. 9
Press <MODE> key and select Rinsing:
Fig. 10
Confirm the selection by pressing <OK>.
At this point you can select the number of rinsing cycles (Fig. 11). Initial filling requires a minimum of
two rinsing cycles. You can stop the rinsing operation (Fig. 12 and 13) at any time by pressing
<STOP> and then resume rinsing with <START>.
Fig. 11
The device fills first before the rinsing procedure starts:
