dirna Bergstrom bycool green line COMPACT 3.0 Instructions De Montage page 28

COMPACT 3.0
EN

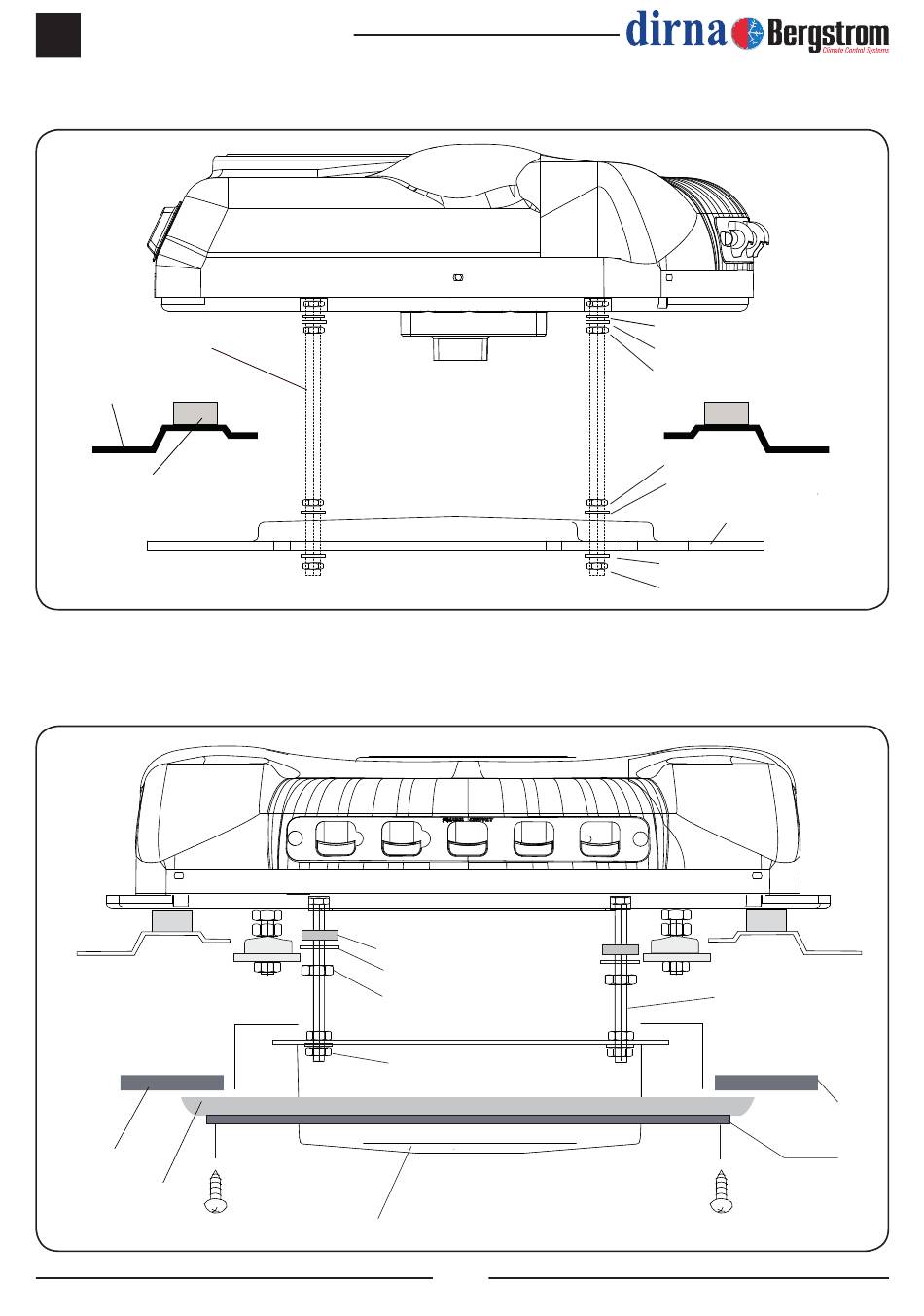

Exploded side view to supports fastening
M8 x125x100 / 120
Studs
Cabin roof
EPDM Joint 25 mm.
Exploded rear view to consoles fastening
Upholstery
Original console
frame
Rubber washer Ø6
Ø6 Wide wing flat washer
M6 Nut
M6 Nut
Interior air distribution panel
28
Air conditioning for vehicles
ø 7 Rubber washer
wide wing flat washer ø 8
M8 Nut
M8 Nut
Wide wing flat washer ø 8
Fastening support
Wide wing flat washer
M8 self-blocking nut
M6 Studs
Console
(8) 3.5x16
Self-tapping screws
Upholstery
