Tensioning The Ribbed V-Belt - Stihl TS 700 Notice D'emploi

N

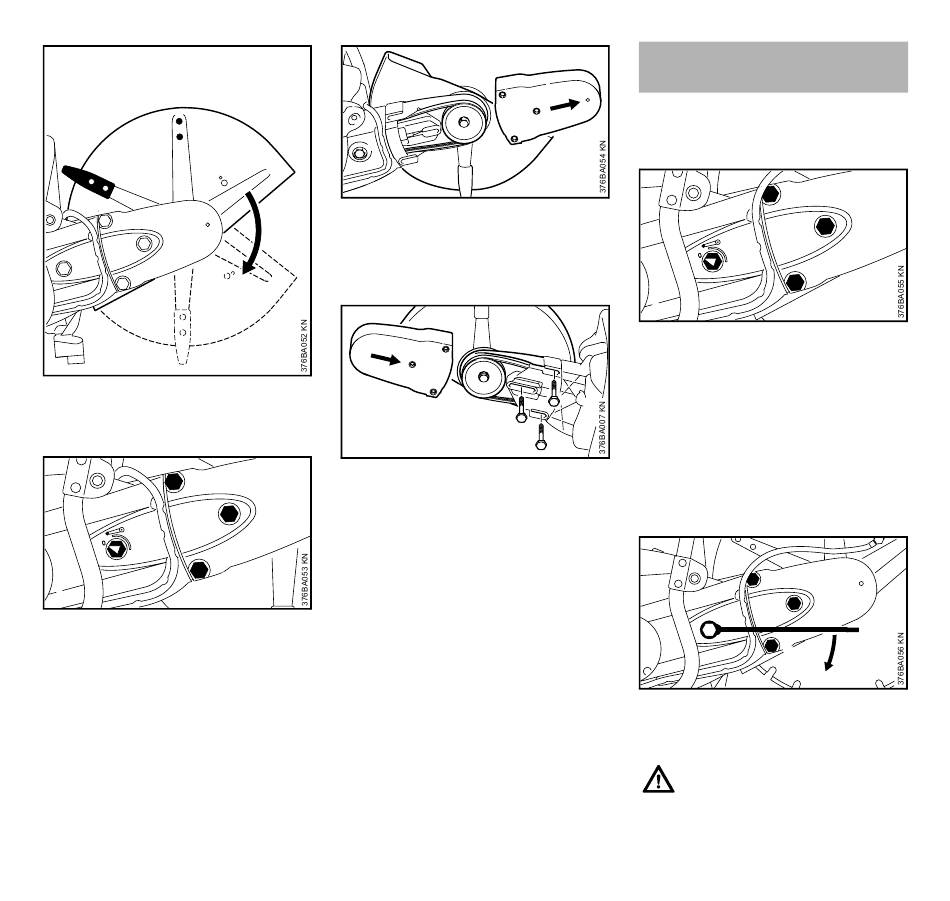

Turn the guard in the direction of the
arrow until the adjusting lever points
downwards
4
4
5
4
N
to relax the poly V-belt, loosen the
hexagon head screws (4)
N
Turn the tensioning nut (5)
counterclockwise with the
combination wrench –
approx. 1/4 turn, as far as it will
go = 0
N
Remove the hexagon bolts
TS 700, TS 800
6
7
N
Pull the V-belt guard (6) off to the
front and remove the poly V-belt
from the front pulley
N
Remove the "bearing and guard" (7)
7
N
Fit the "bear with guard" (7) on the
outboard side of the cast arm - at
the same time, guide the poly v-belt
over the belt pulley
N
Slide on the V-belt guard
N
Line the threaded holes in the
bearing up with the oblong holes in
the cast arm and with the holes in
the V-belt guard
N
Screw in the hexagon bolts, but do
not tighten them yet
N
Refit the water attachment parts to
the guard
Continue as described in the chapter
"Tensioning the V-belt".
Tensioning the ribbed
V-belt
This machine is equipped with an
automatic spring-action V-belt
tensioning device.
1
1
2
1
Prior to tensioning of the ribbed v-belt,
the hexagon head screws (1) must be
loosened and the arrow on the
tensioning nut (2) must point to 0.
N
otherwise loosen the hexagon head
screws (1) and the tensioning
nut (2) with the combination wrench
counterclockwise –
approx. 1/4 turn, as far as
possible = 0
1
1
1
N
to tighten the ribbed v-belt, fit the
combination wrench over the
tensioning nut as illustrated
The tensioning nut is spring-
loaded – hold the combination
wrench securely.
