Disassembly of OEM Tail Unit:
Disconnect the wiring connector going to the OEM number plate light unit located
-
under the passenger seat.
- Remove the OEM tail unit via the four bolts on the tail unit/ undertray of the
motorcycle.
- Once removed, un-screw all visible bolts on the OEM Tail Unit, disassemble the
unit, then remove the OEM indicators for later use.
- Also remove the sub-loom for use with the R&G tail tidy.
- Re-assemble the OEM Tail unit without the indicators and store away safely.
Tail Tidy Assembly:
- Insert the supplied rubber bung into the 1" hole on the tail tidy bracket.

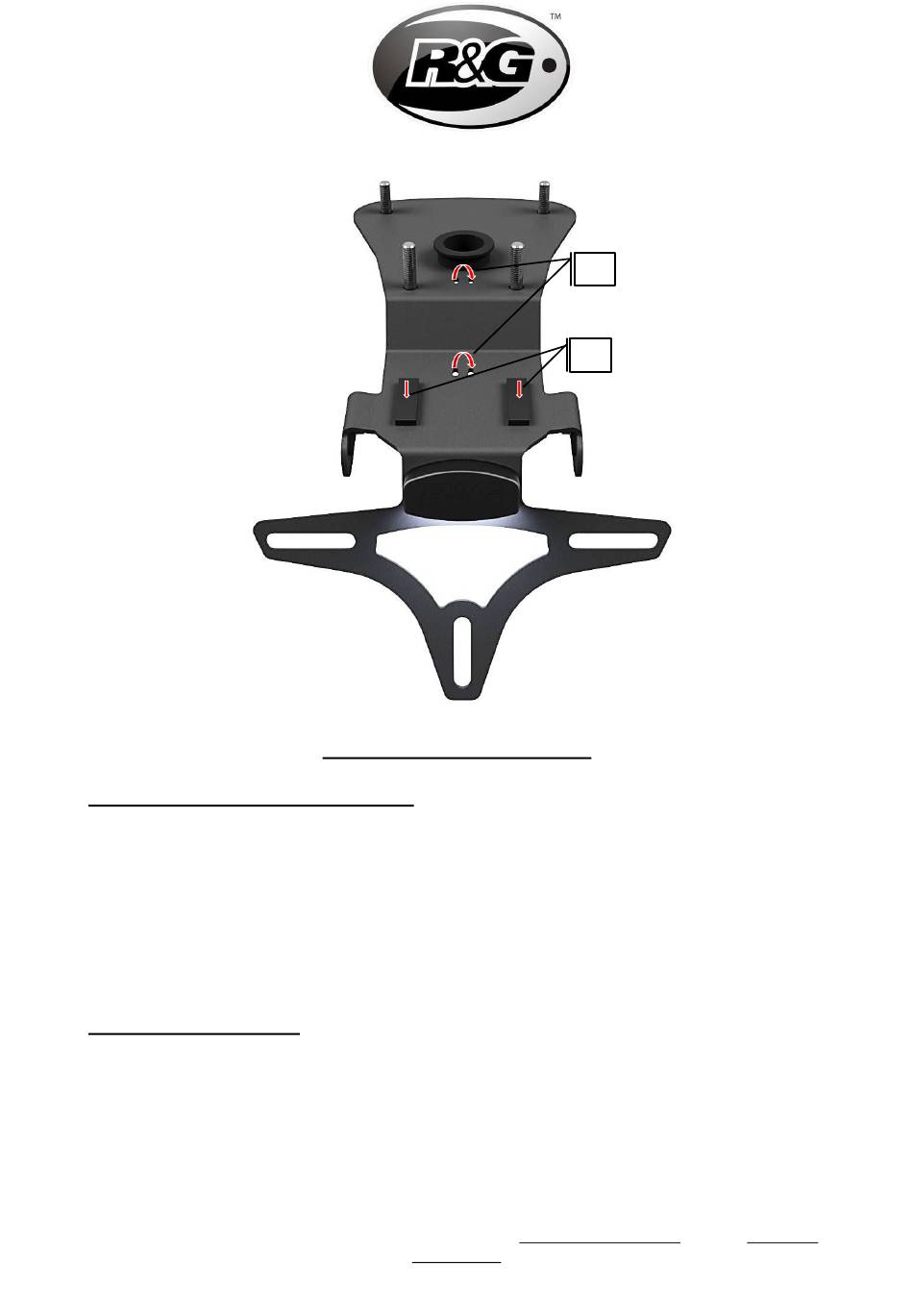

- If required cut the supplied self-adhesive foam strips to a similar size shown in the
assembly diagram above and stick in the position shown.
- Fasten the supplied R&G number plate light to the tail tidy assembly.
- Bolt the OEM indicators onto the tail tidy, using the supplied nyloc nuts and washers
with the OEM bolts.
