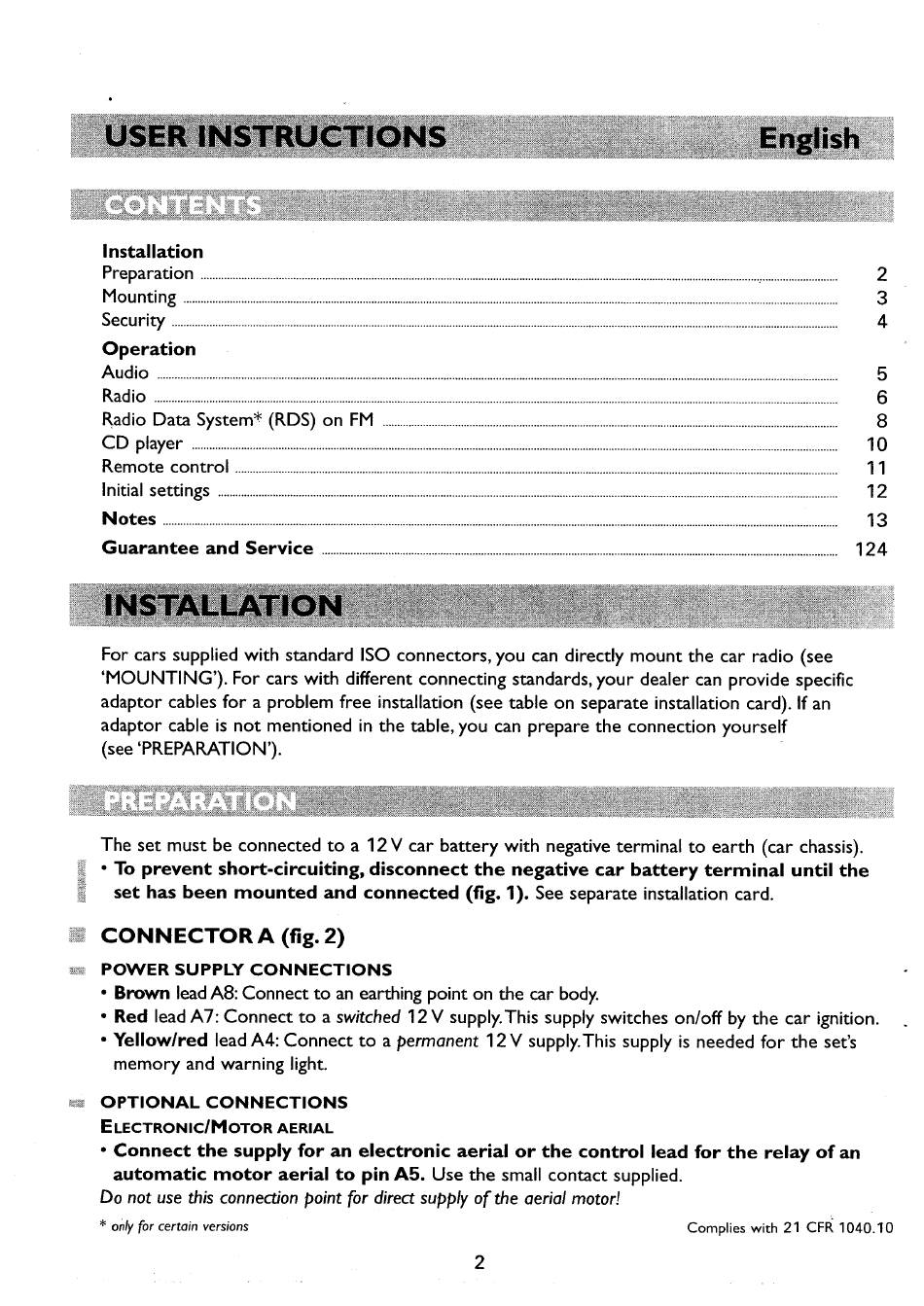

Philips RC609 RDS Mode D'emploi page 2

SER INSTRUCTIONS
Installation
Preparation
Mounting
Security
Operation
Audio
Radio
Radio Data System
CD player
Remote control
Initial settings
Notes
Guarantee and
iANSTALLATION
For cars suppliedwith standard ISO connectors,you can directly mount the car radio (see
'MOUNTING'). For carswith different connecting standards, y our dealer can provide specific
adaptor cablesfor a problem free installation(see table on separateinstallationcard). If an
adaptor cable is not mentioned in the table, you can prepare the connection yourself
(see'PREPARATION').
*PREPARATION
The set must be connectedto a 12 V car battery with negativeterminal to earth (car chassis).
• To prevent short-circuiting,
set has been mounted
CONNECTOR
POWER SUPPLY
• Brown leadA8: Connect to an earthing point on the car body.
• Red leadA7: Connect to a switched12 V supply. T his supplyswitches on/off by the car ignition.
• Yellow/red leadA4: Connect to a permanent12 V supply. T his supplyis neededfor the set's
memory and warning light.
OPTIONAL CONNECTIONS
ELECTRONIC/MOTOR
• Connect the supply for an electronic aerial or the control lead for the relay of an
automatic motor aerial to pin A5. Use the small contact supplied.
Do not use this connectionpoint for direct supply of the aerial motor!
* only for certain versions
* (RDS) on FM
Service
disconnect
and connected
A (fig. 2)
CONNECTIONS
AERIAL
the negative car battery
(fig. I). See separate installation card.
