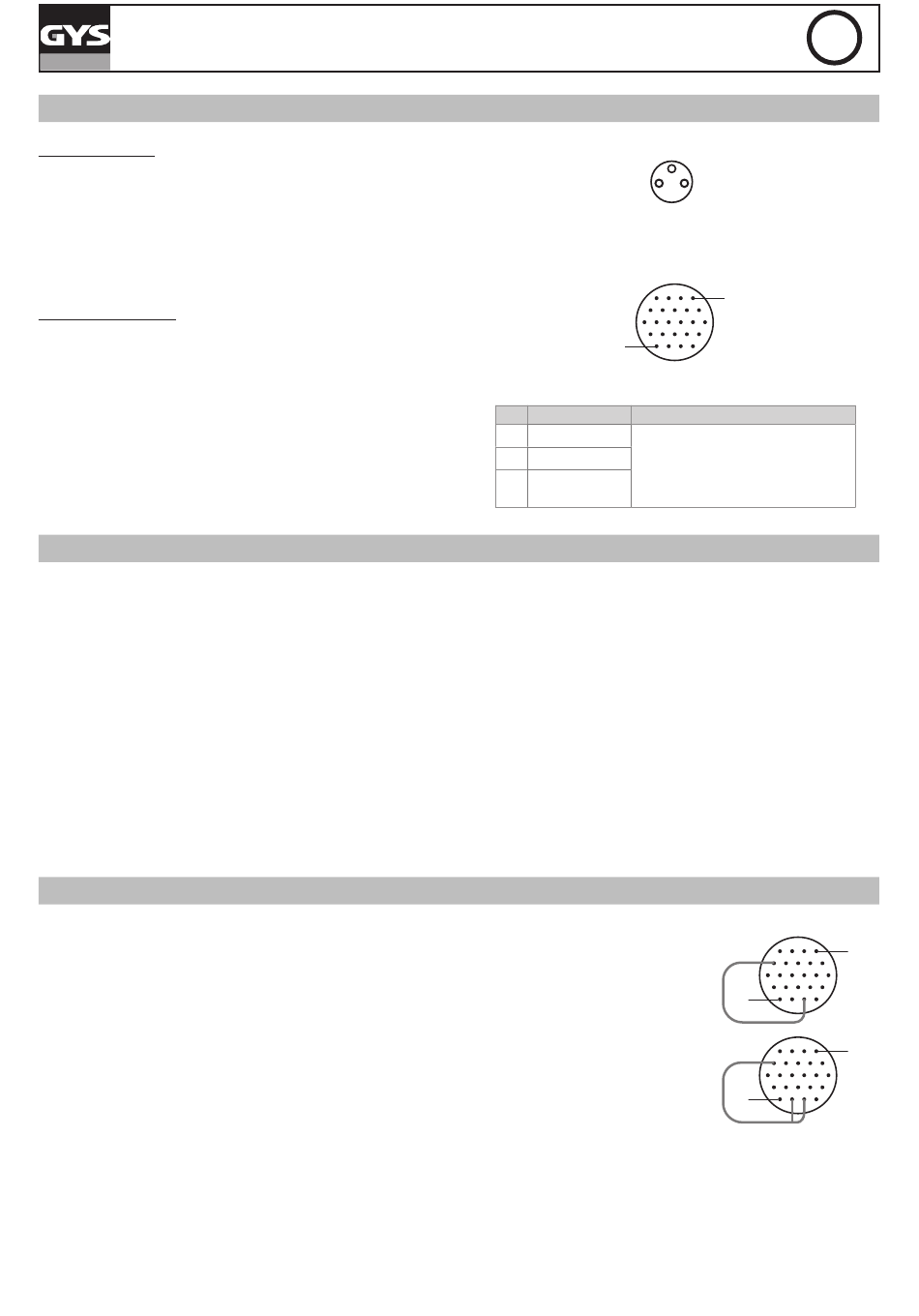

CONNECTOR SPECIFICATION FOR COLLISION SENSOR
SMARTFEED M-4 :
The SMARTFEED M-4 is equipped with a collision sensor connector on the front panel (I-4).
The plug is an M8 / 3-pole connector.
Voltage: 24 VDC
Max current: 250mA
SMARTFEED MB-PP :
The SMARTFEED MB-PP is equipped with a collision sensor connector on the front panel (I-4).
The connector is a 24-pin plug.
The collision input operates on 24V.
TORCH COMPATIBILITY
• The SMARTFEED M-4 is compatible with all standard robotic torches (excluding Push-Pull) with a EURO connection.
• The SMARTFEED MB-PP can accommodate 3 types of torches:
- Standard robotic torches without Push-Pull (EURO connection).
Compatible with all brands.
- Push-Pull DC robotic torches (EURO connection / max. voltage 42V / without encoder).
Compatible with the WH PP torch from BINZEL.
For all other brands or torch specifications, please contact us.
- Push-Pull DC robotic torches (EURO connection / max. voltage 42V / with encoder).
For all other brands or torch specifications, please contact us.
- Push-Pull BRUSHLESS robotic torches (EURO connection / max. voltage 42V / hall effect sensor).
Compatible with the MPP OA PUSH PULL torch from BINZEL.
For all other brands or torch specifications, please contact us.
The configuration of the torch type is done by wiring on the torch connector, see following pages.
TORCH TYPE CONFIGURATION AND TORCH WIRING (MB-PP ONLY)
The SMARTFEED MP-PP is configured by default to work with standard torches without motors.
1 - When using the BINZEL DC, WH PP torch:
Connect pins 22 (DETECT_PP) and 9 (GND) together on the 24pts connector of the torch.
2 - When using the BRUSHLESS, MPP OA PUSH PULL torch from BINZEL :
Connect pins 22 (DETECT_PP), 23 (TYPE_MOTEUR) and 9 (GND) together on the 24pts connector of the torch.
14
SMARTFEED M-4 / MB-PP
4 (N/O)
3 (-)
(view from wire
feeder)
24
(view from wire
feeder)
Function
Pin
Product name
GND
13
Collision sensor
14
24 VDC
(dry contact between 24 Vdc and
Collision or
signal)
15
Signal
EN
1 (+)
1
1
24
1
24
