SYMBOLOGY
Volts
Direct Current
WARNING
and property damage, work on
deenergized lines when possible. Tool
is not insulated. Should work on
energized lines be required, ensure all
proper precautions, including those
contained in NFPA 70E, have been
taken first.
WARNING
moving parts. Laceration and
amputation can occur.
To reduce the risk of injury, wear safety
goggles or glasses with side shields
when operating or servicing the tool.
Read Operator's Manual
UL Listing for Canada and U.S.
SPECIFICATIONS
Cat. No. ...................................................2875R-20
Volts .............................................................. 18 DC
Battery Type .................................................M18™
Charger Type ................................................M18™
High Voltage Field Rating ........................... 34.5 kV
Force Output.................................................. 13.1T
Maximum Cable Cutting Diameter.......5" (127 mm)
Cable materials* ..........................Communications,
Copper and Aluminum Power Cables
Module/FCC ID ....................P36-2875/25187-2875
Weight ...........................................................36 lbs
Weight ...........................................................40 lbs
(With M18™ HD12.0 battery pack)
Recommended Ambient
Operating Temperature .................... 0°F to 125°F
Replacement Blades Cat. No. ............. 49-16-2875
3H-Rated Grounding Ball Stud Cat. No. 14-20-9400
Remote Cat. No. ................................. 14-46-9995
Volts ...................................... 6 DC (1.5 V AA x 4 )
FCC ID .................P36-22802875/25187-22802875
* Do not cut steel ropes, ground rod, guy wire, or
steel-reinforced cable (ACSR)
To reduce the risk of
arc flash, electric shock
Keep hands away from
all cutting edges and
Armored, Lead Sheath,
(Tool-Only)

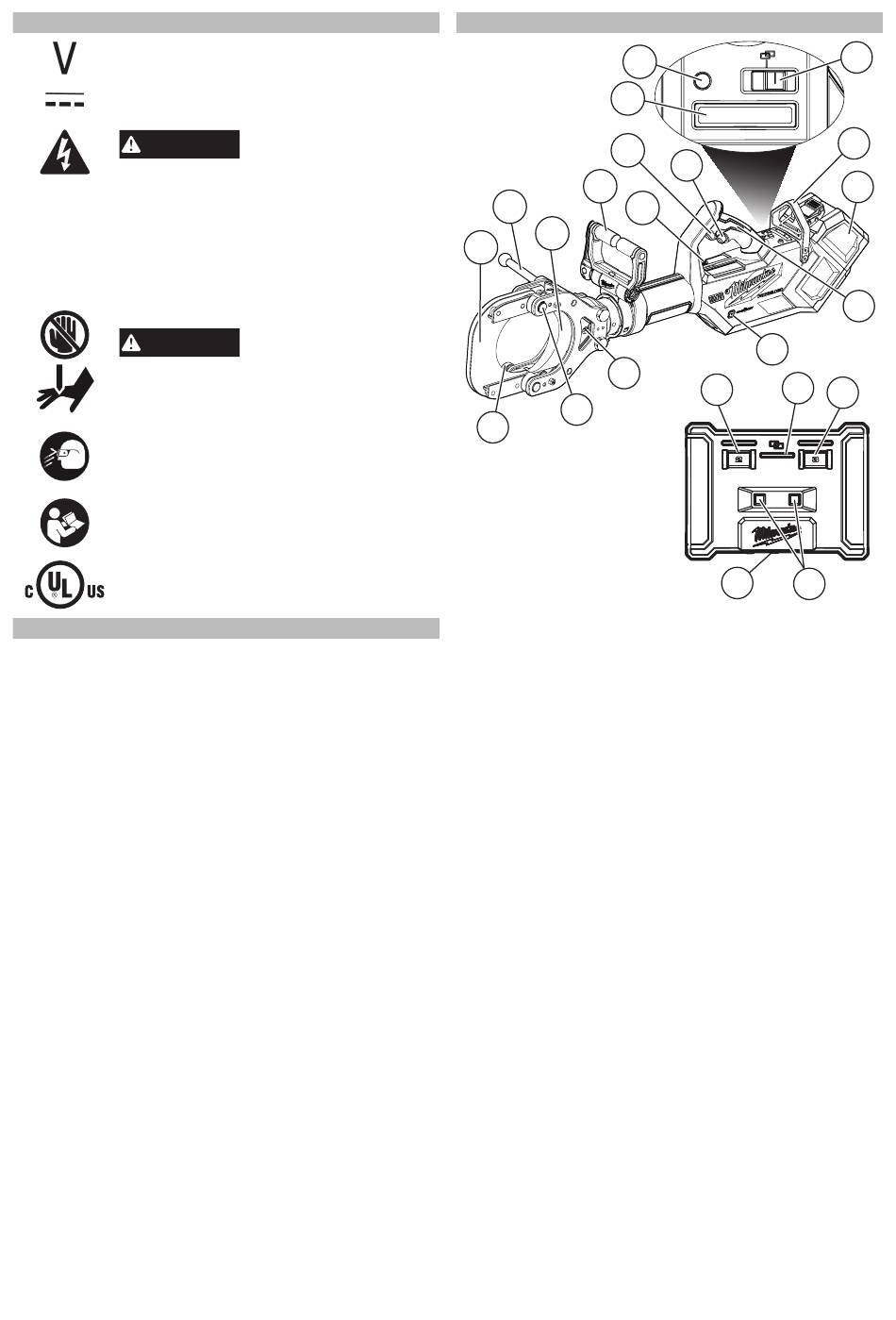

FUNCTIONAL DESCRIPTION
4
2
3
1
15
16
17
1. Fixed blade
2. 3H-Rated
grounding ball stud
3. Ram blade
4. D-handle/Front hanger
5. Manual release button
6. Trigger
7. Release trigger
8. Beacon LED
9. Remote lockout
button
10. Mode selector
11. Rear hanger
12. Battery door
13. Handle
14. ONE-KEY™ LED
15. Ram blade screw
4
9
8
6
7
5
14
19
18
22
16. Jaw retaining clevis
lever/snap ring
17. Front jaw locking knob
18. Button 2
19. Connection LED
20. Remote cut indicators
21. Button 3
22. Remote power switch
10
11
12
13
20
21
