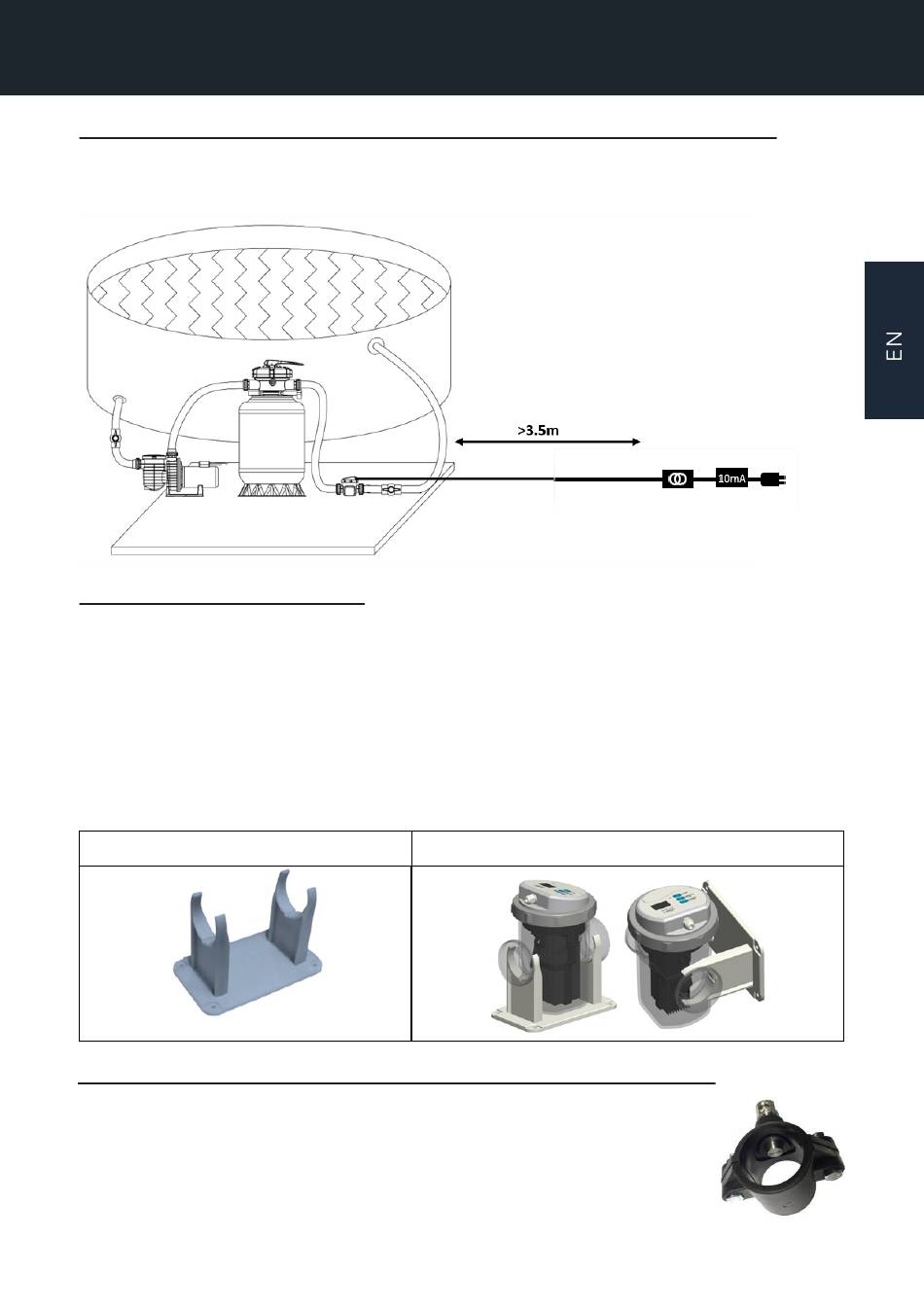

Hydraulic connection case 2 : Using D38mm or D32 pipe
When using this type of pipe, another length of pipe, minimum 50cm (not supplied), equivalent to
the one in place must be added to the outlet of the filter; consider adding a valve (if not already
present) just after the chlorinator to be able to isolate this section and facilitate maintenance.
POOL
FILTER
PUMP
Electrical connection
The power supply of the salt chlorinator must be connected to a separate power source equipped
with a 30mA residual current device, sheltered from the rain and at least 3.5 m away from the pool.
In the event of tripping the residual current device, check system integrity before resetting. In case
of doubt, contact a professional.
The salt chlorinator must be plugged into an outlet located in a well-ventilated area to prevent
overheating.
Do not install in places where water can easily ingress to prevent damage to the electrical compo-
nents caused by humidity or rain. A wall or floor mounting bracket is
Mounting bracket ref. CL-TSLFIX
Supplementary electrical bonding (pool earthing)
In order to protect the metal components (including stainless steel) in contact
with the water of your pool, it is strongly recommended to install supplementary
bonding (POOL EARTHING) (product ref. CL-POOLTERRE50 - not supplied)
which is separate from the earthing system of your house in order to carry
residual current from your pool equipment to the ground. This current can
lead to serious galvanic corrosion. (Ground cable not supplied)
INSTALLATION
Using the wall or floor mounting bracket
supplied
(ref.: CL-TSLFIX).
31
