Delta CONTROL BOX REPLACEMENT Mode D'emploi page 5

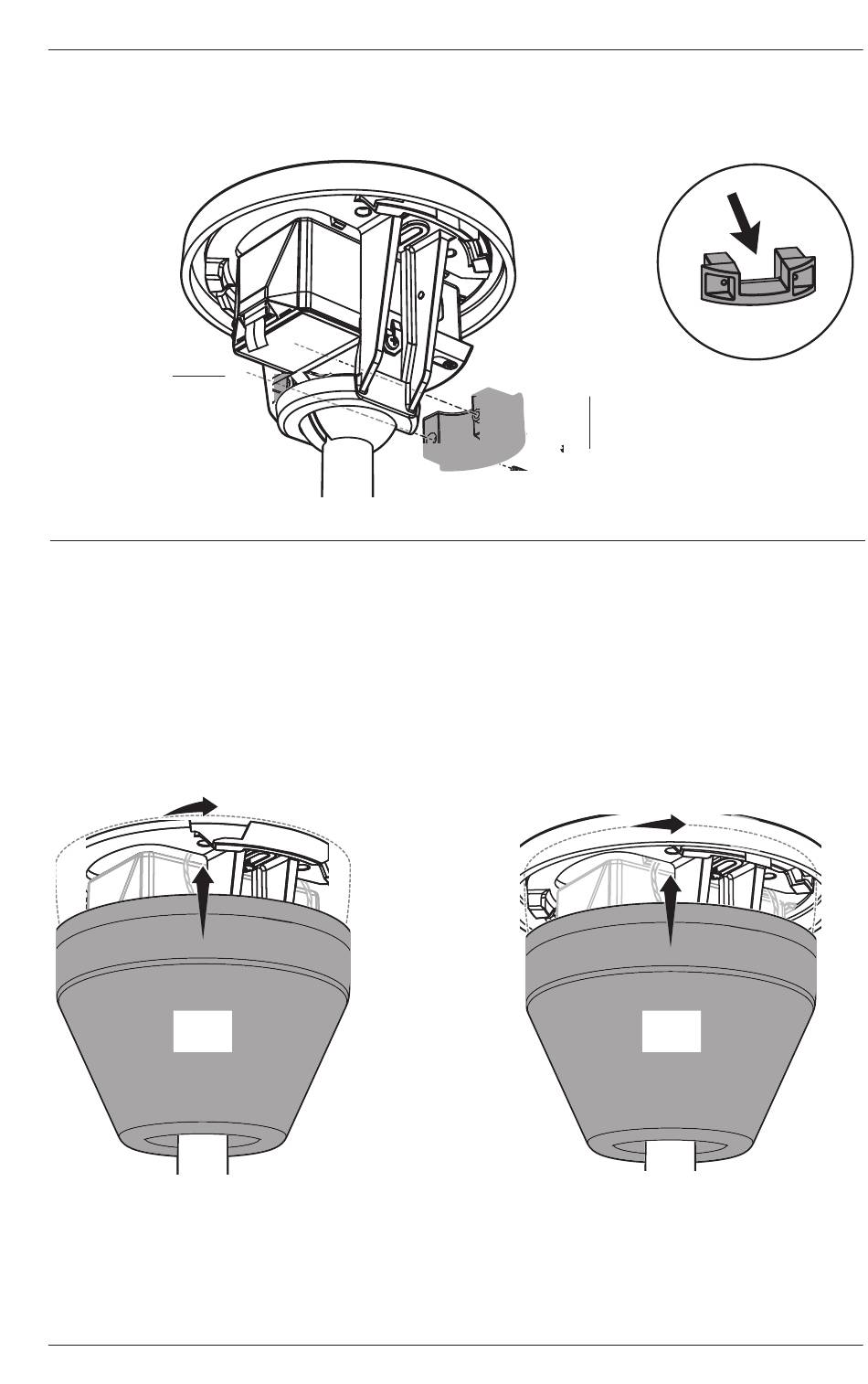

Fig. 6b
Fan Stabilizer
Block
7. Secure wiring cover
Slide wiring cover up the downrod, aligning tabs on inside of wiring cover with slots
on mounting bracket so that top of wiring cover sits flush with mounting bracket. Make
sure all wires and the safety cable are tucked into wiring cover, and then twist wiring
cover clockwise to lock (Fig. 7a, Fig. 7b).
Fig. 7a: Fans without Mounting
Bracket Cover
Wiring
Cover
OR
OR
© 2023 DELTA T LLC. ALL RIGHTS RESERVED.
CONTROL BOX REPLACEMENT
M3 x 20 mm
Screw
Fig. 7b: Fans with Mounting
Bracket Cover
Wiring
Cover
Wiring Channel
