CONTROL BOX REPLACEMENT
6. Reinstall fan stabilizer (if applicable)
If your fan has a fan stabilizer, insert one fan stabilizer block between bottom of control
box tray and top of mounting ball (Fig. 6a, Fig. 6b). Route wires and safety cable from
downrod through wiring channel in stabilizer block (Fig. 6a, Fig. 6b).
Insert the second fan stabilizer block between bottom of control box tray and top of
mounting ball. Secure with the two stabilizer screws and tighten screws until snug (Fig.
6a, Fig. 6b).
Refer to the appropriate illustration for your fan stabilizer type/shape (Fig. 6a, Fig. 6b).
Safety cable and some electrical wires not shown.

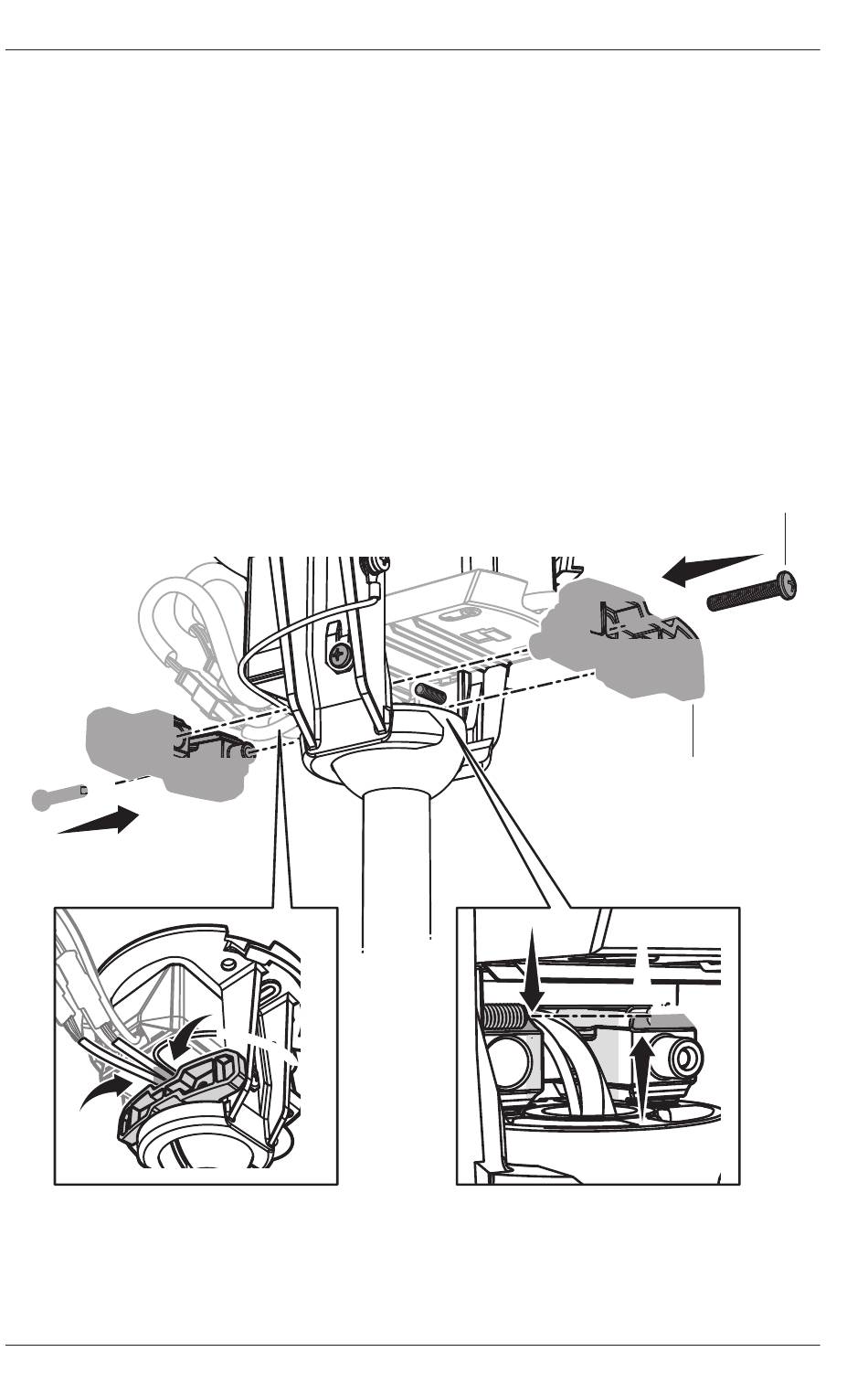

Fig. 6a
M4 x 25 mm
Screw
Fan Stabilizer
Block
Route wires and safety cable from Control box tray screws should sit
downrod through wiring channel in in notches on top of stabilizer.
stabilizer.
