CONTROL BOX REPLACEMENT
2. Remove fan stabilizer (if applicable)

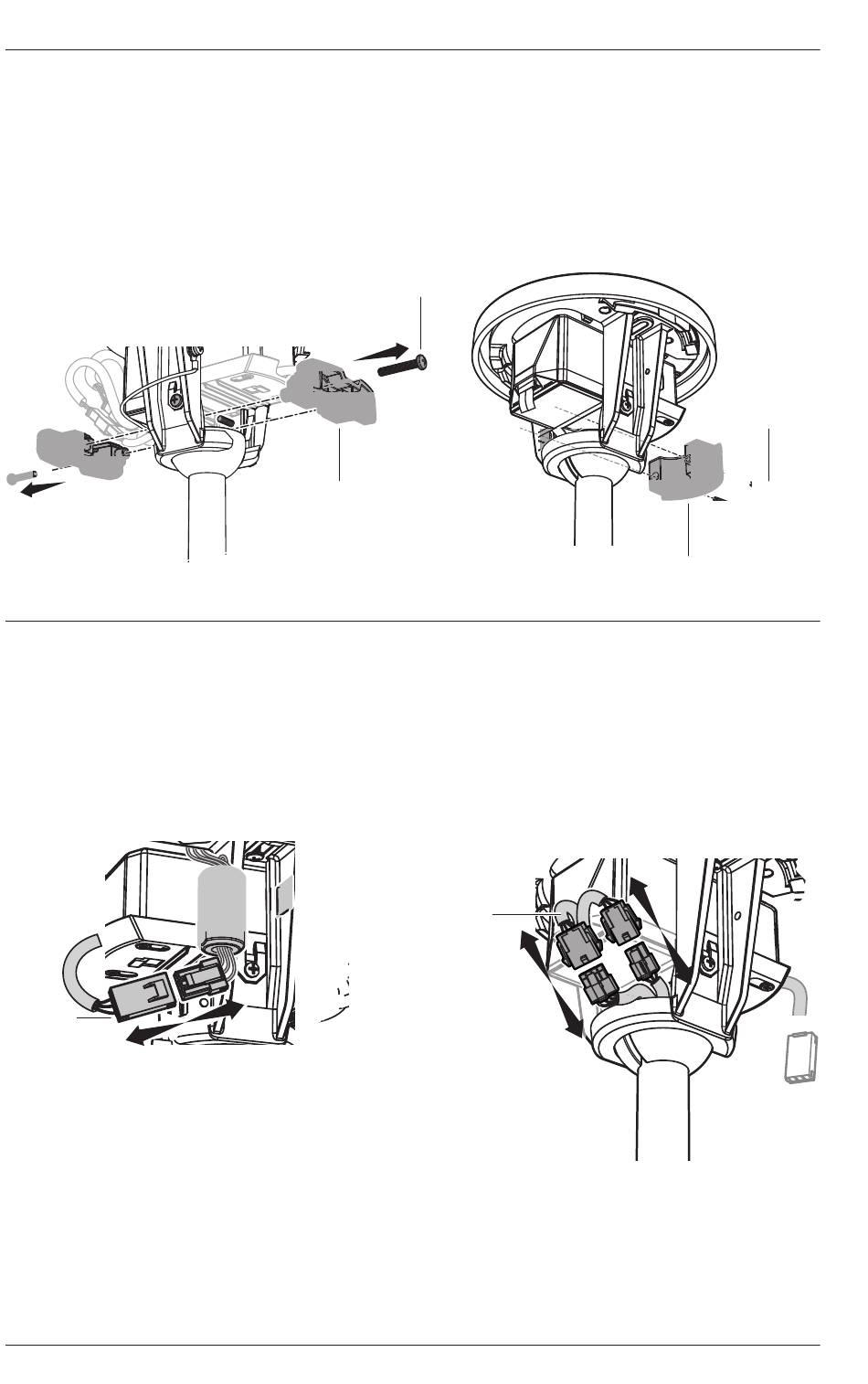

If your fan has a fan stabilizer, remove the two stabilizer screws and the two fan
stabilizer blocks from between the control box tray and mounting ball (Fig. 2a, Fig. 2b).
Save the stabilizer and screws for reinstallation.
Fig. 2a Fig. 2b
M4 x 25 mm
Screw
M3 x 20 mm
OR Screw
Fan Stabilizer
Block
Fan Stabilizer
Block
3. Disconnect wiring harnesses
Disconnect wiring harnesses on front (Fig. 3.1) and back (Fig 3.2) of control box. Note:
Wiring harness appearance may differ slightly from the illustrations.
Fig. 3.1 Fig. 3.2
Wiring
Harnesses
Wiring
Harnesses
