13. Using gloves, unstretch the 6" diameter flex venting from
the SD6DFA25 Flex Vent kit.
Due to sharp edges and the weight of the assembly,
please use proper eye protection and gloves to reduce
the potential for injuries.
BAND CLAMP
(INCLUDED IN HMFA KIT)
BAND CLAMP
(INCLUDED IN HMFA KIT)
42724-0-1120
All manuals and user guides at all-guides.com
CAUTION
FLEX VENT KIT - SD6DFA25
(NOT INCLUDED IN HMFA KIT) INCLUDES
25' FOOT OF FLEX WITH (2) CLAMPS
BAND CLAMP
(SD6DFA25 KIT)
6" DIA. 3-WAY
"Y" CONNECTOR
Empire Comfort Systems Inc. • Belleville, IL
14. Measure and cut the length for the two flex vent sections
that attach from the fireplace collars to the "Y" adapter
installed in step 10. Secure each flex vent section to the
collars on top of the fireplace with a 7" diameter gear
clamp. See Figure 12.
15. Attach and secure the "Y" adapter to the two flex sections
coming off the fireplace with 7" diameter gear clamps.
See Figure 12.
6" FLEX
ADAPTOR
SELF DRILLING
SCREWS (3) PLACES

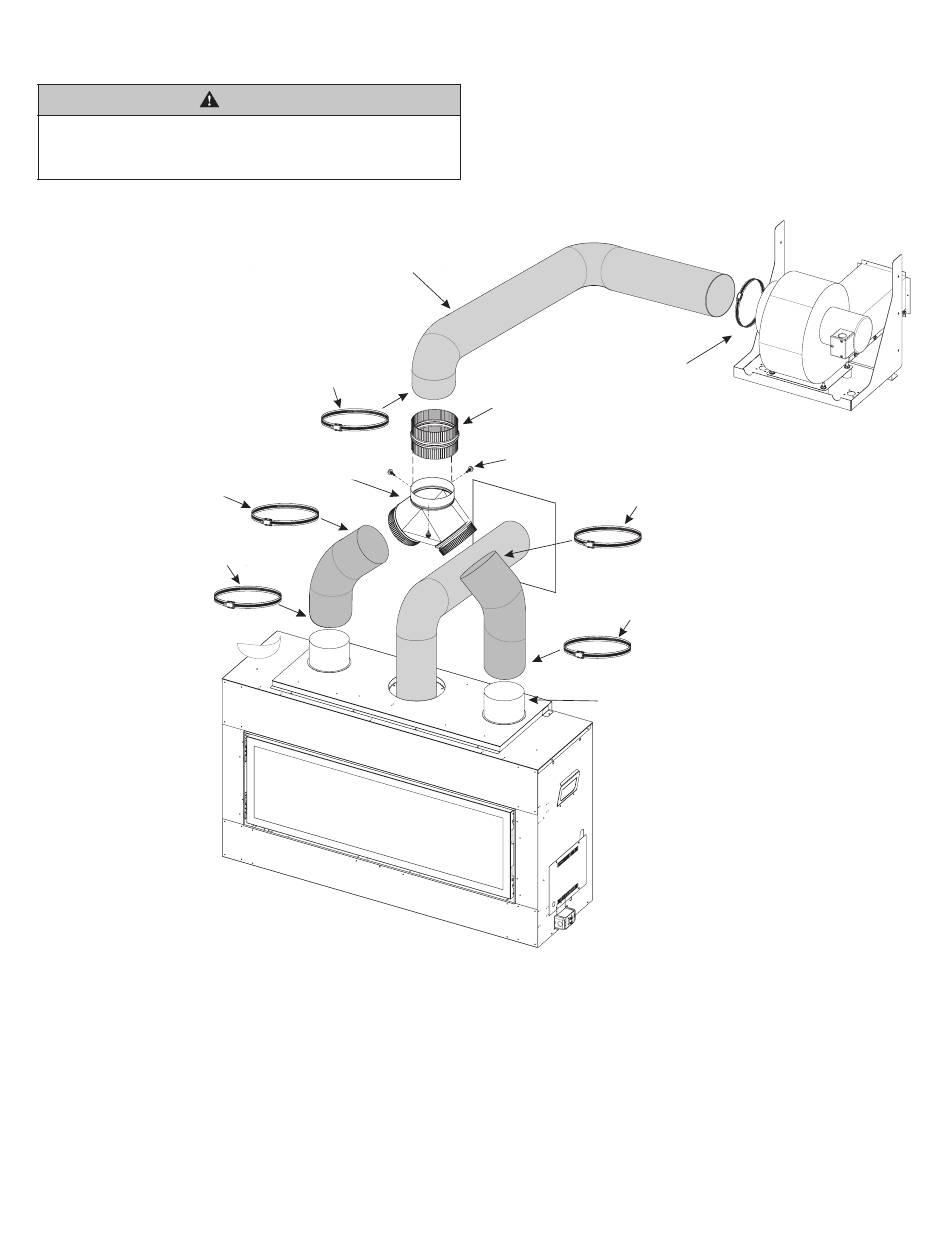

Typical Installation
Figure 12
BAND CLAMP
(SD6DFA25 KIT)
BAND CLAMP
(INCLUDED IN HMFA KIT)
BAND CLAMP
(INCLUDED IN HMFA KIT)
STARTING COLLAR
(2) PLACES
Page 9
