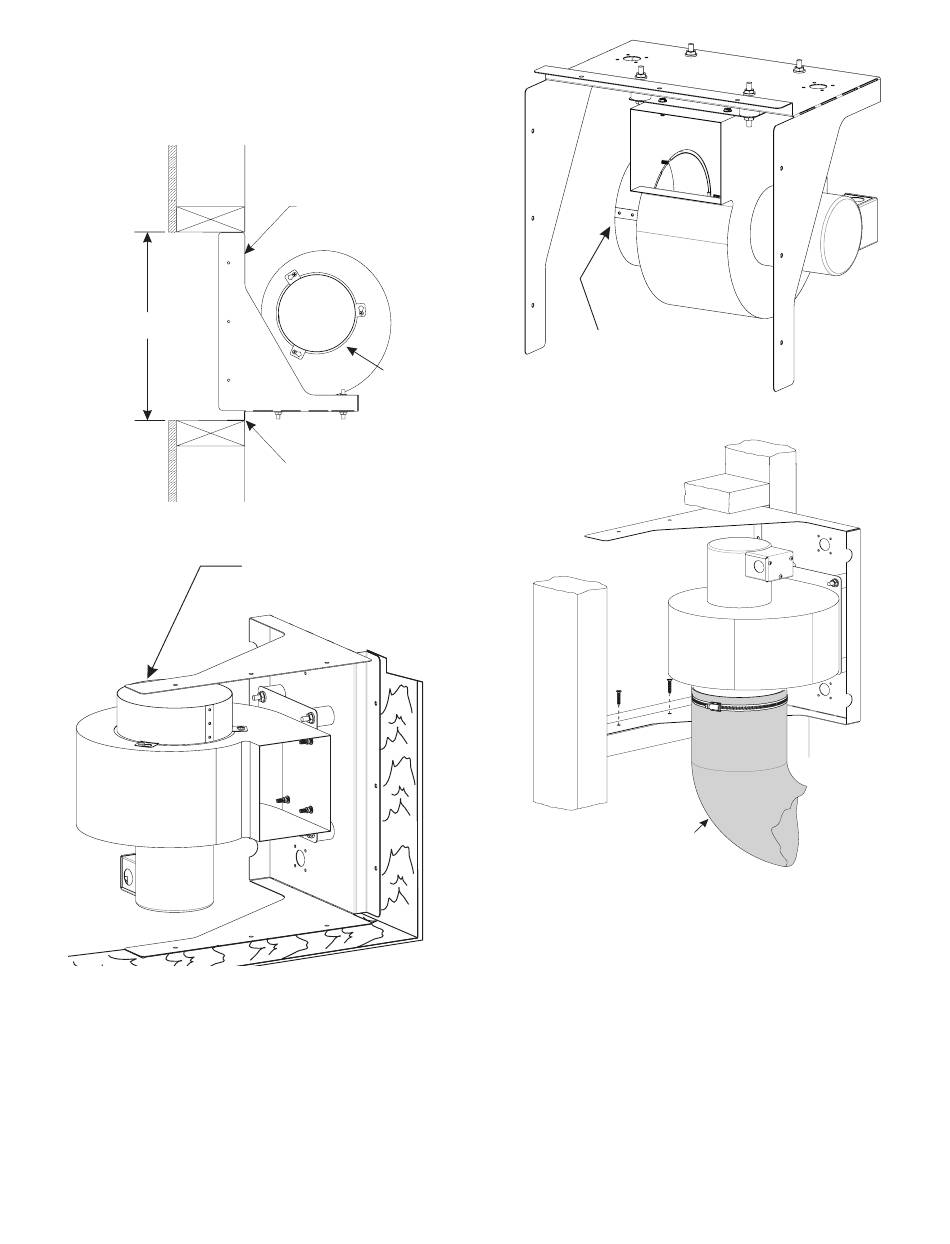

5. Once the framing is completed, install the Blower & Base
assembly as shown in Figures 5a - 5d. The Blower &
Base assembly can be installed in the wall in any of four
positions which allows flexibility of the venting connection
to the blower.
