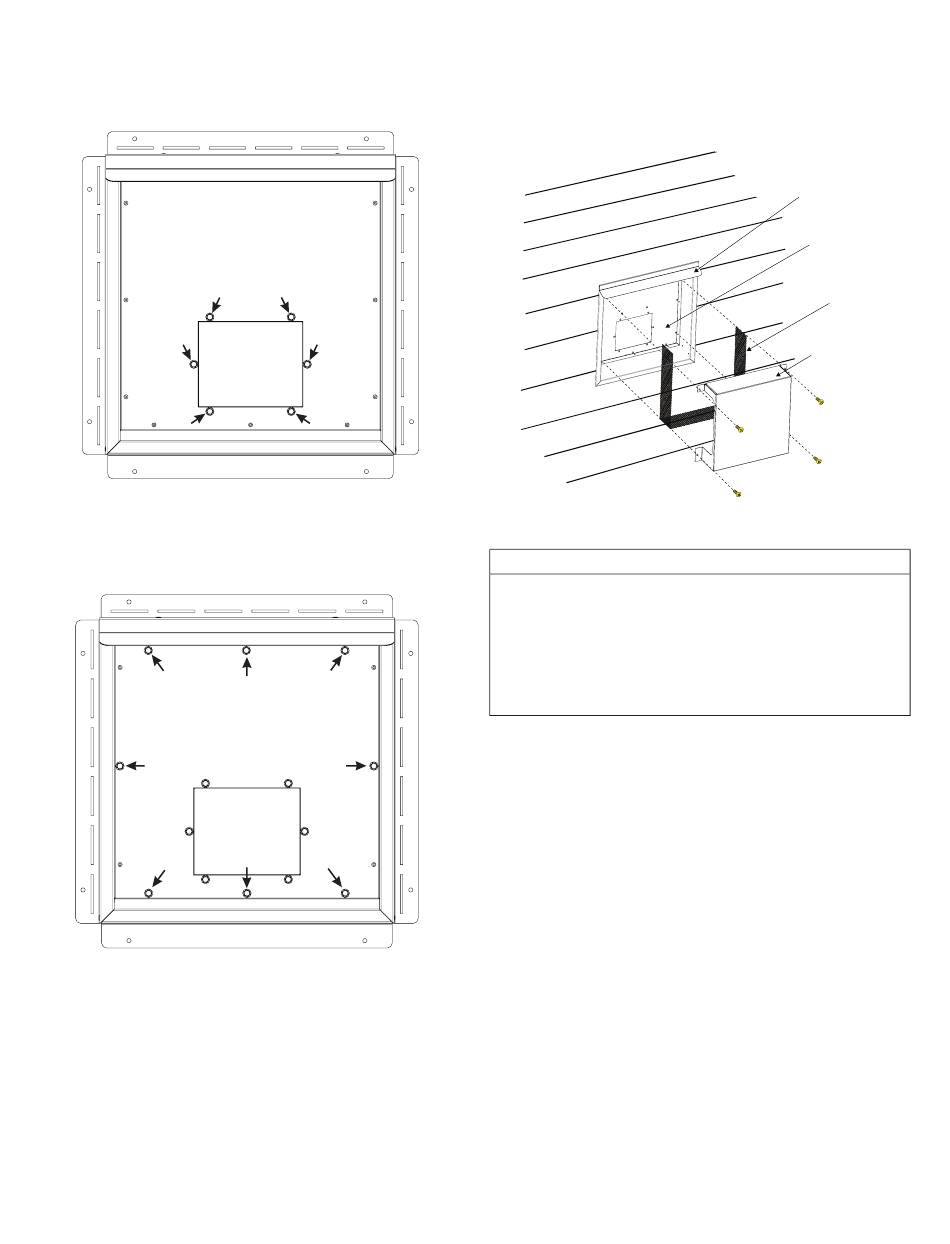

25. Install the Termination Back Plate by aligning the large
rectangular hole with the Air Duct. Using (6) # 10 X
½" screws, secure the Back Plate to the Air Duct. See
Figure 20.
Figure 20
26. Secure the Back Plate to the Outer Termination with (8)
# 10 X ½" screws. See Figure 21. Do not install the
upper and lower side screws at this time.
Figure 21
Page 12
All manuals and user guides at all-guides.com
27. To install the Outer Cover and Screen, place the "U"
Empire Comfort Systems Inc. • Belleville, IL
shaped screen inside the Outer Cover, then place the
Outer Cover into the Outer Termination frame. Using (4)
# 10 X ½" screws, secure the Outer Cover to complete
the installation. See Figure 22.
Figure 22
FINISHING
The Outer Termination Assembly is designed to allow
exterior combustible finishing materials to be installed
around the outer edges of the termination. This provides
for J-channel, or other siding materials to be installed up
to the termination face. It is the installer(s) responsibility
to caulk or seal around the termination to prevent water
leakage to the building envelope.
