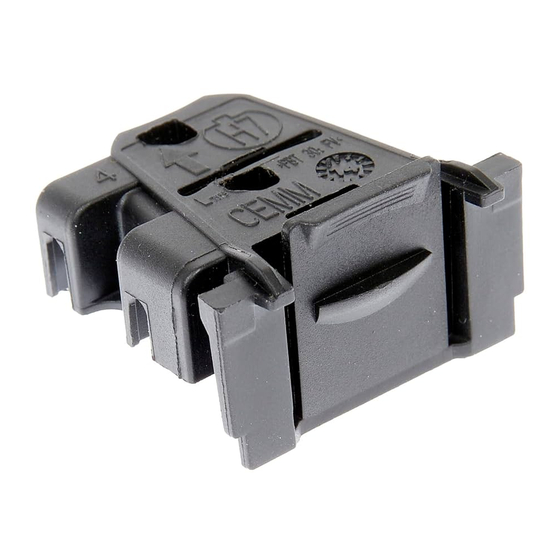

HEADLIGHT
SOCKET
86550
BEFORE YOU BEGIN:
• Always wear proper safety
equipment when performing repairs.
• Ensure at your point of purchase
that this part fits your exact
vehicle configuration.
• Reference the appropriate service
manual for your vehicle. If you do
not have a service manual, and do
not have the training or experience
to perform the necessary
procedures correctly, seek the
services of a qualified technician.
NEED HELP?
Please call our Technical Support
team for assistance from our team of
certified automotive experts.
1-866-933-2911
© 2024 No reproduction in whole or in part without prior written approval.
86550_Instructions
INSTRUCTIONS
STEP 1:
Remove headlight assembly from vehicle.
Remove high and low beam access doors.
Remove low beam headlight retainer. For
more working harness length, route through
high beam access door. Remove bulb from
harness.
STEP 2:
Using a pick or slotted screwdriver, remove
the harness retaining spring for reuse.
STEP 3:
Using a pick or slotted screwdriver,
remove each wire and reinstall into the
new connector, noting proper terminal
orientation.
NOTE: It may be useful to use a
marker to make a small indication on
wires to note position.
Dorman Products, Inc. Corporate Office and Customer Service: 1-800-523-2492.
Disclaimer: It is impossible in these instructions to account for all possible circumstances or situations that you may experience when at-
tempting to install this product. Please consult with a qualified auto technician before attempting to perform any work you are not qualified to
do. Automobiles can be hazardous to work on; be sure to take all necessary safety precautions. Failure to do so may result in property damage
or personal injury. Certain motor vehicle standards and performance requirements may apply to your motor vehicle (such as Federal Motor
Vehicle Safety Standards by the National Highway Traffic Safety Administration). Be sure that your work is performed in accordance with such
standards and that you do not disable any motor vehicle safety feature.
STEP 4:
Install new headlight socket by pushing both
wiring connectors in the same positions
used on the original socket until they click
into place. Make sure they go in all the way
and lock, seating flush with the socket
surface.
NOTE: The high beam assembly
can be used as a reference
for reassembly.
STEP 5:
Install original harness retaining spring
into new socket. Reinsert the repaired
socket through the high beam access door
and close door. Insert bulb into harness.
Use a soft cloth to wipe bulb clean before
installing into headlamp housing.
STEP 6:
Reinstall headlamp bulb. Close low beam
access door.
