3.5.

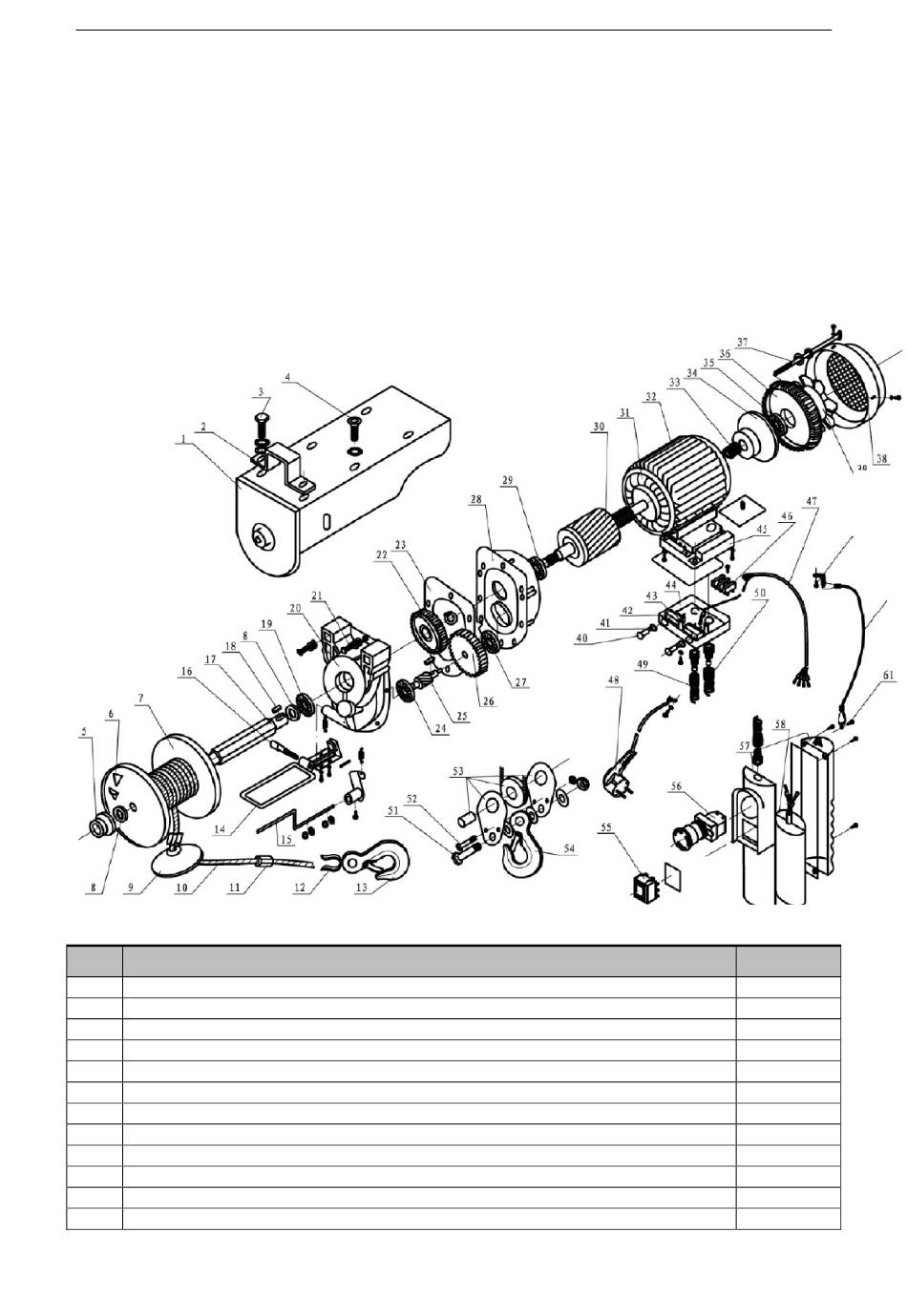

Assembly drawings
Electric winch:
No.
1
2
3
4
5
6
7
8
9
10
11
12
EN
Description
Side plate
Mounting hole
Hexagonal head screw
Socket head screw
Bearing
Mounting pin
Cable drum
Drum pad
Limit lock
Steel cable
Carrying cable mounting sleeve
Cable fastening ring
Quantity
1
2
4
2
1
2
1
2
1
1
2
1
