Preparation for operation
WORKING ENVIRONMENT CONDITIONS
CAUTION! Do not use the device in corrosive environments and environments with an
explosive atmosphere!
ENVIRONMENT CONDITIONS" when working with the unit!
Ambient temperature [°C]
Relative humidity [%]
Altitude [m above sea level]
Transport and storage temperature [°C]

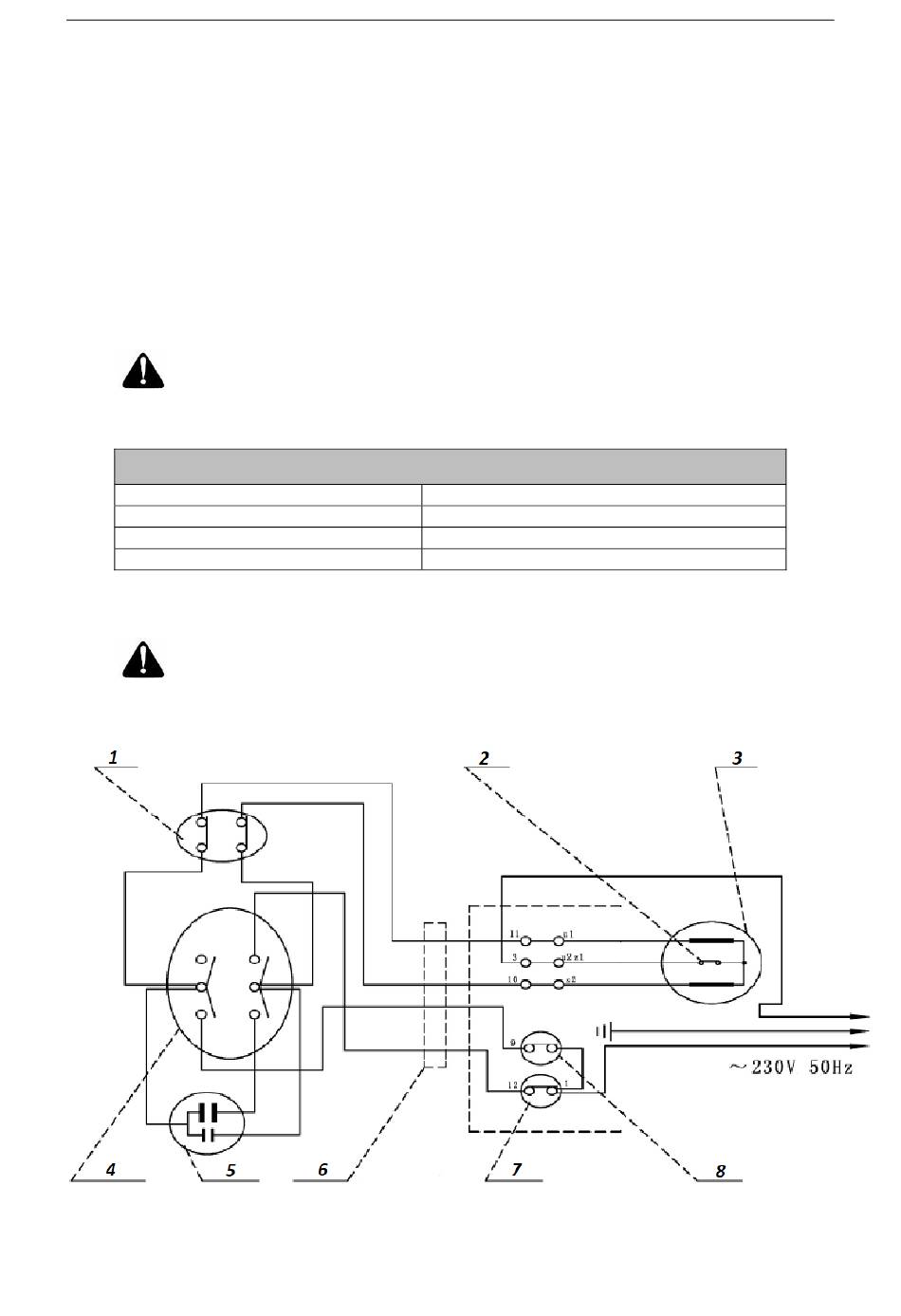

WIRING DIAGRAM
CAUTION! The electrical system to which the unit is connected should be equipped with a 10 A
fuse or a 10A overcurrent circuit breaker.
ELECTRIC WINCH
EN
13 - Emergency shutdown button
CONTROL BUTTON:
14 - Up
15 - Down
16 - Left
17 - Right
Always follow the environmental requirements listed in Tab. "WORKING
WORKING ENVIRONMENT CONDITIONS
1 - Emergency shutdown
0 ~ 40
< 85
< 1000
-25 ~ 55
