angled position, lift the pin out and turn the equipment. (see Illustration 1 and 2)
Illustration 1

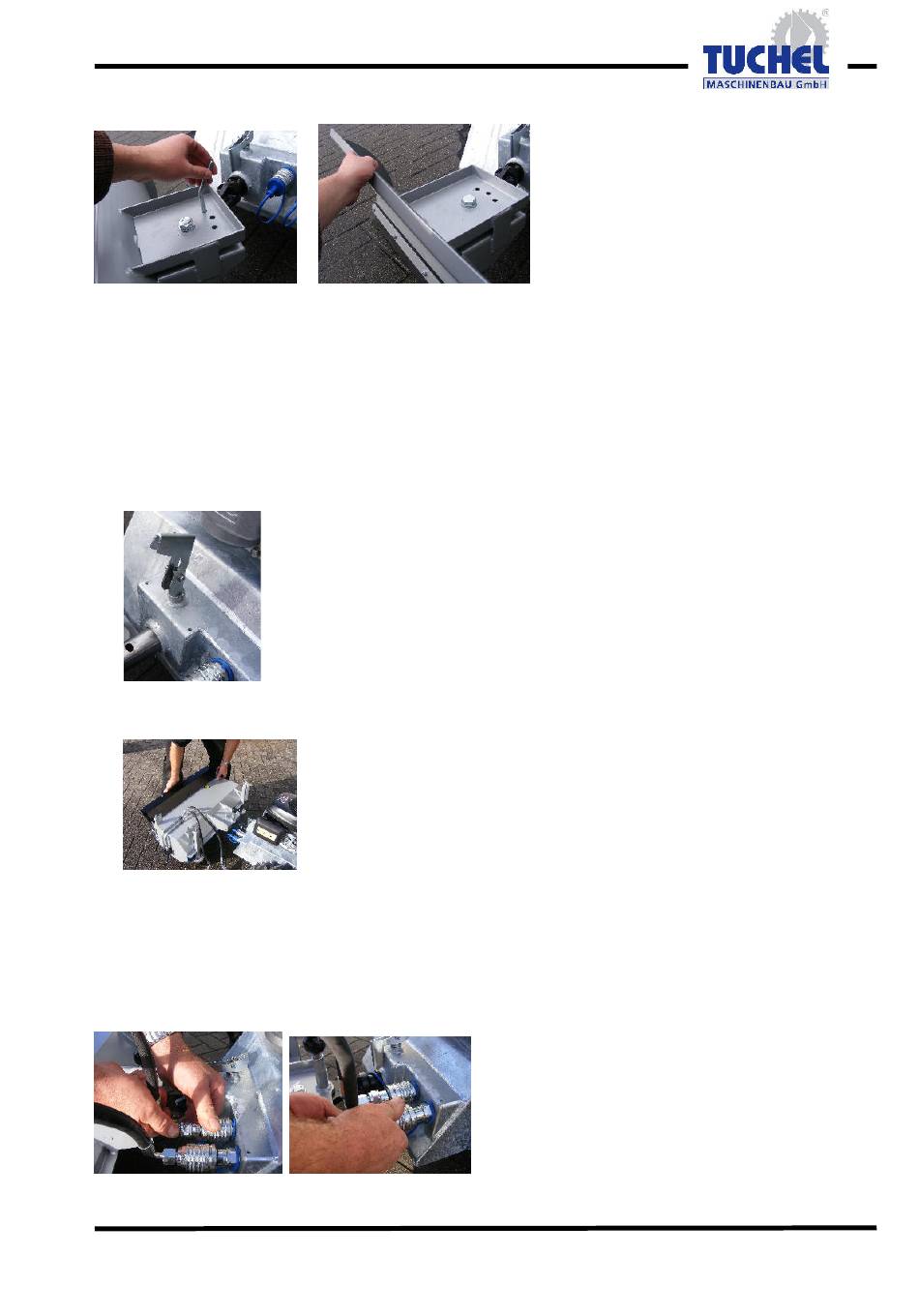

5.4 Axial sweeping unit
5.4.1 Mounting of the Axial sweeping unit
Take the following steps to attach the Snow plough to the machine.
When you (de)couple a tool unit, make sure that the stand is pulled out first.
1.
Install the handle as below. Slide the connection point of the sweeping unit into the sleeve on the front side of the
machine.
Illustration 1
2. Slide the connecting point of the sweeping unit through till the end.
Illustration 2
3. Lower the handle after that. If the pin does not lower completely, slightly turn the sweeper unit until the pin lowers.
The hydraulic hoses must also be connected to the machine.
A distinction is made between two different connection points, attached to the hoses
on the sweeping unit. The machine also has two different
connection points.
Take hold of the hydraulic coupling and slide the covering all the way back to attach the hydraulic hoses.
Illustration 3
The blue protection caps should be coupled together as below. (to prevent the entrance of dirt)
26
Farm-Clean
Illustration 2
Illustration 4
Tuchel Maschinenbau GmbH
