INSTALLATION INSTRUCTIONS

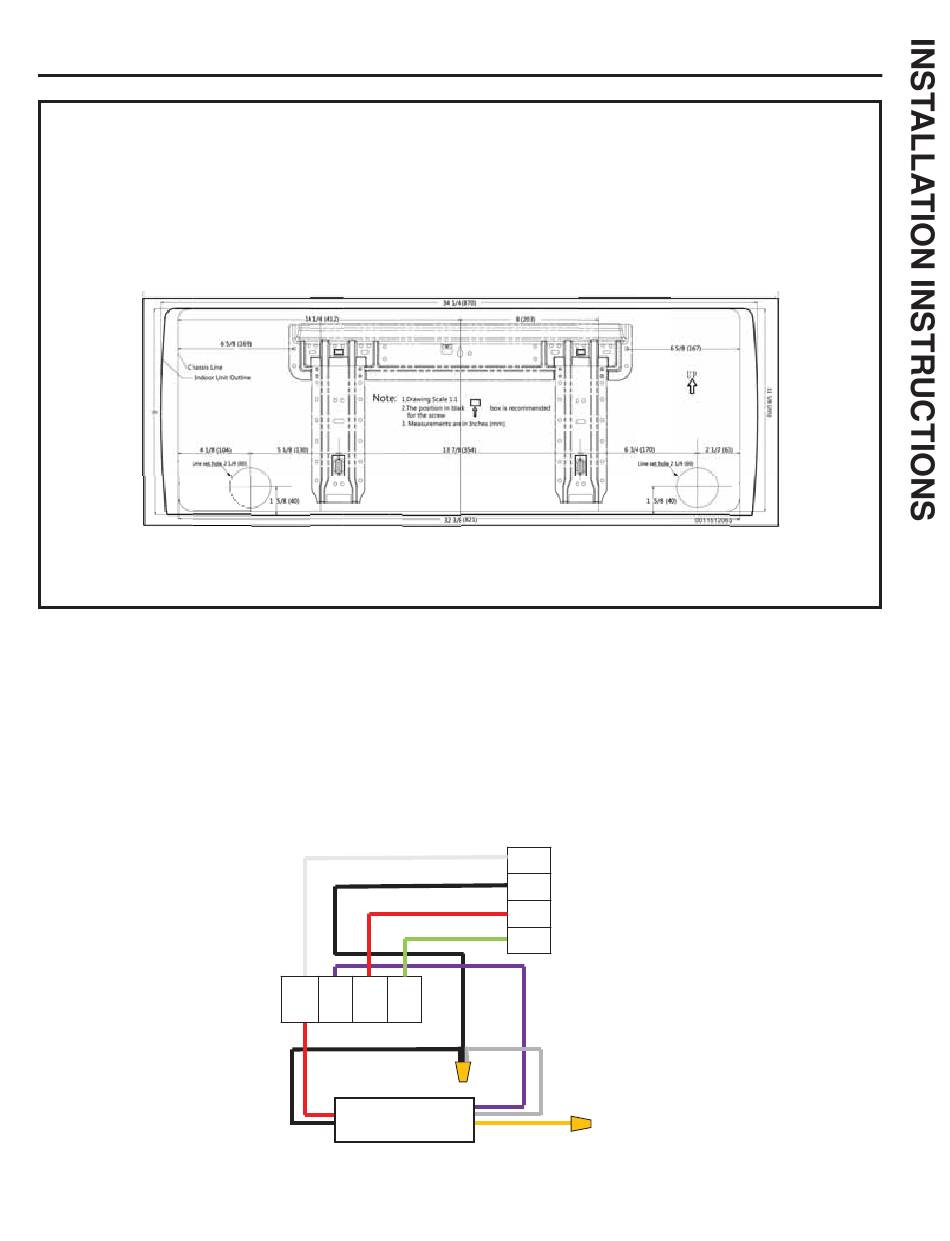

Wall Brackets
A cardboard template for the mounting plate is included with many of the indoor units. It serves as an easier way
of determining where to mount the wall bracket and where to cut the hole for piping.
When mounting the unit, use a stud finder to secure the upper-most holes to the structure of the building. Use
load rated anchors to attach other portions of the bracket to the wall.
Step 3 - Installation of the Outdoor Unit
Please refer to outdoor installation manual in outdoor carton.
Step 4 - Safety Switch Control Wiring
If a condensate flood switch is required, follow sample wiring diagram.
31-5001074 Rev. 0
EXAMPLE
L1 WHITE
L2 BLACK
COM M UNICATION
GROUND
1
2
3
G
(N)
(L)
(C)
RED
Sw itch
BLACK
Outdoor
1(N)
2(L)
3(C)
G
PURPLE (N/ C)
GRAY (COM )
ORANGE (N/ O)
17
